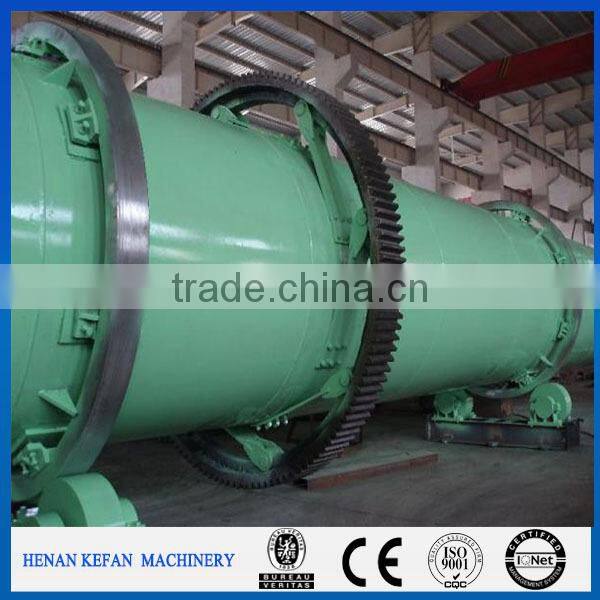

High-efficiency Low power Rotary Drum Dryer Machine for coal powder, slag, clay stone
High-efficiency Low power Rotary Drum Dryer Machine for coal powder, slag, clay stone:
1.High thermal efficiency
2.Energy saving
3.Low power.
Widely used application:
High-efficiency Rotary drum dryer/drying machine,widely used from Ruiyuan Company can be used in building materials, metallurgy, chemical industry, cement plant for drying of limestone slag, coal powder, slag, clay stone,etc. Meanwhile, rotary drum dryer applies to all kinds of water less than 85% of the dry material residue worse, for the open feed resources, reduce production costs, reduce environmenal pollution has a good effect.
High efficiency Rotary drum dryer/drying machine, widely used composition:
High-efficiency Rotary drum dryer/drying machine,widely used is formed of rotary body, lifting blade, driving device, supporting device and
sealing ring.
advantages:
High-efficiency Rotary drum dryer/drying machine,widely used has advantages of reasonable structure, high efficiency, low energy consumption and convenient transportation.
High-efficiency Rotary drum dryer/drying machine,
widely used working principle:The material first go into the inside drum, because there are the spiral shape boards
fixed in the drum, when the rotary drum dryer make rotary working, the spiral shape
board will stir the material and make the material do longitudinal movement, when the
material reach the right side of the drum, under gravity effect, the material go into the
second drum, because of director plate device, the material go into the second drum,
and the same work principle, the material go into outside drum, in the drying working
process, the material make three times drying, so the material can be dried completely.
The Main Technical Parameters of Rotary drum dryer/drying machine:
Model (mm) | Gradient ( % ) | Speed (r/min) | Inlet air temperature( °) | Power (kw) | Capacity(t/h) | Weight (t) |
Φ600×6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
Φ800×8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
Φ800×10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
Φ1000×10000 | 3-5 | 3-8 | ≤700 | 5.5 | 1.0-3.5 | 5.6 |
Φ1200×10000 | 3-5 | 3-8 | ≤700 | 7.5 | 1.8-5 | 14.5 |
Φ1200×12000 | 3-5 | 3-8 | ≤700 | 11 | 2-6 | 14.8 |
Φ1500×12000 | 3-5 | 2-6 | ≤800 | 15 | 3.5-9 | 17.8 |
Φ1800×12000 | 3-5 | 2-6 | ≤800 | 18 | 5-12 | 25 |
Φ2200×12000 | 3-5 | 1.5-6 | ≤800 | 18.5 | 6-15 | 33 |
Φ2200×14000 | 3-5 | 1.5-6 | ≤800 | 20 | 8-15 | 41 |
Φ2200×18000 | 3-5 | 1.5-6 | ≤800 | 22 | 10-18 | 53.8 |
Φ2200×20000 | 3-5 | 1.5-6 | ≤800 | 30 | 12-20 | 56 |
Certification of Rotary drum dryer/drying machine:
