ISO approved industrial rotary dryer price
Rotary dryer adds crushing devices based on the traditional rotary dryer structure, which
can not only break materials,but also improve the thermal efficiency of drying machine.It can even deal with crumb, high moisture sticky materials, paste material and liquid materials.
It is applicable to the chemical industry, brewing, pharmaceutical industry, fertilizer, etc.
Working Principle
Based on the traditional structure of the rotary drum dryer,the scattered rotary cylinder dryer adds scatter device along the axis of the cylinder. After added into the cylinder. Firstly,the material is hit,broken by the device in the process of falling,and then,it is repeatedly grabbed, lift ,fallen and beaten. The surface area of the shattered materials increased rapidly, and contact with hot air sufficiently to transfer heat and mass .Finally,it meets the drying requirements.
Performance Characteristics
A.Large capacity ,continuous and stable operation;
B.high flexibility in operation.
C.Rotary speed and scattering device speed can be adjusted, and can meet the requirements of
different materials;
D.It can meet the drying requirement by choosing different structure forms the copy board
E.Because of the crushing effect on material scattering device,the heat efficiency is improved .
Adapted materials
Rotary dryer can be widely used in drying process brewery,pharmaceutical factory,sugar,soy
sauce and vinegar factory,food factory,farm,sewage treatment plants and high waste and a variety of chemical raw materials.
Application: beer lees, distiller's grains, distiller's grains,antibiotic residue,peat,chicken manure,live the red mud,silt, sugar,PVC,inorganic salt,compound fertilizer, cement raw material,clay,starch,organic powder materials,coal,ore,quartz sand.

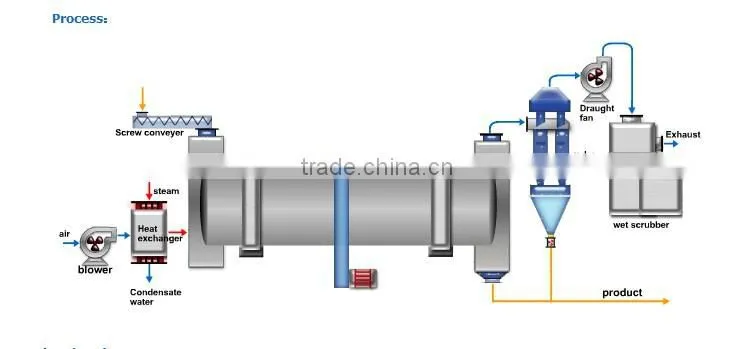

Process:
Product parameters:
| Capacity(t/h) | Main motor | Main gear box | Weight(t) | ||
Power(kw) | Model | Model | Speed reduction ratio | |||
1.2*10 | 2.5 | 7.5 | Y160M-R3 | ZL50-16-I | ----- | 13.5 |
1.5*12 | 3.3-4.9 | 10 | Y160L-6-B3 | JZQ500-III-2F | ----- | 18.9 |
1.5*15 | 4-6 | 18.5 | Y200L1-6 | JZQ500-III-2F | ----- | 21 |
1.8*12 | 4-6 | 18.5 | Y160L-6 | ZQ50-16II-2 | 16.46 | 22.83 |
2.2*12 | 7-12 | 18.5 | Y200L7-6 | JZQ650-III | 31.5 | 37.6 |
2.2*14 | 7-12 | 22 | Y200L7-6 | JZQ650-III | 31.5 | 40 |
2.2*16 | 12 | 30 | Y225M-6 | JZQ750-III | 31.5 | 45 |
2.4*14 | 12 | 30 | Y250M-6 | JZQ750-III | 31.5 | 51 |
2.4*18 | 10-13 | 37 | Y250M-6 | ZL85-13-I | 27.16 | 54 |
2.4*20 | 10-14 | 37 | Y250N-6 | ZL85-13-I | 27.16 | 54.14 |
3*20 | 25 | 55 | Y250M-4 | ZL100-16-I | 41.52 | 78 |
3*25 | 32-36 | 75 | YR280M-4 | ZL100-16-I | 41.52 | 104.9 |
Certification:
