Kefan Ball Mill Feeder in Machinery for Sale

Kefan Ball Mill Feeder in Machinery for Sale thumbnail-1
Kefan Ball Mill Feeder in Machinery for Sale photo-1
US$ 1,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, new
Application:
water consevancy & electricity,mining,building-materials,etc
Power Type:
Electric
Contact Supplier Request Quote Chat Now
Henan Kefan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
nearest port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application water consevancy & electricity,mining,building-materials,etc
Power Type Electric
Capacity(t/h) 50-80 t/h
Place of Origin Henan, China
Brand Name Kefan
Model Number GZD
Power(W) 1.5*2 kw
Dimension(L*W*H) 2580*1430*600 mm
Weight 1.29 t
Certification BV/CE/ISO
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

ball mill feeder
1) Removable and adjustable grizzly bars;
2) Enclosed oil-bath lubrication;
3) CE,ISO9001:2008.

Kefan ball mill feeder in machinery for sale

GZD series ball mill feeder adopted vibrating motor as exciter, which is generally installed in front of the primary crusher, conveys big blocks continuously and evenly while removing the dirt and impurities by screen bars, As necessary equipment, it can effectively control the feeding capacity to match with the capacity of the whole crushing plant. It features are strong construction, easy to maintenance and operation. They are widely used in water consevancy & electricity,mining,building-materials,silicate and chemical industry in the crushing and screening plants.

Kefan ball mill feeder in machinery for sale

Advantages of ball mill feeder :
1, Heavy-duty, durable,all-welded body construction;
2, Removable and adjustable grizzly bars;
3, Variable speed by electric or electro/hydraulic drive;
4, Enclosed oil-bath lubrication;

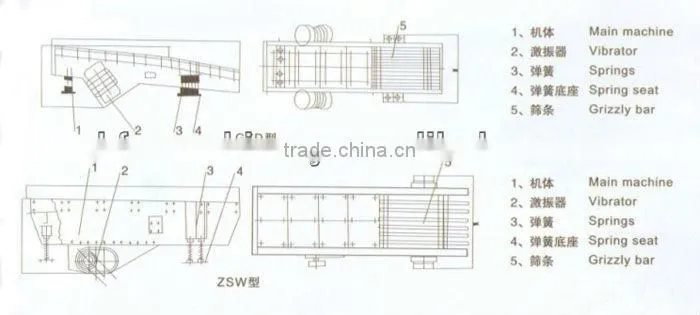

Structure of ball mill feeder :

Kefan ball mill feeder in machinery for sale

Technical parameters of ball mill feeder :

Model Hopper Size(mm) Max.Feed Size(mm) Capacity(t/h) Eccentric Shaft
Rotate Size(r/min)		 Motor Power(KW) Weight(t) Overall Dimensions(mm)
GZD-250*75 2500*750 300 50-80   1.5*2 1.29 2580*1430*600
GZD-300*90 3000*900 450 80-100   3.0*2 2.96 3064*1580*1414
GZD-370*100 3700*1050 500 100-150   3.7*2 3.7 3980*1878*866
GZD-490*110 4900*1100 580 120-280   5.5*2 4 5200*1900*1200
GZD-500*120 5000*1200 600 200-400   5.5*2 5.2 5450*2000*1300
ZSW-350*96 3800*960 500 100-160 500-720 11 4.21 3882*1684*1340
ZSW-490*110 4900*1100 580 120-280 500-800 18.5 5.41 4957*1841*1365
ZSW-590*110 5900*1100 600 200-350 500-800 22 6.05 6000*1841*1365
ZSW-600*130 6000*1300 600 400-560 500-800 22 7.5 6082*2040*1580
ZSW-600*150 6000*1500 800 400-700 500-800 37 8.5 5955*2210*1510

 Kefan ball mill feeder in machinery for saleKefan ball mill feeder in machinery for saleKefan ball mill feeder in machinery for saleKefan ball mill feeder in machinery for sale
