Steel Ball Coal Mill for Hot Sale

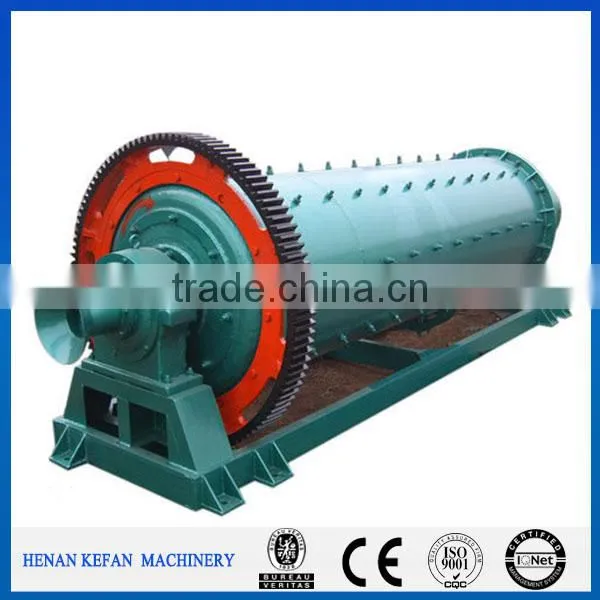

Steel Ball Coal Mill for Hot Sale photo-1
US$ 1,000 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 280 kw
Capacity(t/h) 12
Place of Origin Henan, China
Brand Name Henan Kefan
Model Number 2.2*4.5+2
Dimension(L*W*H) 2.2*4.5+2
Weight 70.323t
Certification ISO/CE/BV
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas



steel ball coal mill

steel ball coal mill for hot sale





steel ball coal mill applications:
steel ball coal mill is the key equipment to crush again after materials are broken.Cement mill is widely used in cement,silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics industry,etc.It can dry or dry grind a variety of ores and other grind-able materials.

steel ball coal mill working principle:
steel ball coal mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

steel ball coal mill structure:
steel ball coal mill is composed of feeding parts,discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control),etc.Hollow axis adopts the cast steel,lining can be replaced,rotary rack wheel adopts casting gear for process,in the barrel beset with wear-resisting liner,it has good abrasion resistance.The machine runs smoothly,work reliably.

Note: steel ball coal mill is used to grind cement raw materials,which is divided into dry method and wet method.



steel ball coal mill for hot sale



steel ball coal mill technical parameters:



Number Model Speed In to mill size Grounding size Effective volume Driver way Nain power Main speed machine Weight Production
1 1.7*2.5 24.5 ≤25 7.5 5.1 edge JR116-6 95KW 380V ZD40-4.5 19.436 3-5
2 2.2*3 22 13 10.4 JR136-8 18 0KW 380V ZD50-4.87 31.48 5-6
3 2.2*4.4 22     YR355-6/220 ZDH50 46 8-9
4 2.4*4.75 20.4 22 19.25 YR400-8 280KW 6KV ZD60-4.5 49.3 12
5 2.4*(4.5+2) 20.4 22.6 18.25 YRKK500-8 280KW 10KV JD450-4.5 70.323 12
6 2.6*(4.8+2) 20     YRKK5002-8/400 RZD75 91 9-10
7 2.6*(5.25+2.25) 19.7     YRKK500-8/400 ZDY400-4.5-11 98 13-14
8 2.8*(5+3) 18.9     JRQ1512-10/480 MCD-70 107 16-17
9 2.8*5.75+2.25 18.7 38 32.9 YRKK560-8 500KW 10KV MBY630-4.5 1160.313 18-20
10 2.9*4.1 18.8 35 27.1 JRQ1510-8 475KW 6KV JDX560-5 73.997 16
11 3*6.5+2.5 18.4 46.5 43.3 YRKK560-6 710KW 10KV JDX630-6.3 118.3 20
12 3*9 18.3     YBKK560-8/630 MBY560 124 18-20
13 3.2*9.5 17     YR800-8/1180/800 NFM710 140 28
14 3.4*7.5+1.5 17.5 70 64.1 YR800-8/1180 800KW 6KV JDZ710-6.3 160 30-38
15 3.4*(5.25+2.8) 17.47     YRKK-56-6/900 JDX-800 169 30
16 3.8*7+2.5 16.4 80 75 YKK6304-8 1250KW 6KV MBY710-5.0 175.374 38
17 3.8*(7.25+3.5) 16.7     YR630-8/1400 MBY800 220 41-43







Our Services



1) Pre- sales service:    We could recommend suited models and factory price according

to your demands warmly;

2) Sales service: Talk the details with you patiently;

3) After- sales service:  We will provide 2 years warranty so that  steel ball coal mill can runs consistently.



 steel ball coal mill for hot sale







steel ball coal mill for hot sale

steel ball coal mill for hot sale





Packaging & Shipping

 steel ball coal mill for hot sale



Company Information

steel ball coal mill for hot sale

steel ball coal mill for hot sale



steel ball coal mill for hot sale



Henan Kefan Mining Machinery Co., Ltd is a modern and high-tech enterprise established with a state level research. It is located in the HI-TECH industry development zone in Zhengzhou, covering above 35 thousand square meters including several subsidiaries. Since established in 1980,We have passed ISO9001:2008 quality system authentication and CE certificate.We are also a state-level quality management standard reaching ennterprise, member of China Brick&Tile Association and member of China Sand Association, the company has been taking the scientific management method of the modern enterprise, producing with meticulous care and non-stop creation and developing to become a bright pearl and pacemaker of the mechanical industry in our country.



  We welcome customers from home and abroad to visit our company and carry out cooperation!
