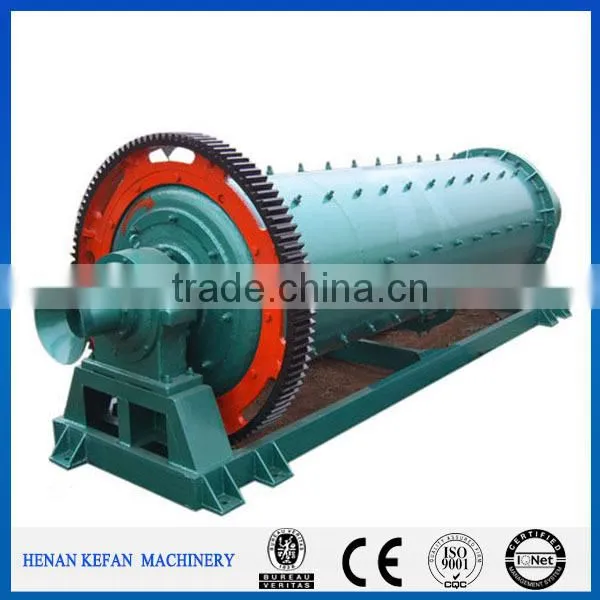

Fan-type Vetical Cement Ball Mill

Fan-type Vetical Cement Ball Mill thumbnail-1
Fan-type Vetical Cement Ball Mill photo-1
US$ 1 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Contact Supplier Request Quote Chat Now
Henan Kefan Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Ball Mill
Motor Type AC Motor
Power(W) 630 kw
Capacity(t/h) 19-21
Place of Origin Henan, China
Brand Name Henan Kefan
Model Number 2.4*11
Dimension(L*W*H) 2.4*11m
Weight 99.2 t
Certification ISO/CE/BV
Warranty 2 years
After-sales Service Provided Engineers available to service machinery overseas

Specifications

cement ball mill
1)With wear-resisting liner
2)Working smoothly and reliably
4)Easy maintenance
1)CE/ISO





Product Description







  cement ball mill

Fan-type vetical cement ball mill



  cement ball mill applications:
  cement ball mill is the key equipment to crush again after materials are broken.Cement mill is widely used in cement,silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics industry,etc.It can dry or dry grind a variety of ores and other grind-able materials.

  cement ball mill working principle:
  cement ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.

  cement ball mill structure:
  cement ball mill is composed of feeding parts,discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control),etc.Hollow axis adopts the cast steel,lining can be replaced,rotary rack wheel adopts casting gear for process,in the barrel beset with wear-resisting liner,it has good abrasion resistance.The machine runs smoothly,work reliably.

Note:  cement ball mill is used to grind cement raw materials,which is divided into dry method and wet method.



Fan-type vetical cement ball mill



  cement ball mill technical parameters:

Model (m) Production Capacity (t/h) Ball Mill Form Drive Form Power (kw) Reducer Weight (t) Note
Model Speed Ratio
2.2*7m 8-9 Open flow fringe 380 ZD70 5 54
2.2*7.5m 10-11 Open flow fringe 380 ZD70 5 63
2.2*8m 10-12 Open flow fringe 380 ZD70 5 65
2.2*9.5m 14-16 Open flow fringe 475 ZD70 5 70
2.4 *10m 18-19 Open flow fringe 630 JR75 5.64 94.5
2.4*11m 19-21 Open flow fringe 630 RZD80 6.3 99.2
2.4*13m 21-23 Open flow fringe 800 MBY710 7.1 115.2
2.6*13m 28-32 Open flow fringe 1000 MBY800 7.1 148
2.6*13m 28-32 Open flow fringe 1000 MFY100 19.5 101.73 (without motor)
3*12m 32-35 Open flow fringe 1250 MBY900 7.1 168.6
3*13m 34-37 Open flow fringe 1400 MBY900 7.1 172.26
3.2*13m 45-50 Open flow fringe 1600 MBY1000 7.1 196.26
3.8*13m 60-62 Open flow center 2500 MFY250 16.5 204 (without motor)
4.2*13m 85-87 Open flow center 3530 JQS3550 16.5 254 (without motor)







Our Services



1) Pre- sales service:    We could recommend suited models and factory price according

to your demands warmly;

2) Sales service: Talk the details with you patiently;

3) After- sales service:  We will provide 2 years warranty so that your cement ball mill  can runs consistently.
