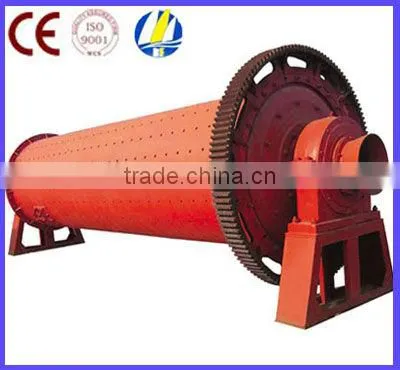

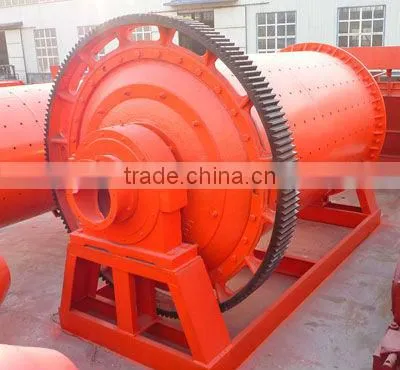

ball mill grinding media chemical composition with high quality
Ball Mill Application:
Ball mill is the key equipment to crush again after materials are broken.Ball mill is widely used in cement,silicate products, new building materials, refractory materials, fertilizer, black and non-ferrous metal processing and glass ceramics industry,etc.Ball mill can dry or dry grind a variety of ores and other grind-able materials.
Ball Mill Working Principle:
Ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
Ball Mill Structure:
Ball mill is composed of feeding parts,discharging part, turning part, transmission part (reducer, small transmission gear, motor, electric control),etc.Hollow axis adopts the cast steel,lining can be replaced,rotary rack wheel adopts casting gear for process,in the barrel beset with wear-resisting liner,Ball mill has good abrasion resistance.Ball mill runs smoothly,work reliably.
Note: Ball mill is used to grind cement raw materials,which is divided into dry method and wet method.
Ball Mill Advantages:
1)Reduce the motor power and the installed capacity, improve work efficiency, reduce the reactive power consumption;
2) Ball mill substitutes rolling bearings for sliding bearings, Ball mill has larger carrying capacity and longer service life;
3)Ball mill starts flexible, the starting voltage is low, the starting time is short;
4) Using glycerol lubrication series, oil-saving quantity is 80 ~ 90%;
5) Make full use of surplus motor capacity, improve lining board structure, Ball mill can increase production to 5 ~ 7%;
6) Reduce the main bearing maintenance, improve environment, no oil stain pollutions;
Ball Mill Technical Parameters:
| Model (m) | Production Capacity (t/h) | Ball Mill Form | Drive Form | Power (kw) | Reducer | Weight (t) | Note | |
| Model | Speed Ratio | |||||||
| 2.2*7m | 8-9 | Open flow | fringe | 380 | ZD70 | 5 | 54 | |
| 2.2*7.5m | 10-11 | Open flow | fringe | 380 | ZD70 | 5 | 63 | |
| 2.2*8m | 10-12 | Open flow | fringe | 380 | ZD70 | 5 | 65 | |
| 2.2*9.5m | 14-16 | Open flow | fringe | 475 | ZD70 | 5 | 70 | |
| 2.4 *10m | 18-19 | Open flow | fringe | 630 | JR75 | 5.64 | 94.5 | |
| 2.4*11m | 19-21 | Open flow | fringe | 630 | RZD80 | 6.3 | 99.2 | |
| 2.4*13m | 21-23 | Open flow | fringe | 800 | MBY710 | 7.1 | 115.2 | |
| 2.6*13m | 28-32 | Open flow | fringe | 1000 | MBY800 | 7.1 | 148 | |
| 2.6*13m | 28-32 | Open flow | fringe | 1000 | MFY100 | 19.5 | 101.73 | (without motor) |
| 3*12m | 32-35 | Open flow | fringe | 1250 | MBY900 | 7.1 | 168.6 | |
| 3*13m | 34-37 | Open flow | fringe | 1400 | MBY900 | 7.1 | 172.26 | |
| 3.2*13m | 45-50 | Open flow | fringe | 1600 | MBY1000 | 7.1 | 196.26 | |
| 3.8*13m | 60-62 | Open flow | center | 2500 | MFY250 | 16.5 | 204 | (without motor) |
| 4.2*13m | 85-87 | Open flow | center | 3530 | JQS3550 | 16.5 | 254 | (without motor) |
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
Please free contact us!
