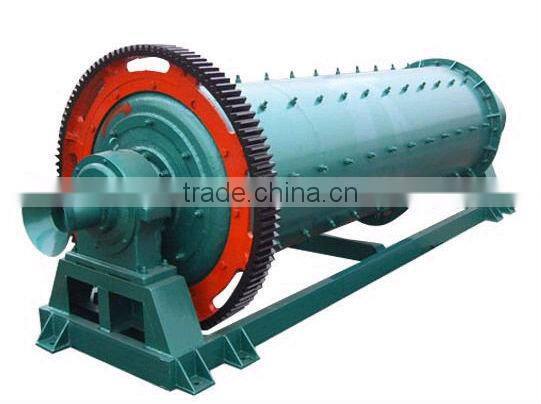

High Efficiency Cement Mill Grinding Media
US$ 1,000 - 9,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Ball Mill
Motor Type:
AC Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Efficiency Grinding Cement MillUS$ 1 - 999.999MOQ: 1 Set -
High Efficient High Pressure Cement MillUS$ 1,000 - 9,000MOQ: 1 Set
-
High Efficient Cement Roller MillUS$ 1,000 - 9,000MOQ: 1 Set
-
High Efficient Cement Raw Material Ball MillUS$ 1,000 - 9,000MOQ: 1 Set
-
Best Performance Cement Clinker Ball Mill With Good QualityUS$ 1,000 - 9,000MOQ: 1 Set
Condition
New
Type
Ball Mill
Motor Type
AC Motor
Power(W)
380kw
Capacity(t/h)
8-87
Place of Origin
Henan, China
Brand Name
Kefan cement mill grinding media
Model Number
2.2*7m
Dimension(L*W*H)
2.2*7
Weight
54t
Certification
BV/CE/ISO
Warranty
two years
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
cement mill grinding media1Simple structure&little noise
2Guanranteed quality with CE/ISO
3Capacity:8-87t/h
High Efficient cement mill grinding media
- 1. high efficiency cement mill grinding media application:
- high efficiency cement mill grinding media ( grinding ball mill)is a kind of energy-saving ball mill, in industrial production, especially in mineral processing industry, has the most common application of grinding machine. Grind non-ferrous metal, such as: gold, silver, lead, zinc, copper, molybdenum, manganese, tungsten,etc;grind nonmetal,such as graphite, feldspar, potassium feldspar, rock phosphate, fluorite, clay, bentonite, etc.The wet ball mill produced by Henan Kefan has the reasonable price,welcome customers to plant for choosing.
- 2. high efficiency cement mill grinding media working principle:
- high efficiency cement mill grinding media ( grinding ball mill)is a horizontal rotating device transmitted by the outer gear.The material goes to the first hopper after the spiraling by the quill shaft from the feeding equipment. The hopper has ladder sheathing or corrugated sheathing with steel balls inside, which will fall under the effect of centrifugal force by barrel turning to ram hard and grind material. After the kibbling in the first hopper, by monolayer partition panel, the material will enter the second hopper, which has plane scale board with steel ball inside to grind material. The powder material will be discharged from the grid plate to finish the grinding operation.
- 3. high efficiency cement mill grinding media structure:
- 1, feed screw to feed materials.
- 2, barrel part,barrel body has a manhole for maintenance and replacement of the lining board in the barrel.
- 3, discharge part to discharge the qualified products for ball mill.
- 4, main bearing parts.
- 5, drive part.
• 4. high efficiency cement mill grinding media technical parameters:
| Model (m) | Production Capacity (t/h) | Ball Mill Form | Drive Form | Power (kw) | Reducer | Weight (t) | Note | |
| Model | Speed Ratio | |||||||
| 2.2*7m | 8-9 | Open flow | fringe | 380 | ZD70 | 5 | 54 | |
| 2.2*7.5m | 10-11 | Open flow | fringe | 380 | ZD70 | 5 | 63 | |
| 2.2*8m | 10-12 | Open flow | fringe | 380 | ZD70 | 5 | 65 | |
| 2.2*9.5m | 14-16 | Open flow | fringe | 475 | ZD70 | 5 | 70 | |
| 2.4 *10m | 18-19 | Open flow | fringe | 630 | JR75 | 5.64 | 94.5 | |
| 2.4*11m | 19-21 | Open flow | fringe | 630 | RZD80 | 6.3 | 99.2 | |
| 2.4*13m | 21-23 | Open flow | fringe | 800 | MBY710 | 7.1 | 115.2 | |
| 2.6*13m | 28-32 | Open flow | fringe | 1000 | MBY800 | 7.1 | 148 | |
| 2.6*13m | 28-32 | Open flow | fringe | 1000 | MFY100 | 19.5 | 101.73 | (without motor) |
| 3*12m | 32-35 | Open flow | fringe | 1250 | MBY900 | 7.1 | 168.6 | |
| 3*13m | 34-37 | Open flow | fringe | 1400 | MBY900 | 7.1 | 172.26 | |
| 3.2*13m | 45-50 | Open flow | fringe | 1600 | MBY1000 | 7.1 | 196.26 | |
| 3.8*13m | 60-62 | Open flow | center | 2500 | MFY250 | 16.5 | 204 | (without motor) |
| 4.2*13m | 85-87 | Open flow | center | 3530 | JQS3550 | 16.5 | 254 | (without motor) |
Our products have CE,ISO9001:2008 certificated,so you can feel relieved for our product.
Please free contact us!
