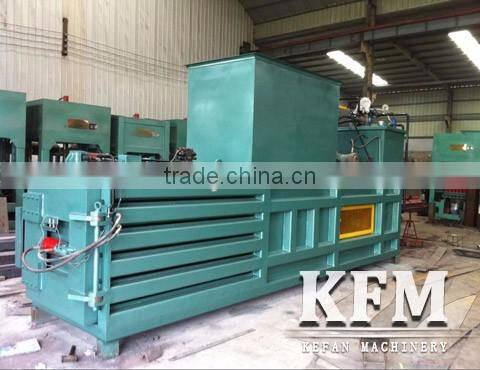

easy to operate hay and straw baler machine
Product Details
Our company manufactured waste paper baler on the base of organic baler, through add frequency conversion technology and inlace rope technology, making the whole machine working effciency improved and decrease the power consumption, adopted new cooling technology protection. Waste paper baler working for a long time later won't making hydraulic oil temperature rise up, make sure hydraulic oil working at the normal range and ensure the waste paper output products quality.
Property advantages:
PLC control, match with the man-machine interface(touch screen) relize windows-style monitor, synchronize action indication map match with error warning can set output mass block length.
Left, right and top the three direction floating necking design, benefit for automatic distribution all sides pressure, can widely used for different materials packing.
Automatic bundling, improve packing speed.
Feeding port with distributed shearing blade, high shearing efficiency.
Simple installation, no need foundation.
Technical Parameters
| Model | 200type | 180type | 160type | 140type | 120type | 100type | |
| Power system | Hydraulic system, high and low pressure combination | ||||||
| Motor | Power(KW) | 22+15 | 22+15 | 22+15 | 22+15 | 22 | 22 |
| Hydraulic pump Qty | two | two | two | two | one | one | |
| System Working Technical parameters | Model | YCY14-1B PVR160-17 | YCY14-1B PVR153-17 | YCY14-1B PVR153-17 | YCY14-1B PVR140-17 | HA01SO-100 | YCY14-1B-80 |
| Rated displacement(ML/R) | 300 | 400 | 300 | 230 | 220 | 160 | |
| Rated pressure(MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | |
| Nominal main thrust(KN) | 2000 | 1800 | 1600 | 1400 | 1200 | 1000 | |
| System pressure(MPa) | 28 | 28 | 28 | 28 | 28 | 28 | |
| Power specifications | 3PH380V | 3PH380V | 3PH380V | 3PH380V | 3PH380V | 3PH380V | |
| Control system | PLC | PLC | PLC | PLC | PHC | PHC | |
| Special body probe | Special body probe | Special body probe | Special body probe | Objects control measure | Objects control measure | ||
| Automatic control operation, manual button operation | |||||||
| Hydraulic oil grades | Wearable hydraulic oil | ||||||
| The whole machine Technical parameters | Feed opening size(MM) | 2000×1020 | 2000×1020 | 2000×1020 | 2000×1020 | 1700×1020 | 1500×820 |
| Mass block size(MM) | 1100×1400 | 1100×1300 | 1100×1200 | 1100×1200 | 1100×900 | 900×1000 | |
| Mass block density(KG/?) | ≥400-450 | ≥400-450 | ≥400-450 | ≥400-450 | ≥400-450 | ≥400-450 | |
| Production capacity(T/H) | 9-10(8-11bags) | 9-10(8-11bags) | 7-8(8-11bags) | 7-8(8-11bags) | 4-9(4-7bags) | 2-5(3-5bags) | |
| Bundling | Tempering iron wireφ2.8/3.2mm, three lines, manual bundling | ||||||
