20 years manufacturer, automatic hay and straw baling machine
1. Baler with PLC control system
2. High capacity
3. Unmanned operation
4. CE and ISO certificated
5. 19 years factory
6. Warranty: 1 year
7. Applicable to cardboard, paper, staw, hay, etc.
Features
- Full automatic compression and baling, unmanned operation, ideal for places of large amount of materials;
- Unique automatic baling system, high capacity;
- Simple structure, stable motion, low failure rate and minimum maintenance.
- Available to feed through conveyor line or air blower; applicable to carton, plastic, clothing and large waste processing facility.
Models and paramater
Model |
JPW40QT |
JPW60QT |
JPW80QT |
Hydraulic power |
40Ton |
60Ton |
80Ton |
Bale size (W*H*L) |
720*720*300-1600mm |
850*750*300-1800mm |
1100*800*300-2000mm |
Feed opening size (L*w) |
1000*720mm |
1200*750mm |
1500*800mm |
Bale density |
300Kg/m3 |
350Kg/m3 |
400Kg/m3 |
Bale lines |
4 |
4 |
4 |
Capability |
1-3T/hour |
2-4T/hour |
4-7T/hour |
Machine size (L*W*H) |
6300*2500*2150mm |
6530*2770*2200mm |
8000*3410*2400mm |
Power |
18-22KW/25-30HP |
22-30KW/30-40HP |
30-45KW/40-60HP |
Machine weight |
About 6.5T |
About 8.5T |
About 10T |
Model |
JPW100QT |
JPW120QT |
JPW150QT |
Hydraulic power |
100Ton |
120Ton |
150Ton |
Bale size(W*H*L) |
1000*1000*300-2100 mm |
1100*1100*300-2100mm |
1100*1100*300-2100mm |
Feed opening size(L*W) |
1800*1000mm |
2000*1100mm |
2400*1100mm |
Bale density |
500Kg/m3 |
600Kg/m3 |
700Kg/m3 |
Bale lines |
5 |
5 |
5 |
Capability |
8-10T/hour |
9-12T/hour |
12-15T/hour |
Machine size(L*W*H) |
9300*4180*4050mm |
10500*4337*4011mm |
11000*4337*5065mm |
Power |
45-60KW/60-80HP |
60-75KW/80-100HP |
75-90KW/100-120HP |
Machine weight |
About 15Ton |
About 18Ton |
About 20Ton |
Advantages of JEWEL baler
- Professional hydraulic baler machine manufacturer with 20 years experience
- Modern standard manufactory, advanced equipments and strict quality management system
- Acquired CE, TUV, SGS, ISO9001: 2008 certificates
- 70% products are exported to more than 90 countries
- Serviced more than thousands of companies with best solutions

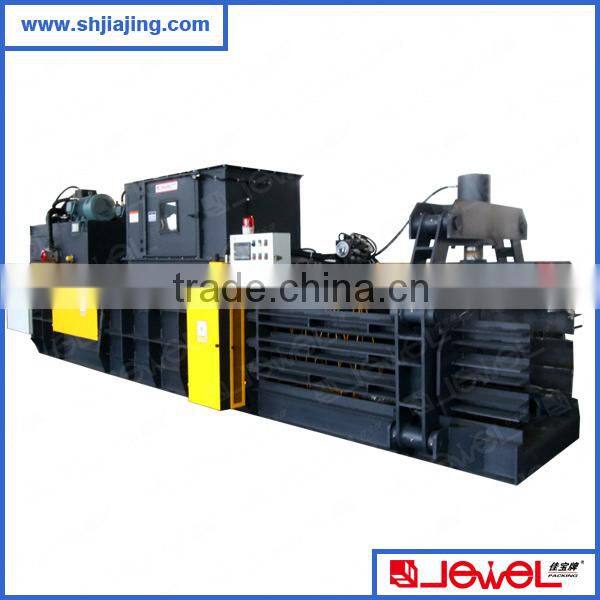

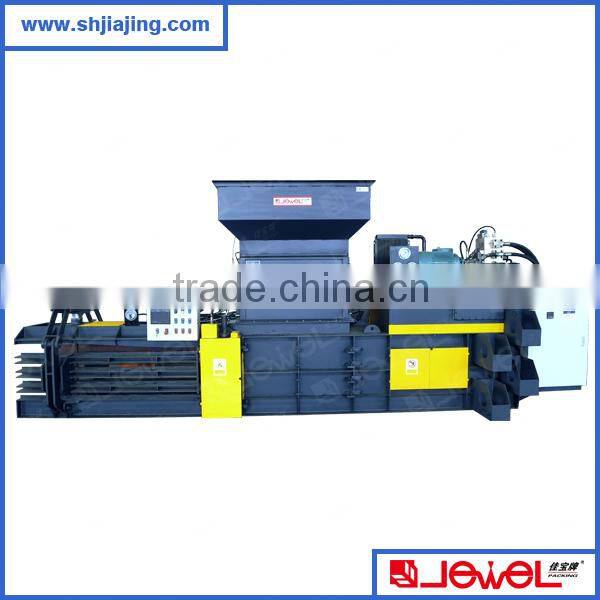

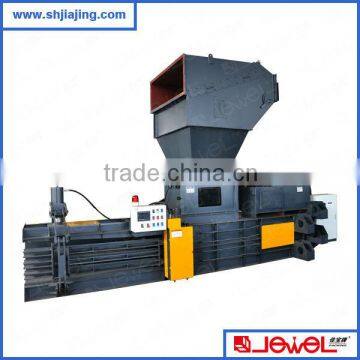

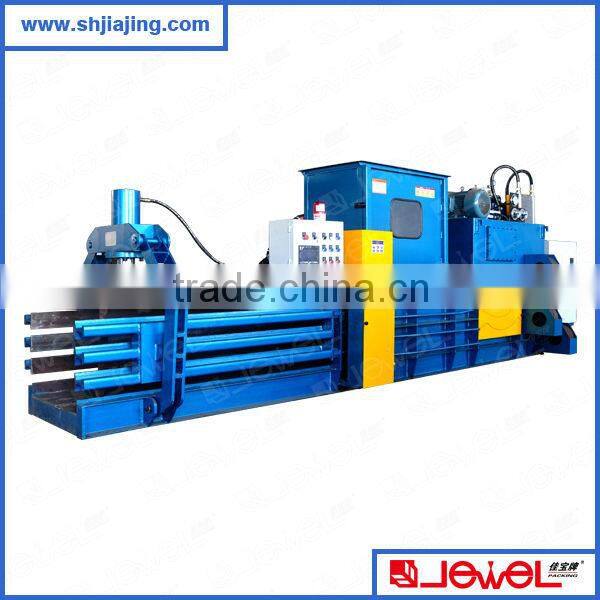

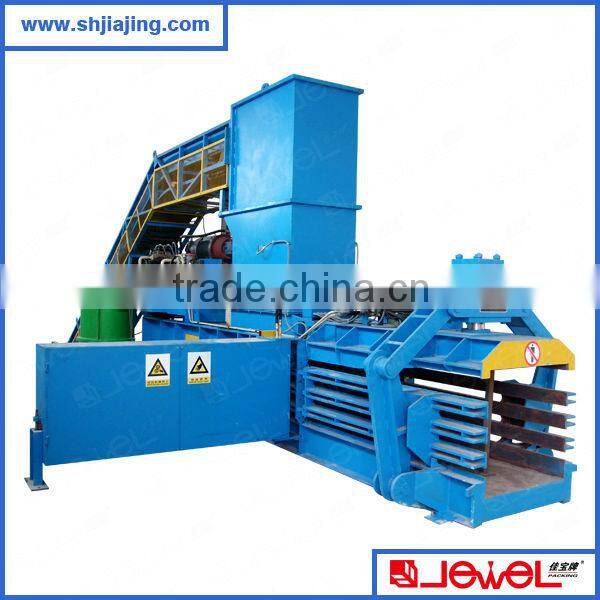

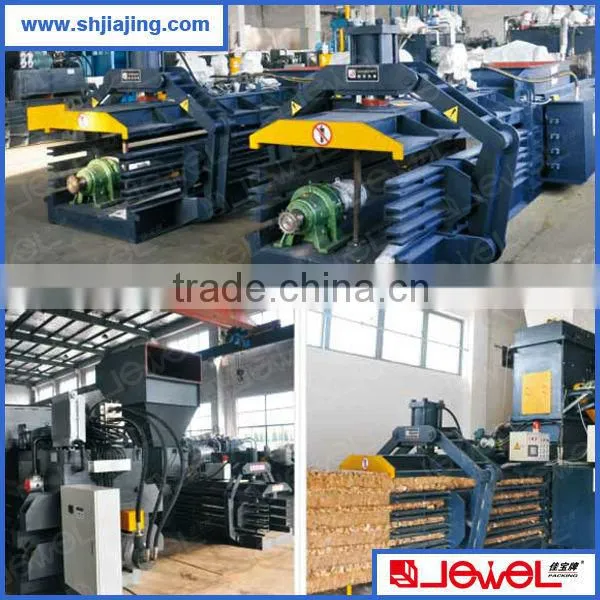

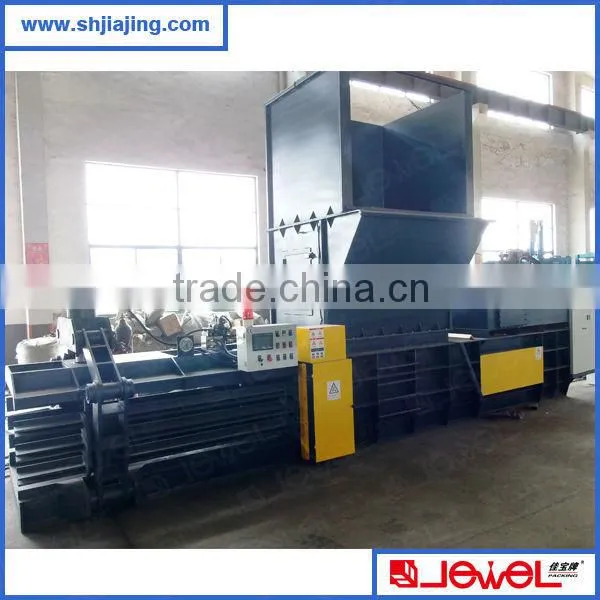

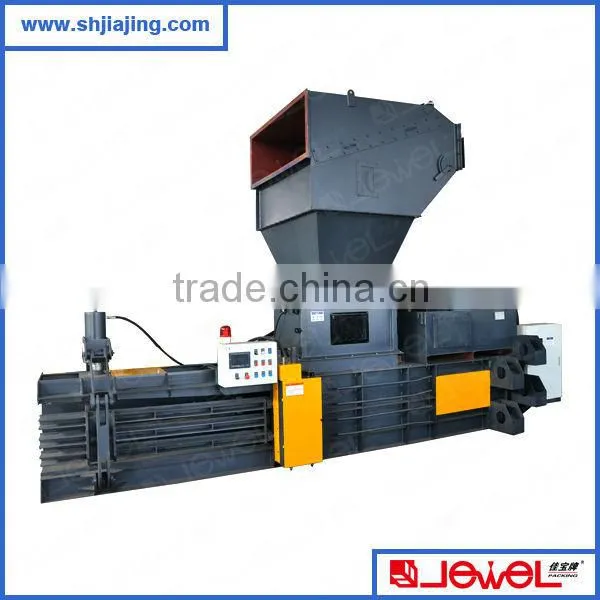

Standard model's Pictures

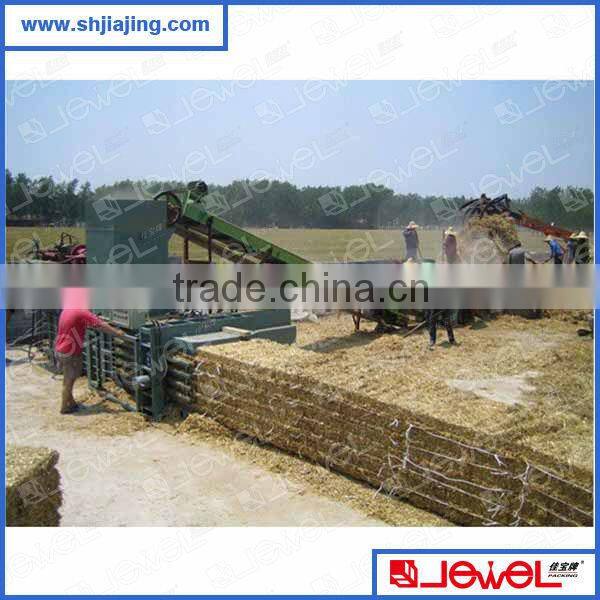

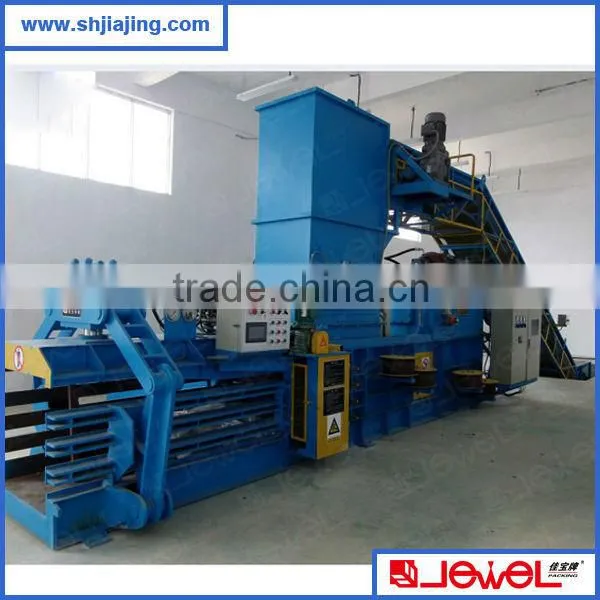

Customer's case

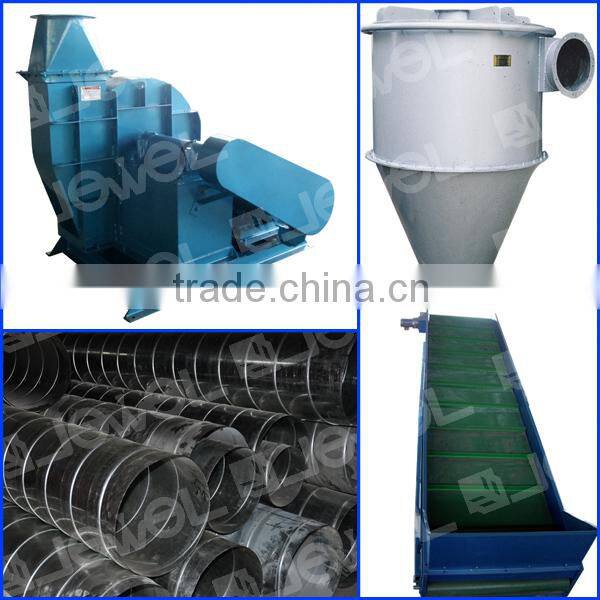

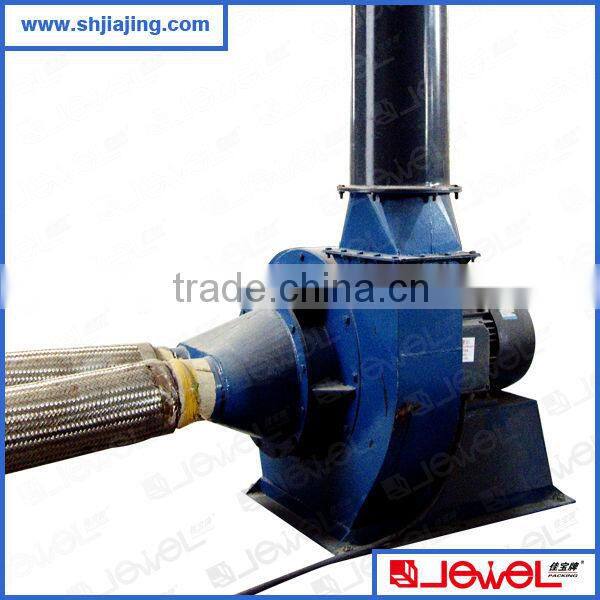

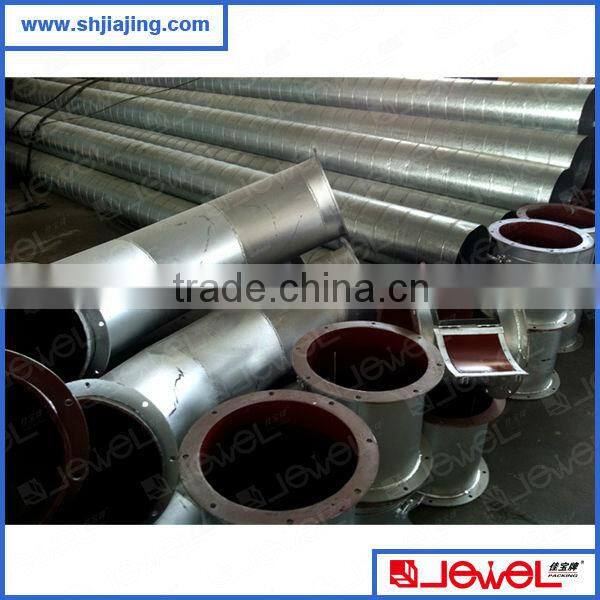

Related equipments
1. Warranty:12 moths
2. Engineers available to service machinery overseas
3. 24 hours technical support
4. Within the one year guarantee period, the damage not caused by improper operation, we will provide the spare-part freely.

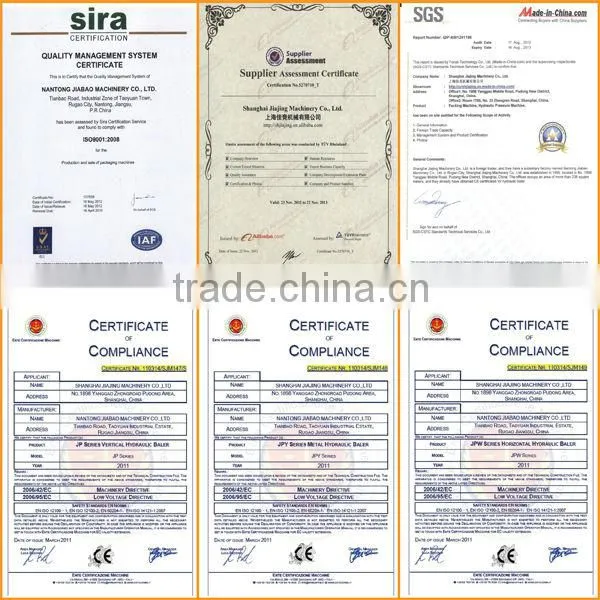

Related certificates( CE, ISO9001:2008,SGS,TUV)

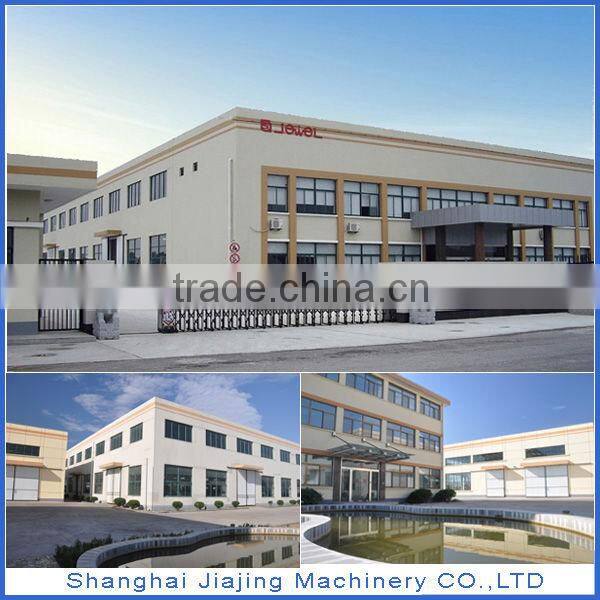

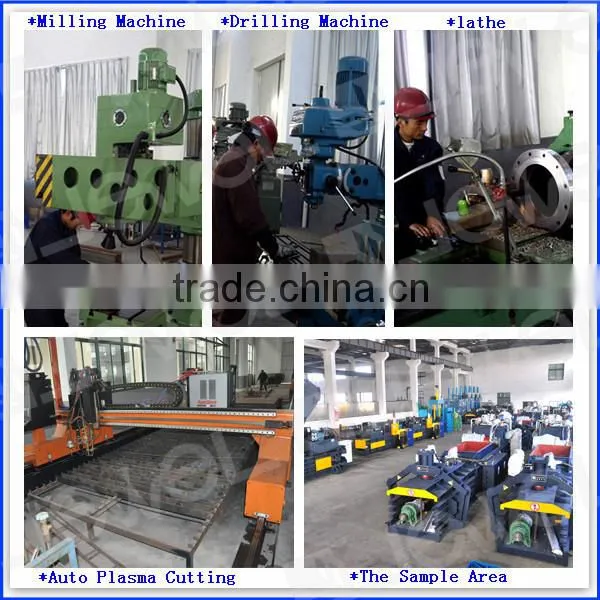

Factory show
Jiajing (JiaBao) Machinery Co.,Ltd.is an experienced manufacturer, specialized in manufacturing
hydraulic baler machine and packaging machine since 1995.
Equiped with automatic plasma cutting equipments, automatic procession centrelathe, grinder,
milling machine, steel plate shearer, bending machine, cranes, etc. Which contribute to our
superior production quality among our counterparts.
1,How to feed the materials?
------By manual.Open the feeding door,put the materials to the chamber,closed the door(Must closed the door because we have safety interlocks).
2,Can we customized the bale size and bale weight?
------Of course we can.You can customized the Voltage,Bale size and Bale weight before you purchase.
3,The mainly used of this machine?
------Suitable to compress and pack scrap paper,carton,scrap plastic,leather and other materials.
