The RKB5000’s automatic baling and logging cycles keep you at peak efficiency.
With the RKB5000’s 125KW Cummins Turbo Diesel engine you can expect to produce:
Baling: 12 - 16 Tons per hour
Logging: 18 - 22 Tons per hour
Automobile Logging: 26 - 32 Tons per hour
The WLB5000 baler/logger is a beast on automobiles, appliances, and lightweight sheet iron; producing logs with the density you need to meet max weight.
Looking to produce mil-spec bales?
The WLB5000’s cylinder comes within 500mm of each other allowing you to densely bale clips and busheling to mill specifications.
Average Bale and Log specifications:
Bales: Size (1000X 600X Variable mm), Weight (385kg.)
Logs: Size (1000. X 600X Variable mm), Weight (550kg.)

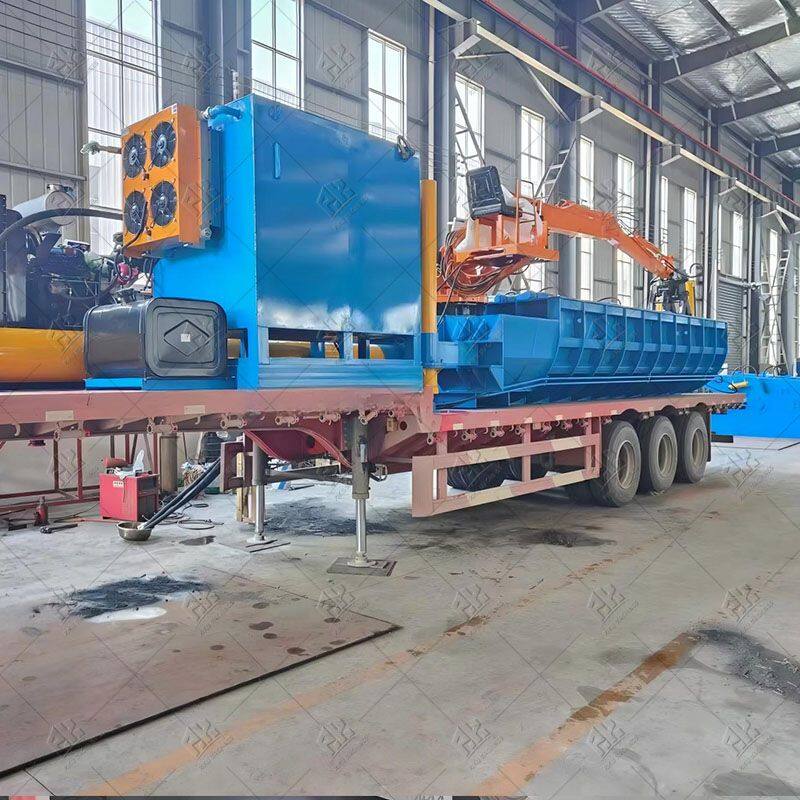

The portability of the WLB5000 baler/logger gives you the versatility you need with the capability of being moved to multiple locations or to different areas within the same location.
The hydraulic powered outriggers provide the needed stability to handle the heavy weight of the machine.
Not looking for a portable baler/logger?
Not a problem. The WLB5000 has the option to be either portable or stationary.

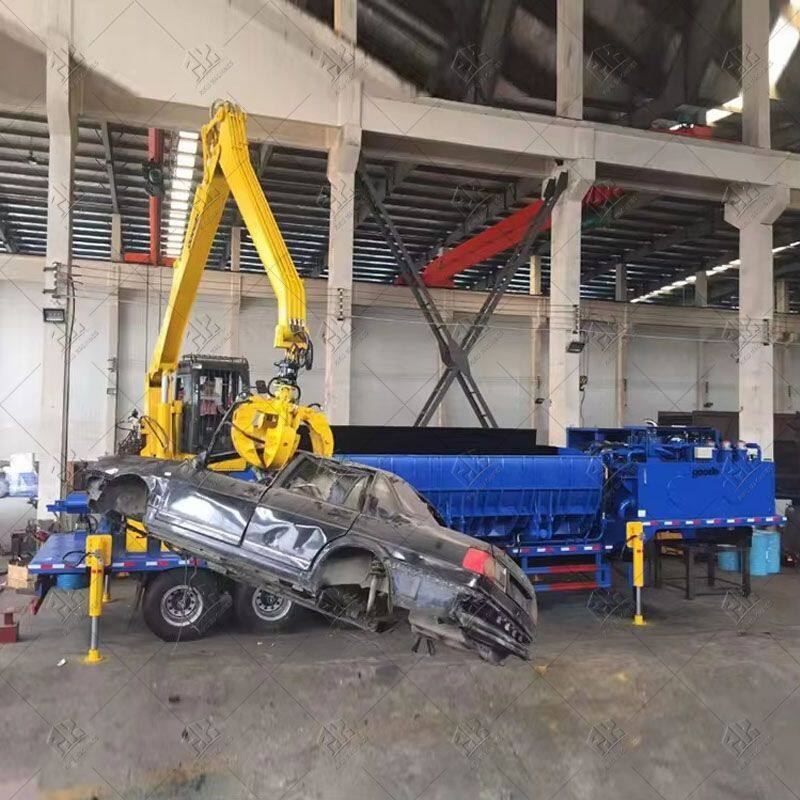

The RIKU MACHINES is one leading strength of the heavy-duty steel crane gives the machine a greater lifting capacity and longer life, even when lifting heavy materials at a distance.
The fully functional crane is independent of the baler and has continuous rotation, a 8m boom length, nd 3T. lifting capacity, even at full extension. It comes equipped with a four-point Orange Peel Grapple on X with rotator.
Technical parameters
| s.n | parameters | Note | ||||
| 1 | main cyclinder | YG320/220-4000 | 320T*1PCS | |||
| 2 | cylinder | Nominal thrust | 1826 kN | strip | 4000mm | |
| 3 | Level 1 Pressing material | model | YG200/140-600 | 200T*2PCS | ||
| cylinder | Nominal thrust | 785KN*3 | strip | 600mm | ||
| 4 | Level 1 Pressing material | model | YG200/140-600 | 200T*2PCS | ||
| cylinder | Nominal thrust | 785KN*3 | strip | 514mm | ||
| 5 | chamber (L*W*H) | 5000*2000*1500 MM | ||||
| 6 | Bale size(l*w*h) | ~600*1000*1000 MM | ||||
| 7 | Working pressure | 21.5 Mpa | ||||
| 8 | bale density | ≥2000kg/m3 (Fe) | ||||
| 9 | cycle time | 130S | ||||
| 10 | Operation model | remote controller | ||||
| 11 | equipment weight | 26Tons | ||||
| 12 | dimension | 6500*2400*2700mm | ||||
| 13 | engine | model | HBE | POWER | 150hp | |
| rolling | 2000R/min | Qty | 1PCS | |||
| 14 | pump | model | A4V180+180 | pressure | 32Mpa | |
| flow | 376R/min | Qty | 1PCS | |||
| 15 | AVERAGE FULE CONSUMPTION | 15L/H |

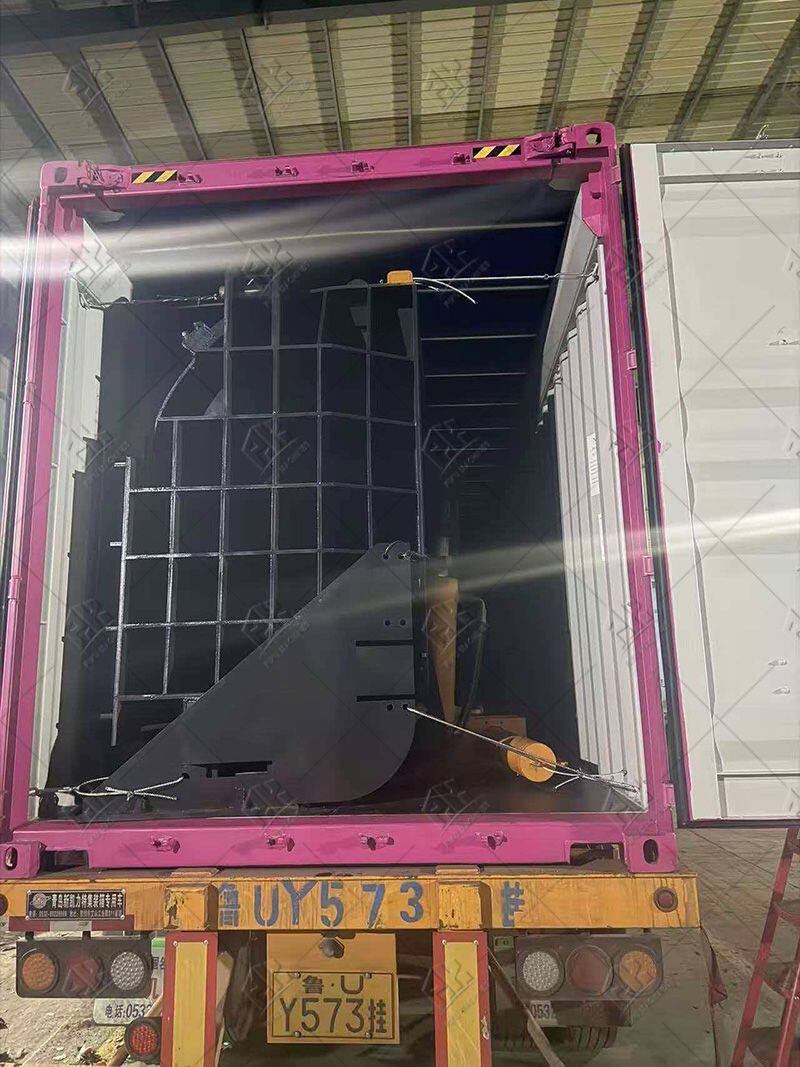

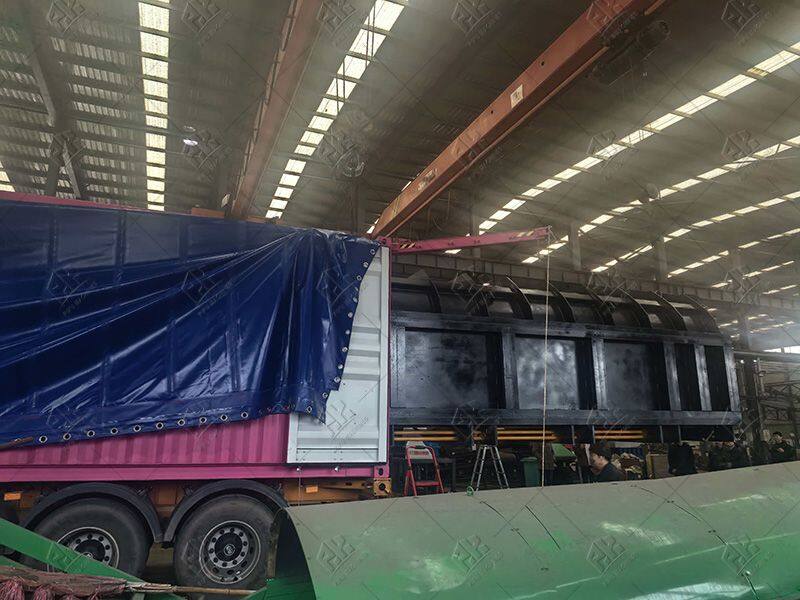

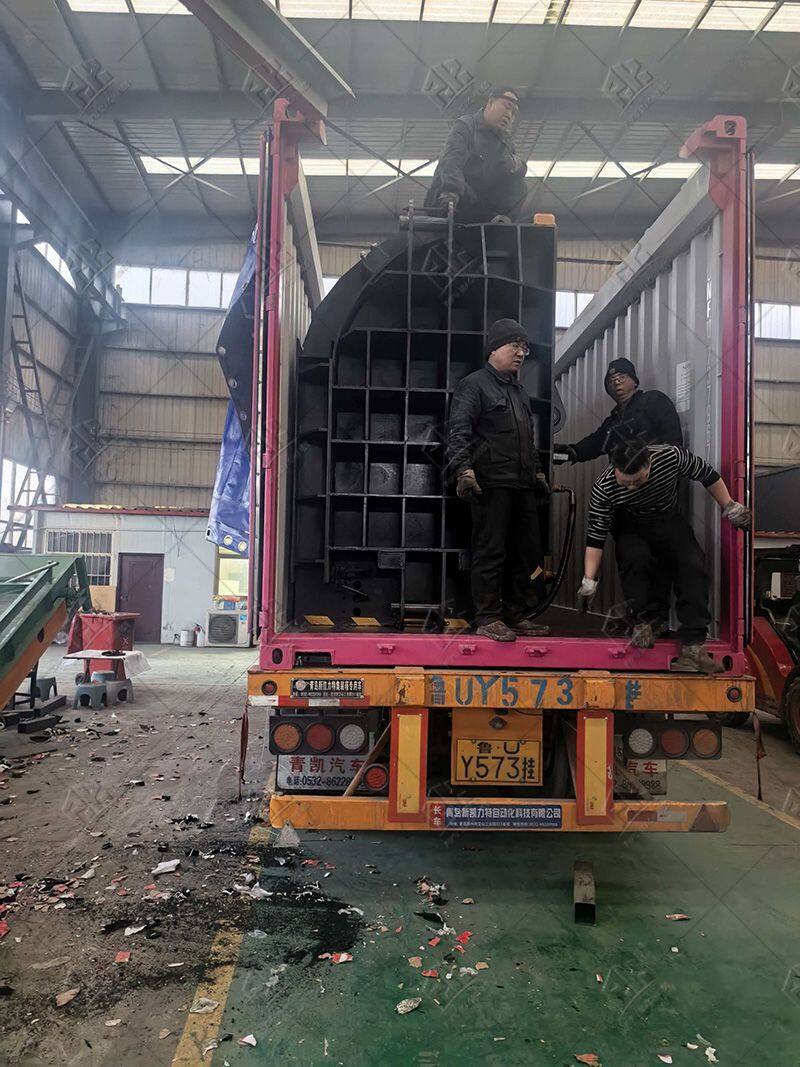

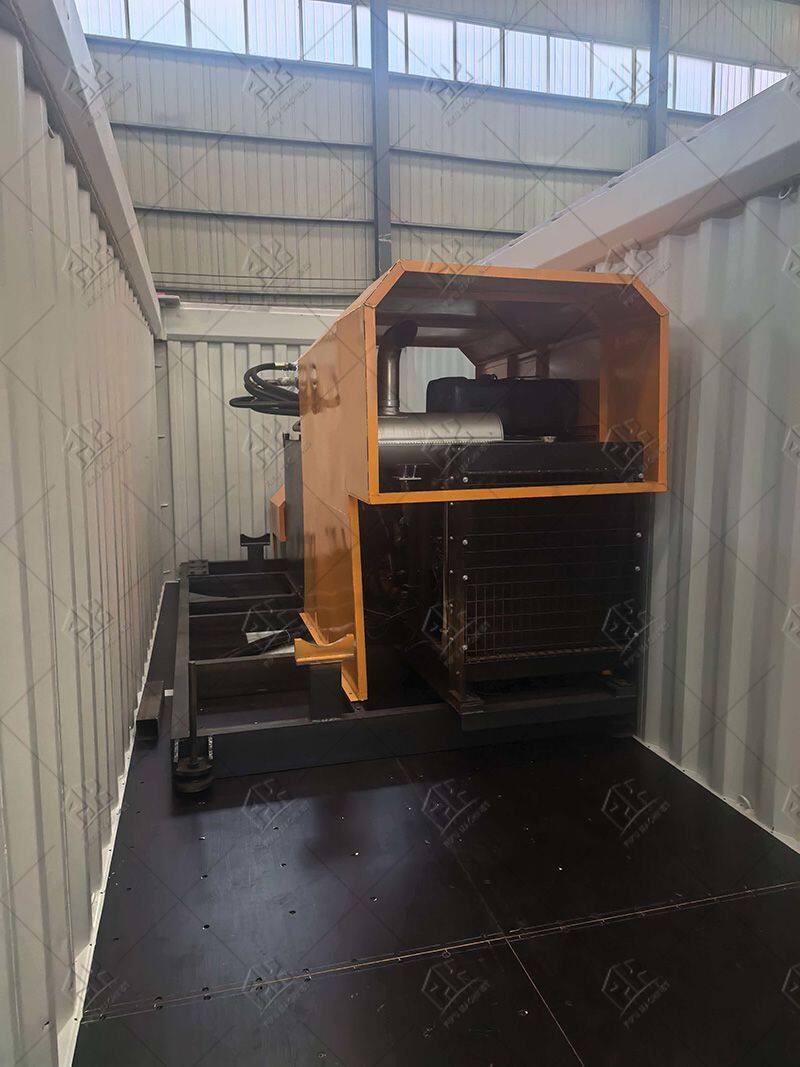

shipment details
