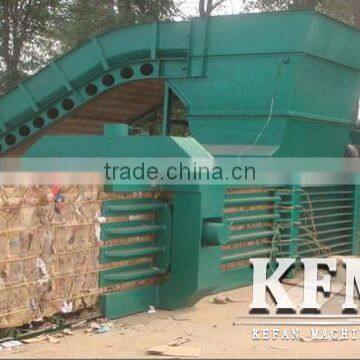

environmentally friendly rice straw baler
[Production capacity]: 7-10 bags / hour
[Advantages]: Plastic baler has features of big volume and mass weight per bag. Mass weight per bag can according user requires to control, capacity 7-10 bags per hour.
[Applications]:Plastic baler machine has features of big volume and mass weight per bag, thus specialized suit for recycle bin using which with purchase plastic products and a certain plastic purchase amount.
Product Details
Plastic baler is specialized suit for recycle bin using which with purchase plastic products and a certain plastic purchase amount. This kind baler with multi-function, all kinds waste cartons, waste plastic bottles, oil barrel can use this baler to process.
Adopt high quality thicken steel plate, plus gas-welding casted strong frame, advanced mechanical design making the machine durable to use.
Property advantages:
Hydraulic system: hydraulic pump, electric valve and hydraulic cylinder oil seals and other key parts adopt import parts, making the machine working with high pressure, high speed, durable to use and low noise.
Conveying system: high quality thicken I-beam frame, high strength steel plate conveyor.
Electric control system: adopt siemens motor, original mitsubishi PLC program controller. Other push botton, sensor, infrared shooting, remote control system and other key parts adopt import parts. Easy to operate and convenient for maintenace.
Safety warning system: program control five security automatic lock and stop working warning. When the machine with wrong operation, power resource supply power loss phase, wrong power resource phase sequence, ultra high pressure, the operator strayed at the packing port will automatic stop working and warning.
Technical Parameters
| Model | 200type | 180type | 160type | 140type | 120type | 100type | |
| Power system | Hydraulic system, high and low pressure combination | ||||||
| Motor | Power(KW) | 22+15 | 22+15 | 22+15 | 22+15 | 22 | 22 |
| Hydraulic pump Qty | two | two | two | two | one | one | |
| System Working Technical parameters | Model | YCY14-1B PVR160-17 | YCY14-1B PVR153-17 | YCY14-1B PVR153-17 | YCY14-1B PVR140-17 | HA01SO-100 | YCY14-1B-80 |
| Rated displacement(ML/R) | 300 | 400 | 300 | 230 | 220 | 160 | |
| Rated pressure(MPa) | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | 31.5 | |
| Nominal main thrust(KN) | 2000 | 1800 | 1600 | 1400 | 1200 | 1000 | |
| System pressure(MPa) | 28 | 28 | 28 | 28 | 28 | 28 | |
| Power specifications | 3PH380V | 3PH380V | 3PH380V | 3PH380V | 3PH380V | 3PH380V | |
| Control system | PLC | PLC | PLC | PLC | PHC | PHC | |
| Special body probe | Special body probe | Special body probe | Special body probe | Objects control measure | Objects control measure | ||
| Automatic control operation, manual button operation | |||||||
| Hydraulic oil grades | Wearable hydraulic oil | ||||||
| The whole machine Technical parameters | Feed opening size(MM) | 2000×1020 | 2000×1020 | 2000×1020 | 2000×1020 | 1700×1020 | 1500×820 |
| Mass block size(MM) | 1100×1400 | 1100×1300 | 1100×1200 | 1100×1200 | 1100×900 | 900×1000 | |
| Mass block density(KG/?) | ≥400-450 | ≥400-450 | ≥400-450 | ≥400-450 | ≥400-450 | ≥400-450 | |
| Production capacity(T/H) | 9-10(8-11bags) | 9-10(8-11bags) | 7-8(8-11bags) | 7-8(8-11bags) | 4-9(4-7bags) | 2-5(3-5bags) | |
| Bundling | Tempering iron wireφ2.8/3.2mm, three lines, manual bundling | ||||||
