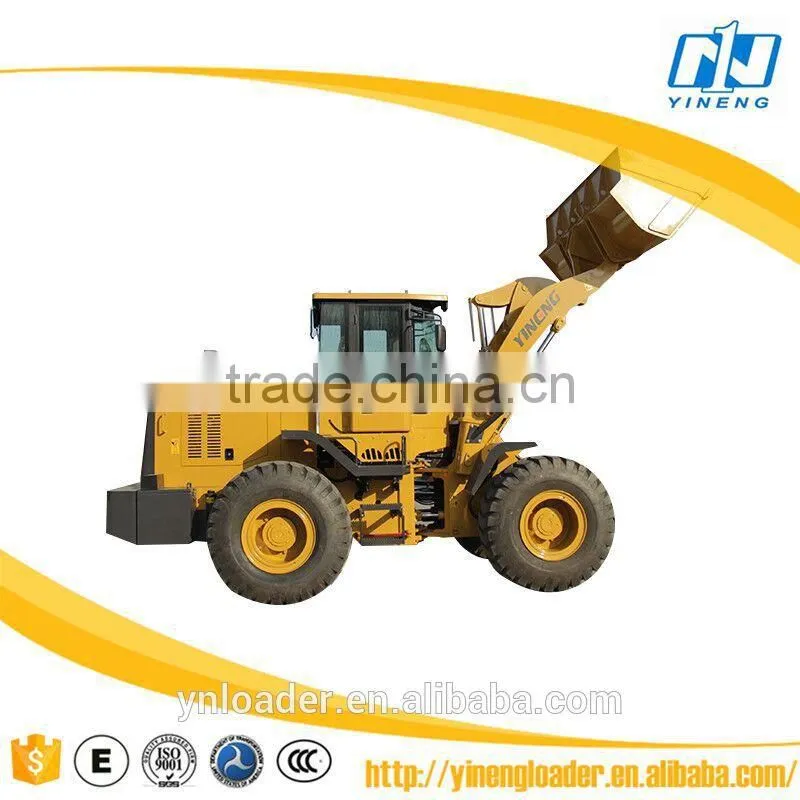

ISO2000 Approved SHAN DONG Yineng YN 940 Loader 0.7cbm 2ton k Series Loader


ISO9001:2008 certificate
Our workshop:
OEM of Liu Gong,Foton Lovol and Power Plus
Technical Specifications:
Performance | 1 | Rated load | 4000kg |
2 | Overall weight | 12360kg | |
3 | Rated capacity | 2.5m3 | |
4 | Max. Tractive force | 100KN | |
5 | Max. Breakout force | ≥120KN | |
6 | Max. Grade ability | 30° | |
7 | Max. Dumping height | 3250mm | |
8 | Max. Dumping reach | 1100mm | |
9 | Overall dimension L x W x H | 6910x2510x3300mm | |
10 | Min. Turning radius | 5160mm | |
Engine | 11 | Model | Dongfeng Cummins 6BTA5.8-C150 |
12 | Type | Turbocharged water & air colling | |
13 | No. of cylinder-bore/stoke | 6-102x120mm | |
14 | Rated power | 112kw-2200r/min | |
15 | Max. torque | 670N.m | |
16 | Min. Fuel-consume ratio | ≤205g/kw.h | |
Transmission | 17 | Model | YD13 electronic control gearbox |
18 | Gear shift | 4 forward, 3 reverse. Electronic control gear shift | |
19 | Max. speed | 36km/h | |
Drive axle | 20 | Main reducing spiral | Bevel gear grade 1 reduction |
21 | Decelerating mode | Planetary reduction, grade 1. | |
22 | Wheel base | 2845mm | |
23 | Wheel tread | 1865mm | |
24 | Min. ground clearance | 380mm | |
Hydraulic system | 25 | System working pressure | 18MPa |
26 | Boom lifting time | 5.5+0.2s | |
27 | Total time | 10+0.5s | |
28 | Fuel tank capacity | 120L | |
29 | Leveling automatically | Yes | |
Break system | 30 | Service brake | Air over hydraulic disc brake on 4 wheels |
31 | Parking brake | Air break control | |
Tyre | 32 | Type | 20.5-25 |
33 | Front tyre pressure | 0.35Mpa | |
34 | Rear tyre pressure | 0.2Mpa |
Quality certificate:
Obtained the certificate of ISO9001:2008; |
OEM of Liu Gong, Foton Lovol and Powerplus. |
Manufacturing license number: TS2510025-2009. |
5. Others:
(1) Packing: within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Guarantee Period: One year
(4) Offer Validity: 30 days

Always following the philosophy of “Prosper enterprise with super quality products; to create YINENG brand”, YINENG considers products quality as the life of enterprise and control the quality strictly to strive to fine products. Customers’ needs as the direction of products development and “to build the top brand of small loader” as striving target. YINENG has won wide market with excellent products, better service and reasonable price. YINENG products are not only popular in more than 20 domestic provinces and cities, but also exported to Kazakhstan, Indonesia, UAE, Saudi Arabia, Syria, Iran, Brazil, Venezuela, Nigeria, South Africa, Australia, etc.
Agent Supporting Services
Technical Guidance:
1. Provide the video for technical guidance
2. Factory send technician to agent country for technical guidance three times per year
3. Agent also could send technician to our factory to learn technology
Training Support: 1. Provide the video for training
2. Factory send technician to agent country for training three times per year
3. Agent also could send technician to our factory to learn technology
Marketing Support:Factory will provide any way to help the agent to promote, such as fair....
After-sale Service:
Factory provide one year or 2000 hours after sales service in worldwide, Agent shall provide local technicians and staffs to satisfy the management , operation and training of after sale service, and provide workshop, warehouse, office and other facilities to support a sustained after sale service.
Commission & Profits: Agent could get 3% to 10% commission according to the size of the profit.
