YN LN966 ZL60 wheel loader front end loader 3.5m3 OEM supplier for more than 7years
- 300 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
- Cement dry ash bulk machine telescopic ring cloth bag DN300/600 thickened wear-resistant
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
- Air transport chute XZ400 cement plant ash chute dry ash ore powder transport equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | YN (yineng)LN(Luneng) | Model Number: | WZ30-25Backhoe Loader |
After-sales Service Provided: | Overseas service center available |
Product Description
ISO9001:2008 certificate
1.Main Specifications:
Performance | 1 | Rated load | 6000kg |
2 | Overall weight | 19200kg | |
3 | Rated capacity | 3.5m3 | |
4 | Max. Tractive force | 170KN | |
5 | Max. Breakout force | ≥190KN | |
6 | Max. Grade ability | 30° | |
7 | Max. Dumping height | 3100mm | |
8 | Max. Dumping reach | 1250mm | |
9 | Overall dimension L x W x H | 8160x3070x3400mm | |
10 | Min. Turning radius | 6630mm | |
Engine | 11 | Model | Shangchai CAT SC11CB240.1G2B1 |
12 | Type | Inline/Turbocharged/water colling | |
13 | No. Of cylinder-bore/stoke | 6-121x152mm | |
14 | Rated power | 175kw-2200r/min | |
15 | Max. torque | 950N.m | |
16 | Min. Fuel-consume ratio | ≤215g/kw.h | |
Transmission | 17 | Model | WG200 Gearbox |
18 | Gear shift | 4 forward, 3 reverse. Electronic control gear shift | |
19 | Max. speed | 38km/h | |
Drive axle | 20 | Main reducing spiral | Bevel gear grade 1 reduction |
21 | Decelerating mode | Planetary reduction, grade 1. | |
22 | Wheel base | 3200mm | |
23 | Wheel tread | 2250mm | |
24 | Min. ground clearance | 510mm | |
Hydraulic system | 25 | System working pressure | 18MPa |
26 | Boom lifting time | 6.0+0.2s | |
27 | Total time | 12+0.5s | |
28 | Fuel tank capacity | 300L | |
29 | Leveling automatically | Yes | |
Break system | 30 | Service brake | Air over hydraulic disc brake on 4 wheels |
31 | Parking brake | expand hoof type | |
Tyre | 32 | Type | 26.5-25 |
33 | Front tyre pressure | 0.4Mpa | |
34 | Rear tyre pressure | 0.35Mpa |

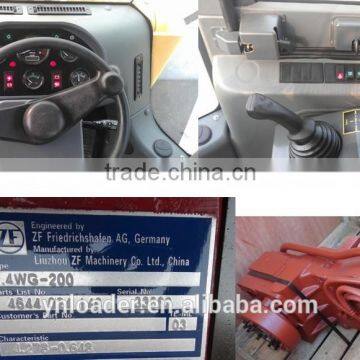

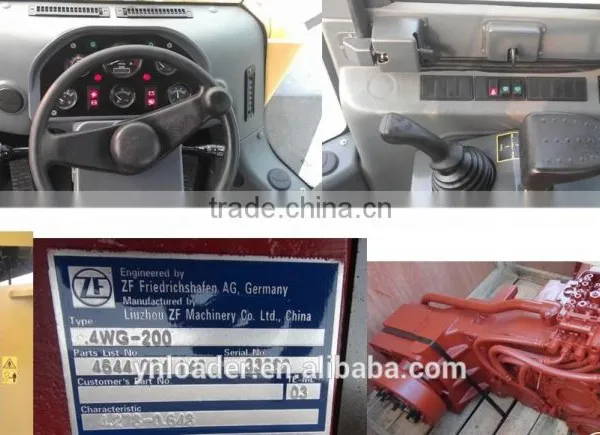

Remark: Joystick control, electronic control, ZF TECH WG200 gearbox, heavy chassis for standard
3. Quality certificate:
(1)CE Approved.
(2)Obtained the certificate of ISO9001:2008.
(3)Manufacturing license number: TS2510025-2009.
4. Others:

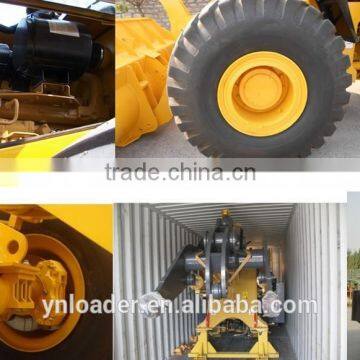

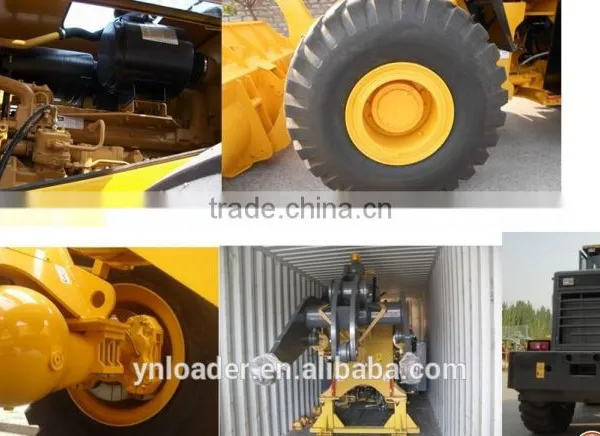

(1) Packing: 1 unit naked within 1 x 40HQ container
(2) Delivery time: 40 days
(3) Accidental benefits: Customers can purchase wearing parts according to the parts list we offered.
(4) Guarantee Period: One year
(5) Offer Validity: 30 days

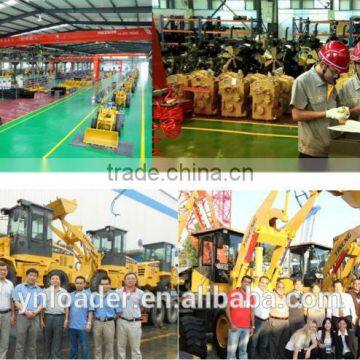

Our workshop:
OEM of Liu Gong,Foton Lovol and Power Plus
YN 966 Common model:
