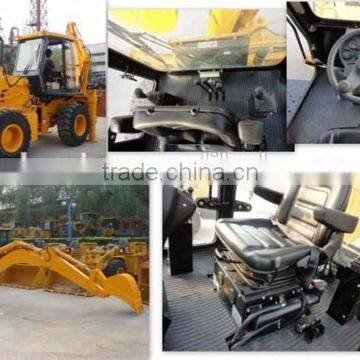

WZ30-25Backhoe Loader Shan Dong Yineng China Easy to Use

Length* Width * Height

5910* 2268 * 3760(mm)

Cab roof height :

2900(mm)

Wheel base :

2250(mm)

Track

1640(mm)

Min. ground clearance

300(mm)

system pressure

load hydraulic system

18Mpa

load hydraulic system

18Mpa

dig hydraulic system

20Mpa

steering hydraulic system

12Mpa

system flow

120L/min

System flow

four-wheel drive,fully hydraulic system

total operating weight

7640kg

maximum speed

22km/h

maximum gradient capacity

30°

loading bucket capacity

1.0 m3

rated loading

2500KG

maximum articulated height of bucket

3400(mm)

bucket discharge height

2795(mm)

bucket discharge distance

1048(mm)

loading lift capacity

25KN

bucket hydraulic translation function

yes

bucket lift time

6.8s

bucket lower time

2.5s

bucket discharge time

1.2s

maximum tractive force

39KN

maximum breakout force

38KN

backacter bucket capacity

0.3m3

backacter discharge height

3878(mm

maximum digging depth

4080(mm)

maximum digging radius

5688(mm)

bucket slewing angle

190°

bucket digging capacity

46KN

bucket stick digging capacity

31KN

Diesel engine

model :

CUMMINS 4BTA3.9-C100

type :

4 cylinders

rated power

74kw / 100HP

rated speed

2200r/min

cylinder

internal diameter 4—100

maximum torque

410N.m/1500rpm

minimum fuel consumption

245g/kw.h

displacement

4.5L

Transmission system

model of hydraulic pump

fixed shaft power shift transmission

gear shift

2 forward shift 2 reverse shift

torque

YJ-280

drive pump

CDXaf3016-IL

flow

16ml/r

work pump

CBGj2063

flow

63ml/r

Steering system

type

articulated hydraulic steering

model of steering control valve

BZZ5-250

model of turning control valve

YSF25S-00

steering angle left or right

36±1°

minimum turning radius

5018(mm)

Axles

main transmission type

single reduction

wheel reduction type

wheel reduction

Wheel

tire size

16/17-20

front wheel pressure

0.22Mpa

rear wheel pressure

0.20Mpa

service braking

air over hydraulic disc on 4 wheels

parking brake

manual parking brake

Refill Capacity

fuel tank

70L

transmission

25L

front axle

9KG

rear axle

9KG

hydraulic tank

140L
