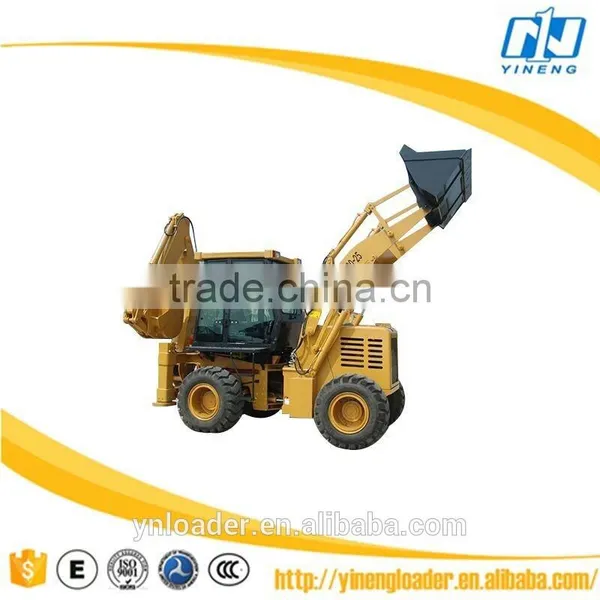

JCBMonolithic Cumminus Engine Compact WZ30-25Backhoe Loader Shan Dong Yineng China CE Approved

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China		Brand Name	YN (yineng)LN(Luneng)
Model Number	WZ30-25Backhoe Loader		After-sales Service Provided	Overseas service center available

Product Description

WZ30-25 Dimension technological parameters

Cheap backhoe loader, new backhoe loader price, backhoe loader with price

Standard Configuration of backhoe loader

CE certificate, 4 wheel drive

Articulated chassis

YTO/ 70-100HP

H leg, side slip function

Whole hydraulic system

Optional of backhoe loader

Backhoe quick coupler, Auger, Breaker

Loader quick coupler, pallet fork, 4 in 1 bucket

Simple canopy cab

Specification of backhoe loader

Performance	Length x Width x Height: 5,900 x 2,300 x 3,769MM
	Cab Roof Height: 2,900MM
	Wheel Base: 2,250MM
	Track: 1,640MM
	Min. Ground Clearance: 300MM
	Total Weight: 7,600KG
	Maximum Speed: 22Km/h
	Maximum Grade ability Capacity: 30°
	Loading Bucket Capacity: 1CBM
	Loading Capacity: 2,500KG
	Maximum Articulated Height Of Bucket: 3,400MM
	Bucket Discharge Height: 2,795MM
	Bucket Discharge Distance: 1,048MM
	Backhoe Bucket Capacity: 0.3CBM
	Backhoe Discharge Height: 3,878MM
	Maximum Digging Depth: 4,080MM
	Minimum Turning Radius: 5,688MM
	Bucket Slewing Angle: 190°
	Bucket Stick Revolving Radian: 180°
Diesel Engine	Model: YTO LR4105/YTO LR4108/YTO LR4110/with Weichai 4BTA
	Type: Inline, direct injection, four-stroke, liquid cooled
	Engine Power: 70HP/75HP/90HP/100HP
	Rated Speed: 2,400RPM
Transmission System	Type of Hydraulic Pump: Fixed shaft power shift transmission
	Gear Shift: 2 forward shift 2 reverse shift
	Torque: YJ-280
	Drive Pump: CDXaf3016-IL
	Flow: 16ML/R
	Work Pump: CBGj2063
	Flow: 63ML/R
Steering System	Type: Articulated hydraulic steering
	Steering Control Valve: BZZ5-250
	Turning Control Valve: YSF25S-00
	Steering Angle: 36°
	Minimum Turning Radius: 5,018MM
Axles	Main Transmission Type: Single Reduction
Axles	Wheel Reduction Type: Wheel Reduction
Tyre	Tyre Size: 16/17-20
	Front Wheel Pressure: 0.22MPa
	Rear Wheel Pressure: 0.20MPa
Brake System	Service Braking: Air over hydraulic disc on 4 wheels
Brake System	Parking Brake: Manual parking brake
Hydraulic System	System Flow: 140L/Min
	Bucket Digging Capacity: 46KN
	Bucket Stick Digging Capacity: 31KN
	Bucket Hydraulic Translation Function: Yes
	Bucket Lift Time: 6.8S
	Bucket Lower Time: 2.5S
	Bucket Dump Time: 1.2S

ISO9001:2008 certificate

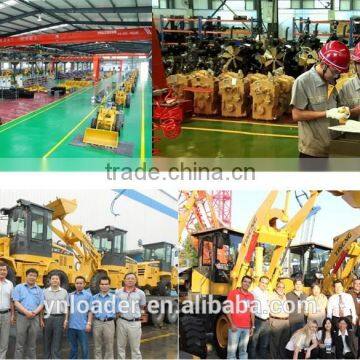

Our workshop:

OEM of Liu Gong,Foton Lovol and Power Plus

Common model:

JCB Mode Backhoe Loader :

Power Plus OEM Partner

Dongfeng Cumminus Engine Optional
