Home > Products > Backhoe Loader/JCB Similar > WZ30-25Backhoe Loader Shan dong yineng china CE approved

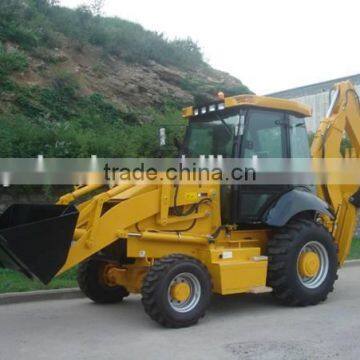

WZ30-25Backhoe Loader Shan dong yineng china CE approved
- 300 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Lithium Ion Battery Recycling Machine For Black Mass And Metal
- Cement dry ash bulk machine telescopic ring cloth bag DN300/600 thickened wear-resistant
- Homogenization tank B200 external fluidization plate homogenization tank inflation equipment
- B400 Electro-hydraulic sector valve Pneumatic sector valve Block material sector valve can be customized
- Bulk material bulk hangar bottom cement clinker sand aggregate loading inside the wear-resistant ceramics
- Air transport chute XZ400 cement plant ash chute dry ash ore powder transport equipment
Product Details
Place of Origin: | Shandong, China | Brand Name: | YN (yineng)LN(Luneng) | Model Number: | WZ30-25Backhoe Loader |
After-sales Service Provided: | Overseas service center available |
Product Description
WZ30-25 Dimension technological parameters
Length* Width * Height | 5910* 2268 * 3760(mm) |
Cab roof height : | 2900(mm) |
Wheel base : | 2250(mm) |
Track | 1640(mm) |
Min. ground clearance | 300(mm) |
system pressure | |
load hydraulic system | 18Mpa |
load hydraulic system | 18Mpa |
dig hydraulic system | 20Mpa |
steering hydraulic system | 12Mpa |
system flow | 120L/min |
System flow | |
| four-wheel drive,fully hydraulic system |
total operating weight | 7640kg |
maximum speed | 22km/h |
maximum gradient capacity | 30° |
loading bucket capacity | 1.0 m3 |
rated loading | 2500KG |
maximum articulated height of bucket | 3400(mm) |
bucket discharge height | 2795(mm) |
bucket discharge distance | 1048(mm) |
loading lift capacity | 25KN |
bucket hydraulic translation function | yes |
bucket lift time | 6.8s |
bucket lower time | 2.5s |
bucket discharge time | 1.2s |
maximum tractive force | 39KN |
maximum breakout force | 38KN |
backacter bucket capacity | 0.3m3 |
backacter discharge height | 3878(mm |
maximum digging depth | 4080(mm) |
maximum digging radius | 5688(mm) |
bucket slewing angle | 190° |
bucket digging capacity | 46KN |
bucket stick digging capacity | 31KN |
Diesel engine | |
model : | CUMMINS 4BTA3.9-C100 |
type : | 4 cylinders |
rated power | 74kw / 100HP |
rated speed | 2200r/min |
cylinder | internal diameter 4—100 |
maximum torque | 410N.m/1500rpm |
minimum fuel consumption | 245g/kw.h |
displacement | 4.5L |
Transmission system | |
model of hydraulic pump | fixed shaft power shift transmission |
gear shift | 2 forward shift 2 reverse shift |
torque | YJ-280 |
drive pump | CDXaf3016-IL |
flow | 16ml/r |
work pump | CBGj2063 |
flow | 63ml/r |
Steering system | |
type | articulated hydraulic steering |
model of steering control valve | BZZ5-250 |
model of turning control valve | YSF25S-00 |
steering angle left or right | 36±1° |
minimum turning radius | 5018(mm) |
Axles | |
main transmission type | single reduction |
wheel reduction type | wheel reduction |
Wheel | |
tire size | 16/17-20 |
front wheel pressure | 0.22Mpa |
rear wheel pressure | 0.20Mpa |
service braking | air over hydraulic disc on 4 wheels |
parking brake | manual parking brake |
Refill Capacity | |
fuel tank | 70L |
transmission | 25L |
front axle | 9KG |
rear axle | 9KG |
hydraulic tank | 140L |
|
|
ISO9001:2008 certificate

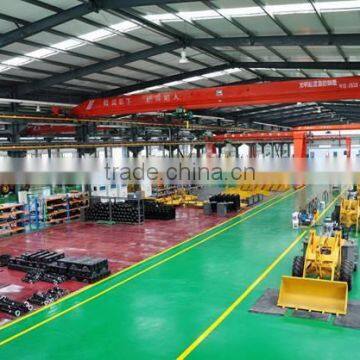

Our workshop:
OEM of Liu Gong,Foton Lovol and Power Plus
Common model:
JCB model:
