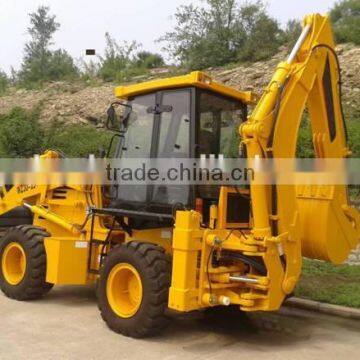

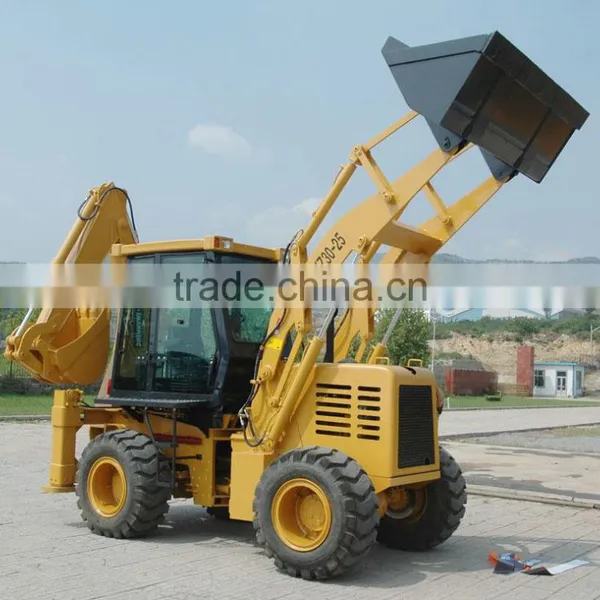

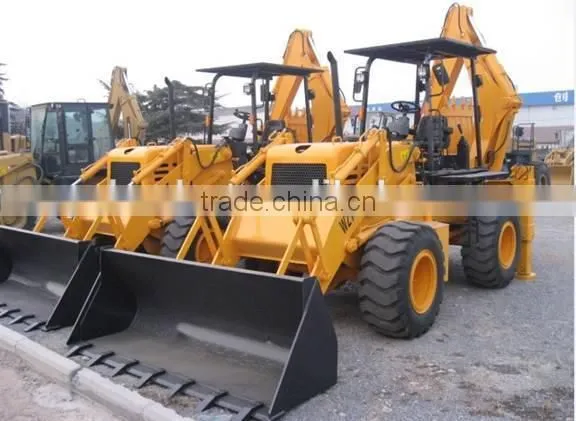

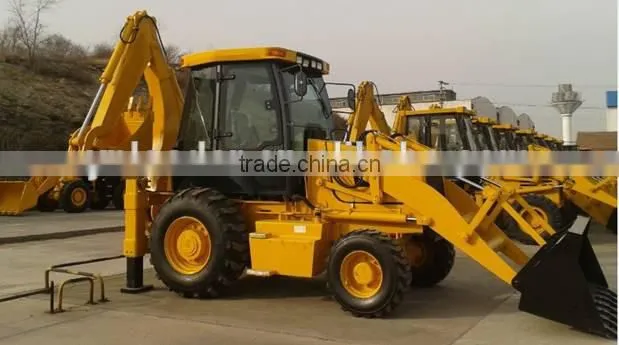

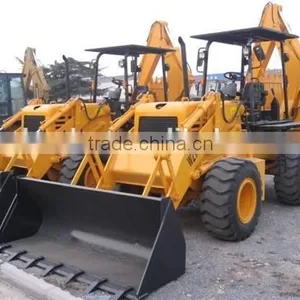

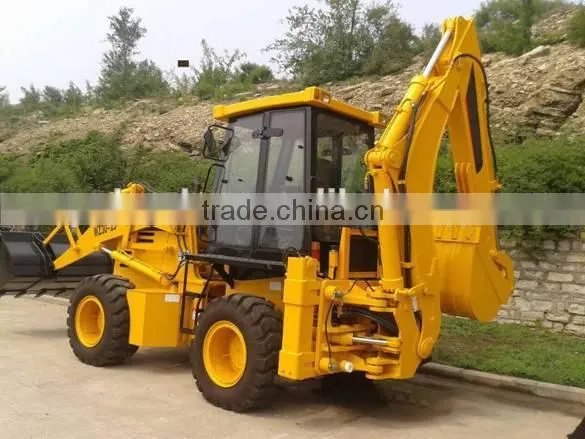

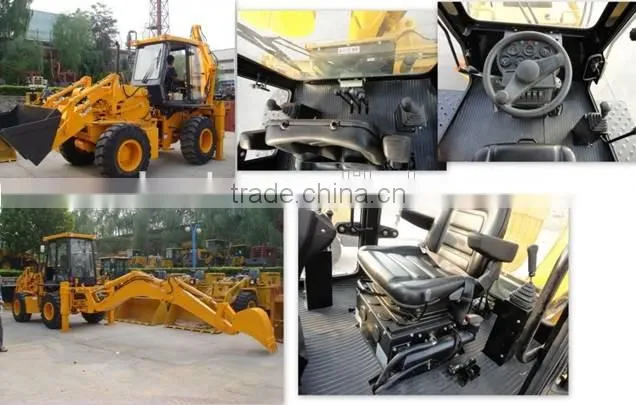

Help CenterFirst Class Best Sale Backhoe Loader 1.0cbm Bucket Capacity With Cheap Price but the Best Quality
Related Products
-
Hot Sale Mini Backhoe Loader YN870 1.2cbm Bucket CapacityNegotiableMOQ: 1 Set -
Best Sale Backhoe Loader 1.0cbm Bucket Capacity With Cheap Price but the Best Quality WZ30-25NegotiableMOQ: 1 Set
-
JCBMonolithic Cumminus Engine Compact WZ30-25Backhoe Loader Shan Dong Yineng China CE ApprovedNegotiableMOQ: 1 Set
-
Backhoe Loade(Cummins Engine)NegotiableMOQ: 1 Piece
-
WZ30-25 Backhoe LoaderNegotiableMOQ: 1 Piece
Length* Width * Height |
5910* 2268 * 3760(mm) |
Cab roof height : |
2900(mm) |
Wheel base : |
2250(mm) |
Track |
1640(mm) |
Min. ground clearance |
300(mm) |
system pressure | |
load hydraulic system |
18Mpa |
load hydraulic system |
18Mpa |
dig hydraulic system |
20Mpa |
steering hydraulic system |
12Mpa |
system flow |
120L/min |
System flow | |
|
four-wheel drive,fully hydraulic system |
total operating weight |
7640kg |
maximum speed |
22km/h |
maximum gradient capacity |
30° |
loading bucket capacity |
1.0 m3 |
rated loading |
2500KG |
maximum articulated height of bucket |
3400(mm) |
bucket discharge height |
2795(mm) |
bucket discharge distance |
1048(mm) |
loading lift capacity |
25KN |
bucket hydraulic translation function |
yes |
bucket lift time |
6.8s |
bucket lower time |
2.5s |
bucket discharge time |
1.2s |
maximum tractive force |
39KN |
maximum breakout force |
38KN |
backacter bucket capacity |
0.3m3 |
backacter discharge height |
3878(mm |
maximum digging depth |
4080(mm) |
maximum digging radius |
5688(mm) |
bucket slewing angle |
190° |
bucket digging capacity |
46KN |
bucket stick digging capacity |
31KN |
Diesel engine | |
model : |
CUMMINS 4BTA3.9-C100 |
type : |
4 cylinders |
rated power |
74kw / 100HP |
rated speed |
2200r/min |
cylinder |
internal diameter 4—100 |
maximum torque |
410N.m/1500rpm |
minimum fuel consumption |
245g/kw.h |
displacement |
4.5L |
Transmission system | |
model of hydraulic pump |
fixed shaft power shift transmission |
gear shift |
2 forward shift 2 reverse shift |
torque |
YJ-280 |
drive pump |
CDXaf3016-IL |
flow |
16ml/r |
work pump |
CBGj2063 |
flow |
63ml/r |
Steering system | |
type |
articulated hydraulic steering |
model of steering control valve |
BZZ5-250 |
model of turning control valve |
YSF25S-00 |
steering angle left or right |
36±1° |
minimum turning radius |
5018(mm) |
Axles | |
main transmission type |
single reduction |
wheel reduction type |
wheel reduction |
Wheel | |
tire size |
16/17-20 |
front wheel pressure |
0.22Mpa |
rear wheel pressure |
0.20Mpa |
service braking |
air over hydraulic disc on 4 wheels |
parking brake |
manual parking brake |
Refill Capacity | |
fuel tank |
70L |
transmission |
25L |
front axle |
9KG |
rear axle |
9KG |
hydraulic tank |
140L |
|
|
