Home > Manufacturing & Processing Machinery > Cutting & Fold-bend Machine > Bending Machine > XS-160 Copper Busbar Leveling Machine

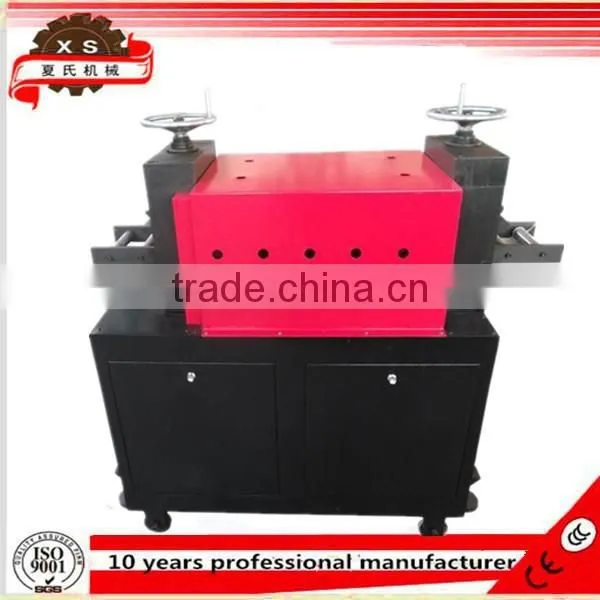

XS-160 Copper Busbar Leveling Machine
US$ 2,000 - 2,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Model Number:
XS-160
Material / Metal Processed:
Aluminum
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FMCMX-303K CNC Busbar Processing LineNegotiableMOQ: 1 Set -
MH12000 Vertical Wooden Beam Composer for WoodworkingUS$ 100 - 1,000MOQ: 1 Set
-
Automobile Semi-Axis Cross Wedge Rolling Mill and Swing Grinding Machine DA46-1250US$ 50,000 - 400,000MOQ: 1 Set
-
Double Shaft Shredder & Tyre Shredder & Plastic Shredding Machine YH-26075NegotiableMOQ: 1 Set
-
Used Tire Shredder Machine And Used Tyre Shredder Machine YH-26060NegotiableMOQ: 1 Set
Condition
New
Model Number
XS-160
Material / Metal Processed
Aluminum
Power
Cnc
Automation
Automatic
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Our busbar leveling machine has passed ISO9001-2008, CE certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website.
Instruction:
busbar leveling machine also called busbar straightening machine, busbar flattening machine, which is mainly used for busbar straightening.
Working principle and use:
1) Multi-roller forced leveling principle to achieve good effect of leveling.
2) With high efficiency and convenient to use.
It adopts multi-roller forced leveling principle, which makes irregular shaped busbar rows to be level state through sinuous movement. When the irregular shaped busbar rows get through the up-down dynamic rollers, the unordered deformation and inner stress will be removed. Then the busbar can be level enough.
Instruction:
busbar leveling machine also called busbar straightening machine, busbar flattening machine, which is mainly used for busbar straightening.
Working principle and use:
1) Multi-roller forced leveling principle to achieve good effect of leveling.
2) With high efficiency and convenient to use.
It adopts multi-roller forced leveling principle, which makes irregular shaped busbar rows to be level state through sinuous movement. When the irregular shaped busbar rows get through the up-down dynamic rollers, the unordered deformation and inner stress will be removed. Then the busbar can be level enough.
Technical parameters :
| Item | XS-160 | XS-300 |
| Material of busbar | Copper, Aluminum | Copper, Aluminum |
| Max.width of processing(mm) | 160 | 300 |
| Thickness range of processing(mm) | 3-15 | 3-15 |
| Quantity of leveling roller--up | 5 | 5 |
| Quantity of leveling roller--down | 6 | 6 |
| Rotational speed of roller axis(RPM) | 34 | 34 |
| Leveling roller speed(mm/min) | 6500 | 6500 |
| Diameter of leveling roller(mm) | Φ90 | Φ90 |
| Worktable height(mm) | 860 | 860 |
| Power of motor/voltage(KW/V) | 2.2/380 | 4/380 |
| Outline dimension L*W*H(mm) | 1300x800x1350 | 1300x950x1350 |
| Machine weight(KG) | 700 | 800 |
Price and payment term:
6-1 price:
Contact with me forwardly, there is discount price for you!
6-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T
Delivery time:
3 days after received the 30% deposit by T/T.
6-1 price:
Contact with me forwardly, there is discount price for you!
6-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T
Delivery time:
3 days after received the 30% deposit by T/T.
Details
Send Inquiry to This Supplier
Mrs. Christina Chen
Sales Manager
Guangxi Xiashi Machinery Equipment Co., Ltd.
Liuzhou, Guangxi, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Trading Company
Year Established
2010
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
