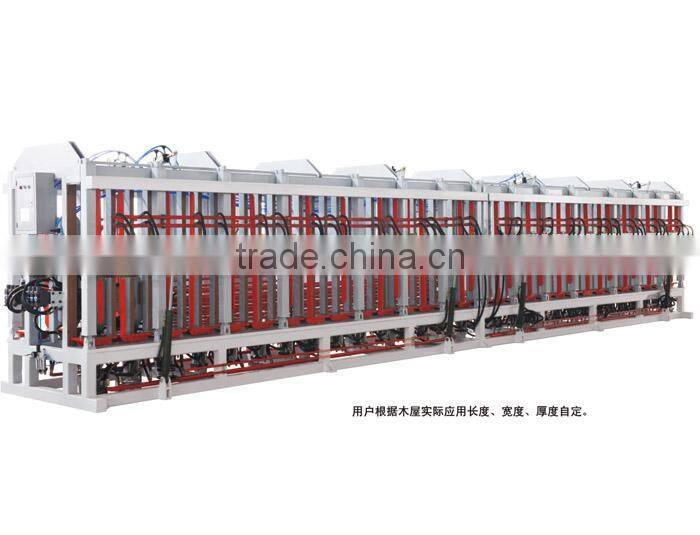

Help CenterMH12000 Vertical Wooden Beam Composer for Woodworking
Related Products
-
Automobile Semi-Axis Cross Wedge Rolling Mill and Swing Grinding Machine DA46-1250US$ 50,000 - 400,000MOQ: 1 Set -
Double Shaft Shredder & Tyre Shredder & Plastic Shredding Machine YH-26075NegotiableMOQ: 1 Set
-
Used Tire Shredder Machine And Used Tyre Shredder Machine YH-26060NegotiableMOQ: 1 Set
-
Powerful Double Shaft Shredder Plastic Shredding Machine YH-32075NegotiableMOQ: 1 Set
-
High Quality Double-shaft Shredder Machine, Paper Shredder,tyre Shredder,plastic Shredder YH-38100NegotiableMOQ: 1 Set
Product Description:
It is suitable for lateral or frontal press of large size timber and processing of variable
cross-section beams.
It is more simple loading with higher efficiency and possible to be multi-controlled according to customer's actual situation.
Feature
1. It is featured by stable movement, large pressure and uniform pressing by adopting the hydraulic principle, and can prevent reverse warping by exerting pressure above
or in front of workpiece, making gluing of laminated timber flat and perfect.
2. A pressure maintaining or supplementing mechanism in the hydraulic system
provides continuous gluing pressure and is good for improvement of quality.
3.Presser feet in the front can move left and right entirely according to specifications of workpieces.
4. Ashaped clamp carrier has two working faces, each of which can operate
independently, enjoying high efficiency and safe and reliable operation
Characteristics:
1.This machine adopts hydraulic principals characterized by a stable motion speed,huge pressure and still pressing.High density braced sheeting as back worktop and
pressure from the above and front can prevent the curved angle and make the board
glued completely.Low sanding and high output.
2.According to different working specifications(length or thickness),system pressure can be adjusted according to different pressure required.And there is pressure-supplement system,which ensure the continuous pressure.
Technical parameter
Model | MH12000 |
The largest processing size | 12000 x 230 x 1200 (mm) |
Top Cylinder doa. | ¢100 x 100 NO.32 |
Side Cylinder doa. | ¢ 40 x 150 NO.32 |
Side Lift Cylibnder doa. | ¢ 63 x 400 NO.8 |
Hydraulic System Pressure | 13Mpa |
Top Cylinder Pressure | 13Mpa |
Top Cylinder maximum pressure | 320T |
Dimensions(lengthXwidthXheight) | 12000 x 1230 x 2300 (mm) |
Motor Power | 5.5kw |
Weight | 16T |

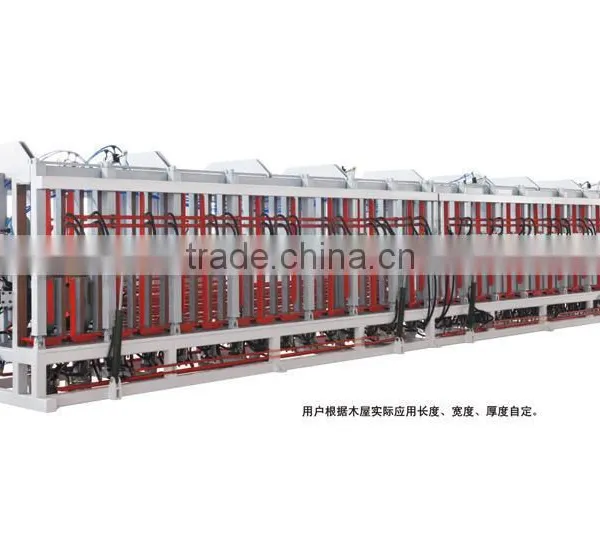

Note:According to beam's length,width,and thickness of wooden house, user customize by self.

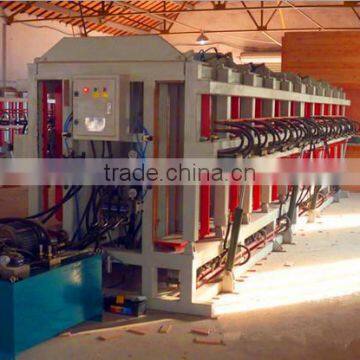

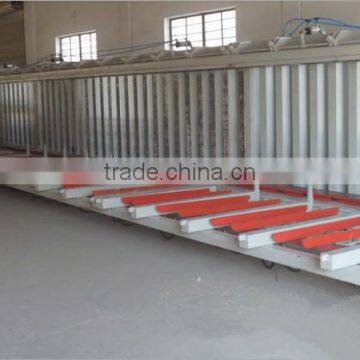

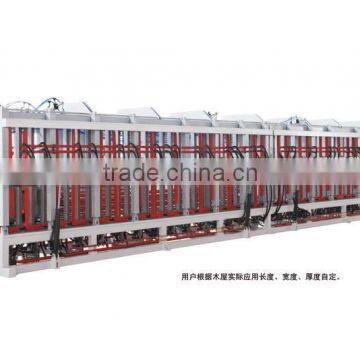

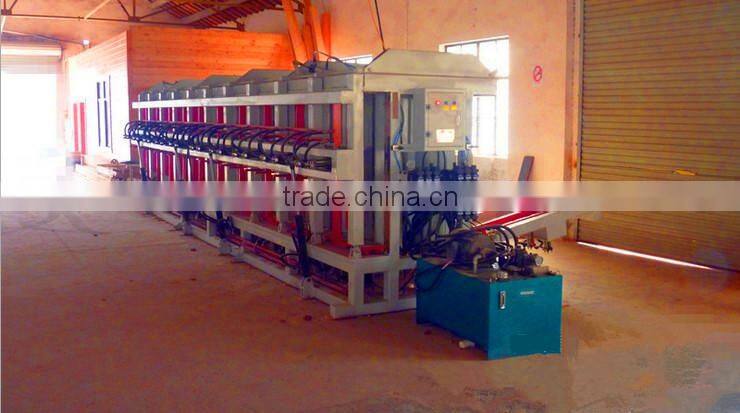

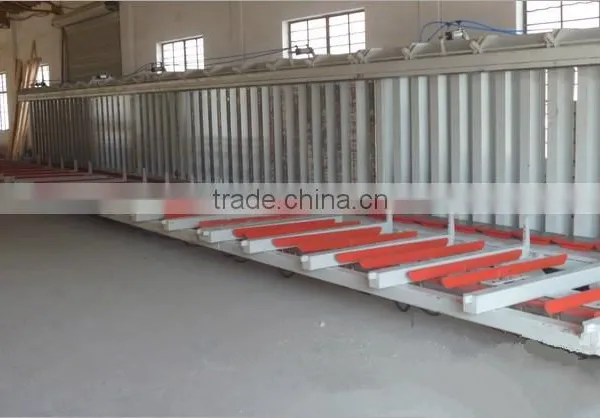

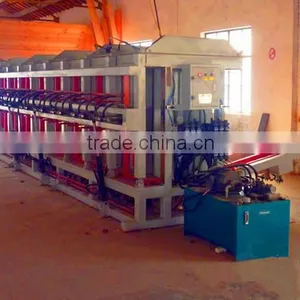

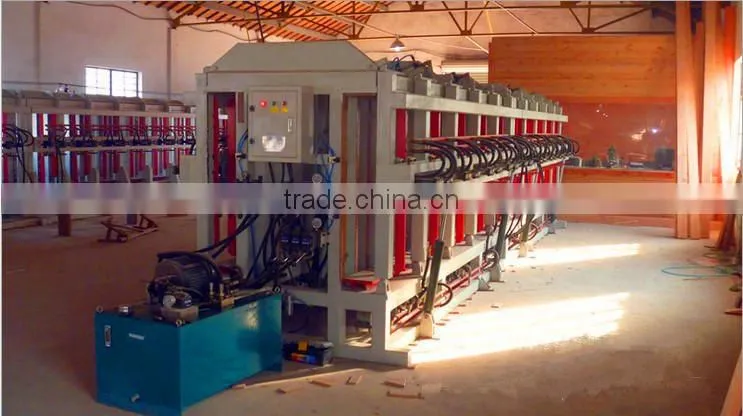

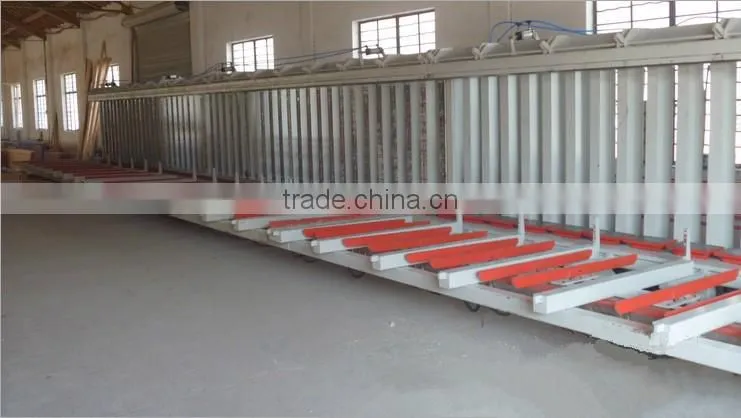

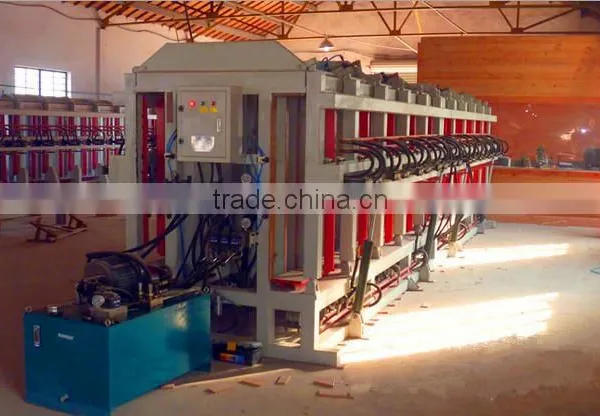

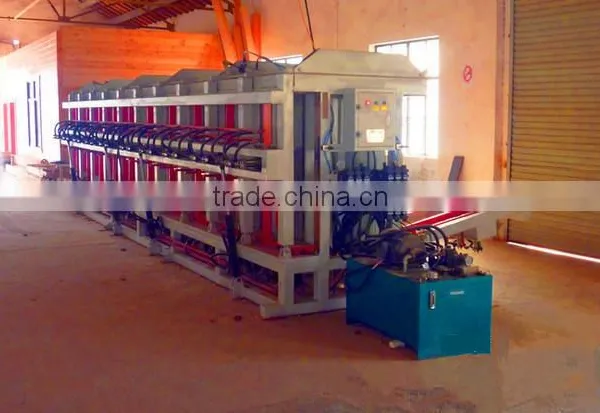

Picture details
