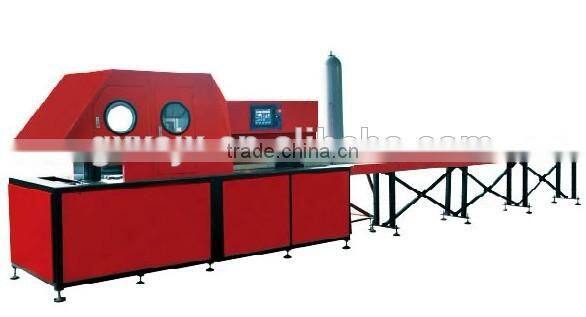

FMCMX-303K CNC Busbar Processing Line
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
FMCMX-303K
Type:
Hydraulic Cutting Tools
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
MH12000 Vertical Wooden Beam Composer for WoodworkingUS$ 100 - 1,000MOQ: 1 Set -
Automobile Semi-Axis Cross Wedge Rolling Mill and Swing Grinding Machine DA46-1250US$ 50,000 - 400,000MOQ: 1 Set
-
Double Shaft Shredder & Tyre Shredder & Plastic Shredding Machine YH-26075NegotiableMOQ: 1 Set
-
Used Tire Shredder Machine And Used Tyre Shredder Machine YH-26060NegotiableMOQ: 1 Set
-
Powerful Double Shaft Shredder Plastic Shredding Machine YH-32075NegotiableMOQ: 1 Set
Model Number
FMCMX-303K
Type
Hydraulic Cutting Tools

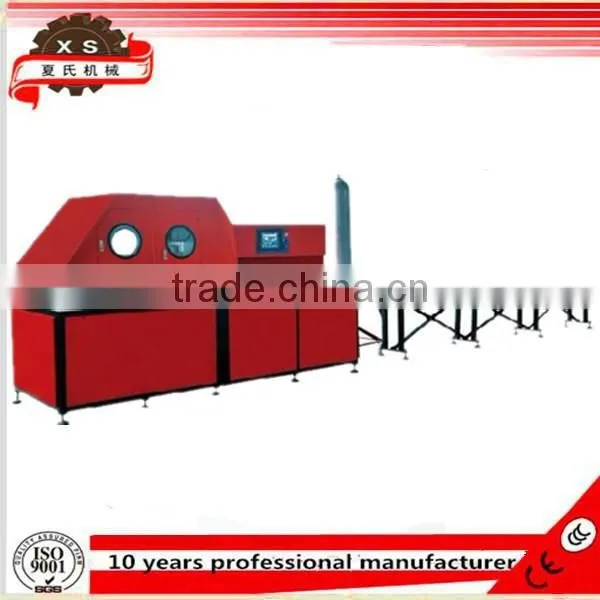

Product Description
FMCMX-303K busbar machine has passed ISO9001-2008, CE, patent certificate, and the machine also passed Chinese government exporting quality assurance quality certificate. 4 years gold supplier in alibaba website. We are the only one manufacture in busbar whole processing line.
Instruction:
Instruction:
busbar machine is also called busbar processing machine, busbar punching bending shearing machine, copper busbar machine, aluminum busbar machine, which is mainly used in electric industry.
CNC busbar processing center including two types FMCMX-303K and FMCMX-303C
This machine is devised by our engineer, only our factory can manufacture this machine in the world at present.
4, Main Characteristics:
1) This processing center is a special equipment used for copper or aluminum busbar processing in electric power, equipments for high and low voltage and busbar groove industry with characteristics of high efficiency, low consume, labor-saving, environmental, high accuracy, attractive in appearance, easy to operate and so on.

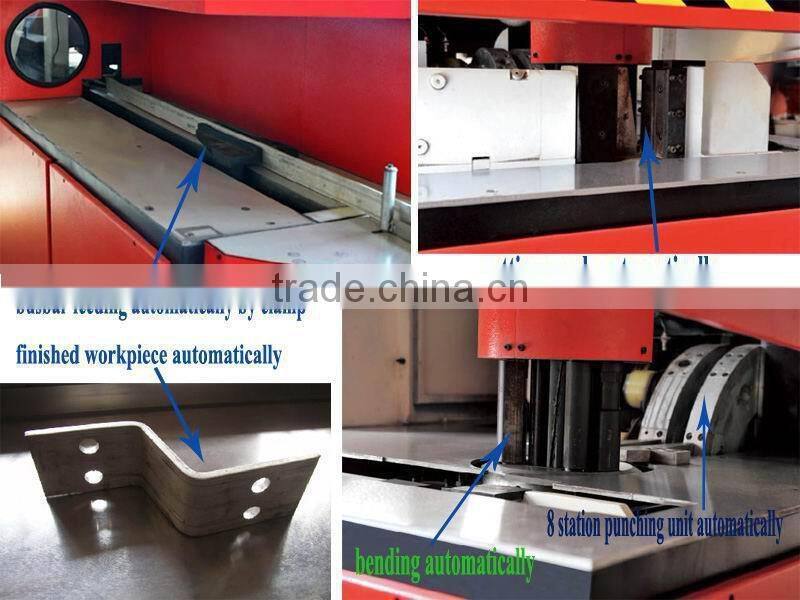

2) This center has original processing principle and method, which is completely different from the former conception of processing. It is adopted 4-axis control and 1-time clamping method. Work of punching, bending, shearing and so on can be finished without the aid of operator from rough material to finished work pieces, only clamping the banded pre-processing busbar to its right position for one time and matching with related programming operation. Work pieces are automatically finished and the waste is recycled completely.
3) This center adopts double pneumatic clamps, which achieves interactive accomplishment of automatic feeding without limiting the length of busbar with the location accuracy of ±0.1mm.
4) Punching unit takes 8-die turret punching method. Choosing die, locating and accurately controlling pitch of holes are finished automatically.
5) Adopting special bidirectional bending system to guarantee left-right bending finished one time. The precision of bending angle is controlled in ±0.5°. Shearing unit takes the method of punching. Work pieces surface is neat and smooth.
5, technical parameters:
CNC busbar processing center including two types FMCMX-303K and FMCMX-303C
This machine is devised by our engineer, only our factory can manufacture this machine in the world at present.
4, Main Characteristics:
1) This processing center is a special equipment used for copper or aluminum busbar processing in electric power, equipments for high and low voltage and busbar groove industry with characteristics of high efficiency, low consume, labor-saving, environmental, high accuracy, attractive in appearance, easy to operate and so on.
2) This center has original processing principle and method, which is completely different from the former conception of processing. It is adopted 4-axis control and 1-time clamping method. Work of punching, bending, shearing and so on can be finished without the aid of operator from rough material to finished work pieces, only clamping the banded pre-processing busbar to its right position for one time and matching with related programming operation. Work pieces are automatically finished and the waste is recycled completely.
3) This center adopts double pneumatic clamps, which achieves interactive accomplishment of automatic feeding without limiting the length of busbar with the location accuracy of ±0.1mm.
4) Punching unit takes 8-die turret punching method. Choosing die, locating and accurately controlling pitch of holes are finished automatically.
5) Adopting special bidirectional bending system to guarantee left-right bending finished one time. The precision of bending angle is controlled in ±0.5°. Shearing unit takes the method of punching. Work pieces surface is neat and smooth.
5, technical parameters:
| Punching | Max power (KN) | 300 |
| Punching Diameter (mm) | Φ4.3~Φ25 (copper and aluminum) | |
| Max thickness (mm) | 12 (copper and aluminum) | |
| Max width (mm) | 150 (copper and aluminum) | |
| Shearing | Max power (KN) | 300 |
| Max thickness (mm) | 12 (copper and aluminum) | |
| Max width (mm) | 150 (copper and aluminum) | |
| Bending | Max thickness (mm) | 12 (copper and aluminum) |
| Max width (mm) | 150 (copper and aluminum) | |
| Total power of Electric motor | 12KW | |
| Outline Dimensions(mm) | 8500L×1240W×1750H | |
| Weight | T | 4.2 |
6, Processing principle instruction

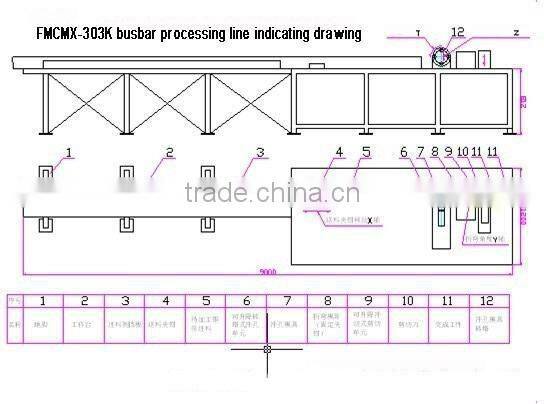

Accessory drawing1 is this machine processing principle. The machine will work after putting the processing copper material on the worktable and locating using feeding clamp 4 fixed tightly. When the clamp feeds copper to punching unit, it can control holes distance of X axis and punching unit can control holes distance of Z axis. Turret 12 T axis choose model to start punching work. The feeding clamp will continue feeding cooper to bending position after finishing punching. Then fixing the clamp 8 tightly, the bending procedure will start after setting of angle and choice of right or left direction. (at the time, shearing unit 9 will be in decline state for supplying bending space. ) After bending, clamp 4 will feed copper to cutting position. The unit 9 will rise to original position, cutting knife 10 cuts it, then the work piece is finished.
When the length of processing work piece is more than feeding clamp route, clamp 4 and 8 will finish the work together. Clamp 4 feed materials to clamp 8 for fixing, then clamp 4 will return with no-load and works again. this method can used for processing of 600mm length work pieces.
7, Difference between FMCMX-303K with other busbar processing line in the world:
| performance | FMCMX-303K CNC processing center | Popular CNC processing center in the world |
| Unit | Punching, bending, shearing | Punching, shearing |
| Automatic feeding | Copper board feeding is vertical, which is not scratched easily | Copper board feeding is horizontal, which is scratched easily |
| Quantity of CNC axis | 4 axes | 2 axes |
Our company also can make automatic processing center with only one set punching and shearing, but it is vertical feeding method and turret model unit.
8, Drawing of FMCMX-303K processing procedure
This machine is an advanced equipment in technical craft and automation level all over the world at present. The existing busbar processing center only includes punching and shearing unit, bending work is finished by human. It means the product finished automatically is only semi-manufactured goods. The following is a performance contrast between our processing center with the popular processing center in the world.
9, Accessories list or configuration :| No. | Name | Unit | quantity |
| 1 | Busbar machine | Set | 1 |
| 2 | Operation instruction | book | 1 |
| 3 | key | Set | 1 |
| 4 | Punching die with single hole: Φ7, Φ9, Φ11, Φ13, Φ15, Φ17, Φ19, Φ21 | Set | 1 of each |
| 5 | Double holes die pedestal | Set | 1 |
| 6 | Cutting die | Set | 1 |
| 7 | Horizontal bending convex die | set | 1 |
| 8 | Vertical bending convex die | ser | 1 |
| 9 | Horizontal bending electric concave die | set | 1 |
| 10 | vertical bending electric concave die | set | 1 |
| 11 | Foot-touch switch | PC | 2 |
| 12 | inner hexagon spanner | Set | 1 |
| 13 | spanner 27-30 | PC | 1 |
| 14 | Sealing ring | Wrap | 1 |
| 15 | oil filler | PC | 1 |
| 16 | oil filler pipe | PC | 1 |
| 17 | oil gun | PC | 1 |
| 18 | Nuts and bolts of bottom | PC | 4 |
10, Price and payment term:
10-1 price:
Contact with me forwardly, there is discount price for you!
10-2 payment term: (ESCROW payment is safer and convenient for you)
30% deposit and the balance paid against the copy of B/L in 5 days by T/T
11, Delivery time:
30 days after received the 30% deposit by T/T.
12, Details of busbar processing:
