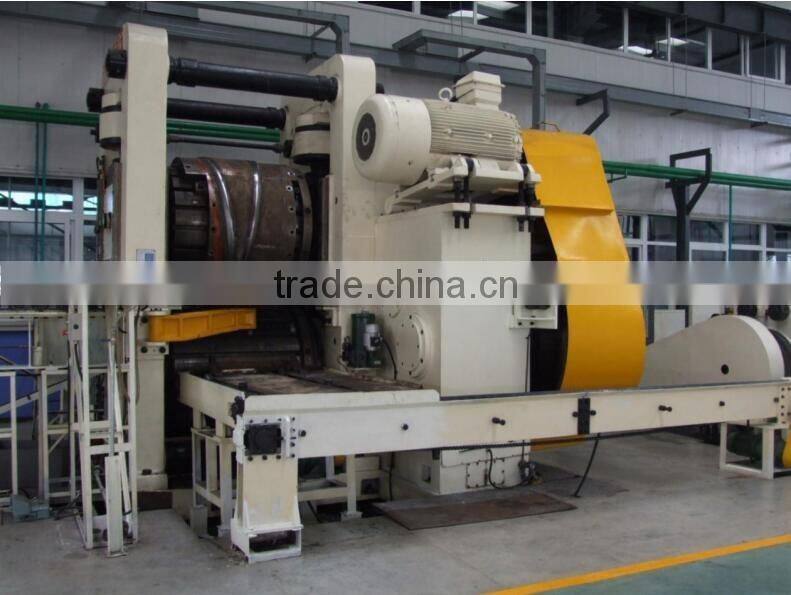

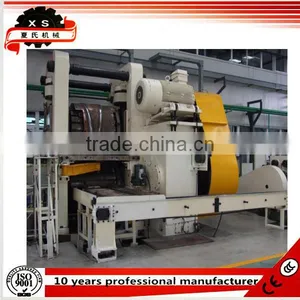

Help CenterAutomobile Semi-Axis Cross Wedge Rolling Mill and Swing Grinding Machine DA46-1250
Related Products
-
Double Shaft Shredder & Tyre Shredder & Plastic Shredding Machine YH-26075NegotiableMOQ: 1 Set -
Used Tire Shredder Machine And Used Tyre Shredder Machine YH-26060NegotiableMOQ: 1 Set
-
Powerful Double Shaft Shredder Plastic Shredding Machine YH-32075NegotiableMOQ: 1 Set
-
High Quality Double-shaft Shredder Machine, Paper Shredder,tyre Shredder,plastic Shredder YH-38100NegotiableMOQ: 1 Set
-
Plastic Recycling PET Plastics Shredder Machine YH-44140NegotiableMOQ: 1 Set
Main Features of Structure
(1)Reasonable structure design, improved the precision of equipment,(The flatness of formed workpiece can be up to 0.30 mm),so it reduces the processing capacity, save the materials and time.
(2)A constant clamping force compensation system, to avoid the opening and flash of the mould.
(3)The fast clamping speed of the clamping mould (100 mm/s), fast open mould (200 mm/s), the quick return of the swinging head(100 mm/s) reduces the auxiliary work time, improve the production efficiency.At the same time, reduces the time of the heated parts stay in the mould, lengthen the life-span of the mould.
(4)Swing forging forming and process the deformation at the same position on the workpiece, lengthen the length of the guide bar, so as to improve the valve stem and disc of verticality, calibration process can reduce the artifacts.
(5)The formed of the swing forging and process the deformation at the same place of the workpiece, lengthen the bar, finally increase the verticality of the bar and the disc, and reduce the calibration Process.
(6)To load and unload the material at the end of the equipment, reduce the labor tensity.
(7)This equipment has realized the full hydraulic driven, and set with the overload protection, so can avoid the nausea cars phenomenon and bearing damage efficiently.
(8)Easy to change the damage part.
Main Parameter
billet heating temperature:1100℃~1200℃
Item |
Unit |
Parameter |
|
Nominal force |
KN |
2600 |
|
Max Dia Hot Roll Disc (final forging temperature≥900℃) |
mm |
250 |
|
Swing Head Speed. |
r/min |
200 |
|
Feeding Speed |
mm/r |
0.5-3 |
|
swing angle |
degree |
2 |
|
swinging head movement. |
Type |
Round |
|
Max Master Cylinder Stroke |
mm |
400 |
|
Maximum pressure of liquid |
MPa |
25 |
|
Max.mold closing force |
KN |
190 |
|
The maximum clamping force (Adjustable) |
KN |
190 |
|
Master cylinder speed |
Max Feeding |
mm/s |
70 |
Max Return |
mm/s |
70 |
|
Max Clamping billet diameter |
mm |
65(The finest point of the bar of billet ) |
|
Maximum loading length |
mm |
1500 |
|
Motor Power |
KW |
78 |
|
