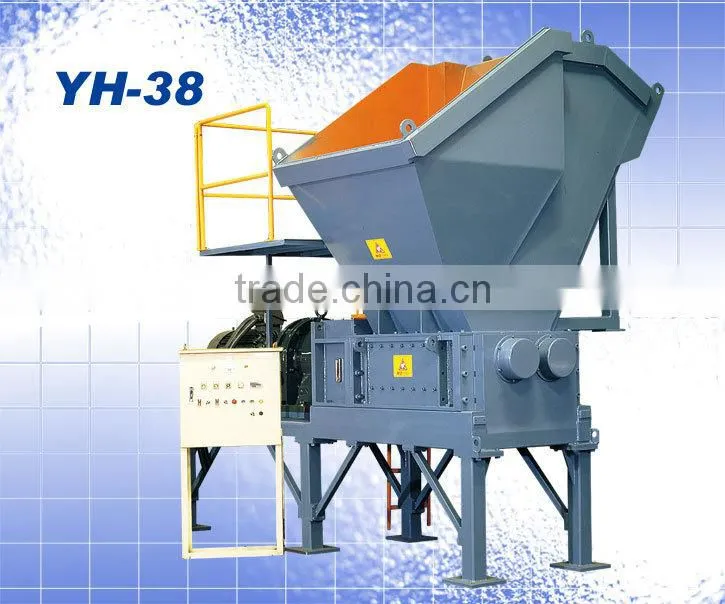

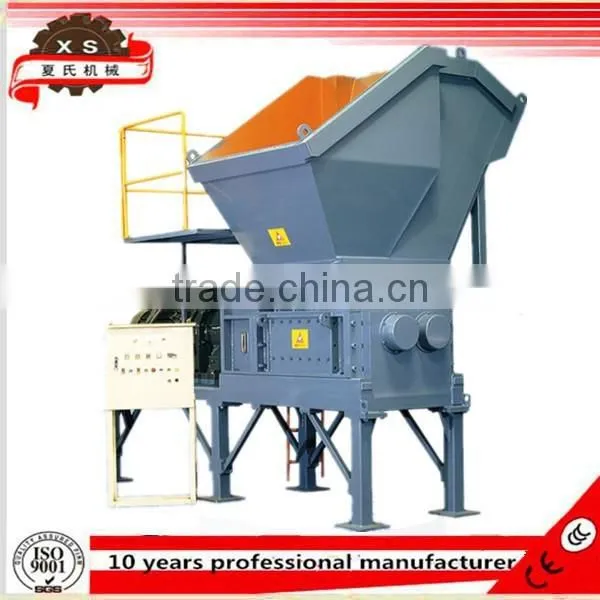

YH-38 POWERFUL SHREDDER
Introduction
YH-38 Series especially for bulky plastic products, eliminate the disadvantages of traditional high horse power crusher ,also for cracking unusual objects, waste tires,wood,baketite, wires & cable,rubber,paper, aluminum can etc....
Character and structure
Twin shaft constructed with claw knives for extremely powerful shredding capacity.
The knives are made of special alloy steel, heat-treatment, can be replace by piece and re-welded.
Motor combined with gear box drive, low-speed with high torque ensuring superior output.
The heavy pitch gear are precision manufactured from special alloy steel, heat-treatment, hardened for durability.
Oil bath lubricated gear box assures smooth running ,low noise, high torque and durability.
With low speed and high-torque designed, provide low noise and lesser dust, with friendly environment working place.
Technical parameter
| Model | YH-38100 | YH-38115 | YH-38130 |
| Drive | Electric/Hydraulic | ||
| Motor | 60-75HP | 60-90HP | 60-100HP |
| Cutter's diameter | φ380mm | φ380mm | φ380mm |
| Cutter's Shaft diameter | 130mm | 130mm | 130mm |
| Cutter's thickness | 30 / 35 / 40mm | 30 / 35 / 40mm | 35 / 40 / 45mm |
| Cutter's peak High | 35mm | 35mm | 35mm |
| Spacer diameter | φ170mm | φ170mm | φ170mm |
| Spacer thickness | 30.3 /35.3 / 40.3mm | 30.3 /35.3 / 40.3mm | 35.3 / 40.3 / 55.3mm |
| Chamber | 705 x1000mm | 705 x1150mm | 705 x 1300mm |
| Dimension (L*W*H) | 3250x1025x2055mmmm | 3395x1025x2055mm | 3540x1025x2055mm |
| Hopper (E*F*G) | 1408x1180x 915mm | 1552x1180x 915mm | 1696x1180x 915mm |
| Input High (H) | 2055mm | 2055mm | 2055mm |
| Trestle High | 650mm | 650mm | 650mm |
| Weight | 4650kg | 5225kg | 5800kg |
|
|
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
