YQ41-40T Single - Column Hydraulic Straightening and Mounting Press
- guangzhou
- T/T Credit Card PayPal
You May Like
-
Rubber Compression Molding Hydraulic Press Hydraulic Sheet Drawing Press YT28
-
Stainless Steel Pot Making Hydraulic Press Machinery 400t Hydraulic Press YT28
-
Hydraulic CNC Press Brake WC67K-160T/3200
-
Q11 Foot Operate Metal Cutting Machine , Foot Pedal Cutting Machines Q11-3x1600
-
Steel Plate Guillotine Shearing Machine, Metal Cutting Machine QC12Y-6X3200
-
QC12Y-30x2500 Steel Plate Rolling Machine, Guillotine Shearing Machine,hydraulic Shearing Machine With Low Price
Product Details
| Condition | New | Place of Origin | Guangxi, China | |
| Brand Name | XIASHI | Model Number | YH41 | |
| Voltage | 220V/380V | Power(W) | 7.5kw | |
| Dimension(L*W*H) | 3250*2850*2650mm | Weight | 5000kg | |
| Certification | ISO CE | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

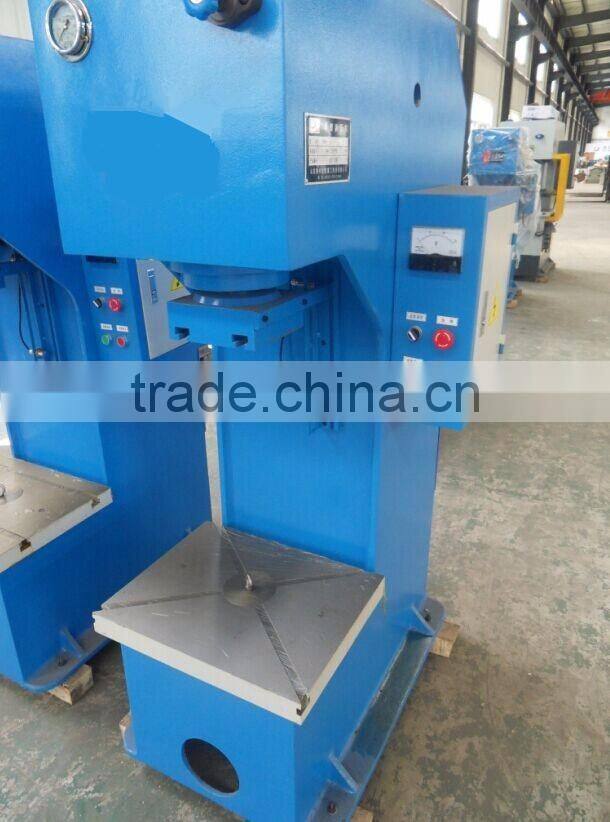

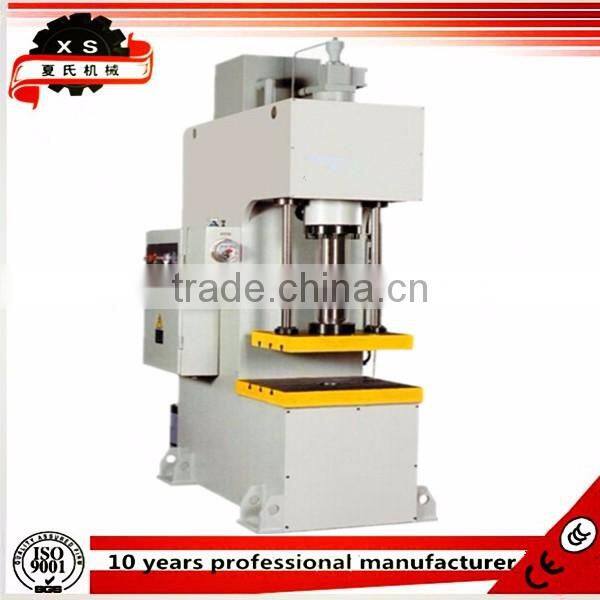

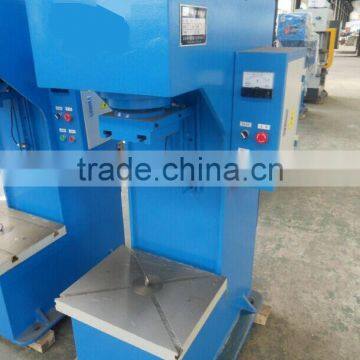

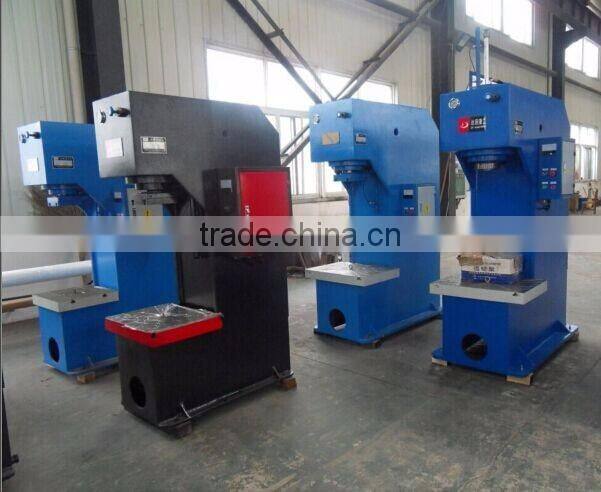

YQ41-40T Single Column press machine
Specifications
hydraulic press
petitive price
3.good performance
4.easy to operate
5.structural reliability
Appliance field :
This series hydraulic press mainly applies to the proofread,assemble of axle
component and section bar,the bending , impressing of the panel component ,
The stretch plastic products of simple component , and the use of other line , like Machinery tool, combustion engine , spinning , axle , bearing, washing machine , automobile motor, air conditioner motor, electrical equipment ,defense industry enterprise and foreign-funded enterprises assemble production line .
Features:
Fuselage and the single column hydraulic press of company's production are C type single arm type structures ,Itadopts the whole CO2 welding of steel plate, and passes through tempering ageing treatment after welding, Ensure that fuselage never warps. Hydraulic system is located in fuselage , outside type is beautiful, Easy to Operate may expand wide working scope , it Uses 3 surfaces the space extended hydraulic
Technical parameters
Model | YQ41-20T | YQ41-40T | YQ41-60T | YQ41-100T | YQ41-200T | YQ41-315T | YQ41-500T | |
nominal pressure(KN) | 200 | 400 | 600 | 1000 | 2000 | 3150 | 5000 | |
working pressure of liquid(mpa) | 20 | 20 | 30 | 28 | 28 | 28 | 25 | |
throat depth(mm) | 200 | 220 | 240 | 280 | 300 | 360 | 500 | |
stroke(mm) | 240 | 260 | 260 | 300 | 360 | 600 | 600 | |
working speed(mm/s) | 18 | 15 | 12 | 18 | 10 | 18 | 30 | |
return speed(mm/s) | 25 | 22 | 20 | 30 | 20 | 40 | 60 | |
pressure head to the table the maximum distance | 500 | 550 | 700 | 800 | 800 | 1000 | 1000 | |
dimension of table(mm) | front back | 400 | 400 | 450 | 500 | 600 | 800 | 1000 |
| left right | 500 | 500 | 600 | 700 | 600 | 1000 | 1200 |
motor power(kw) | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 15 | 30 | |

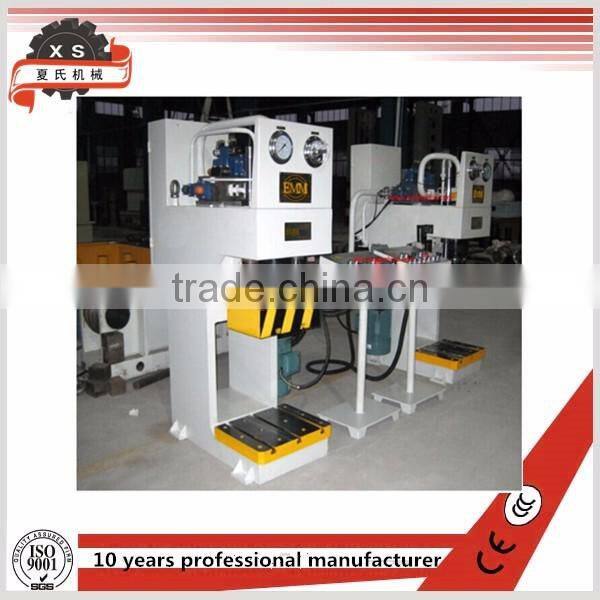

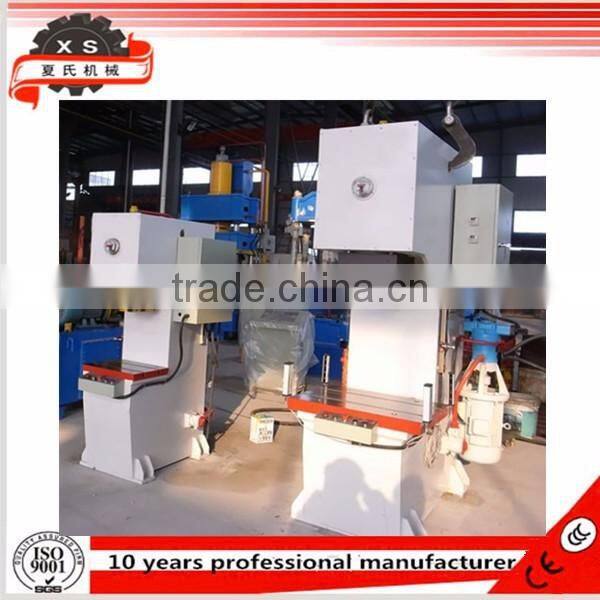

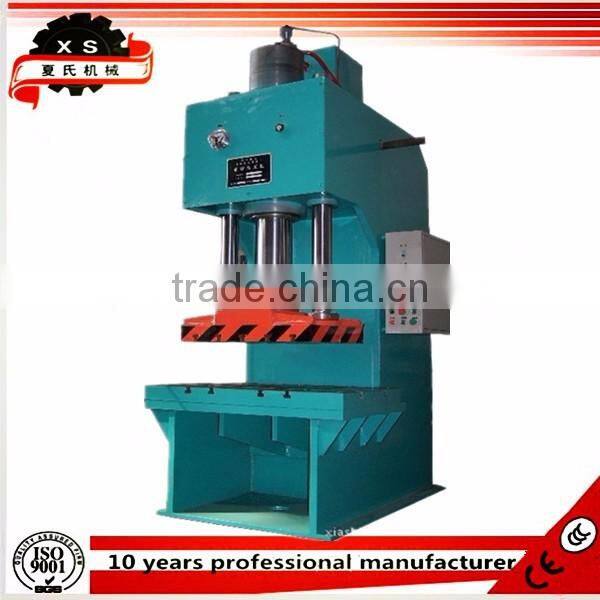

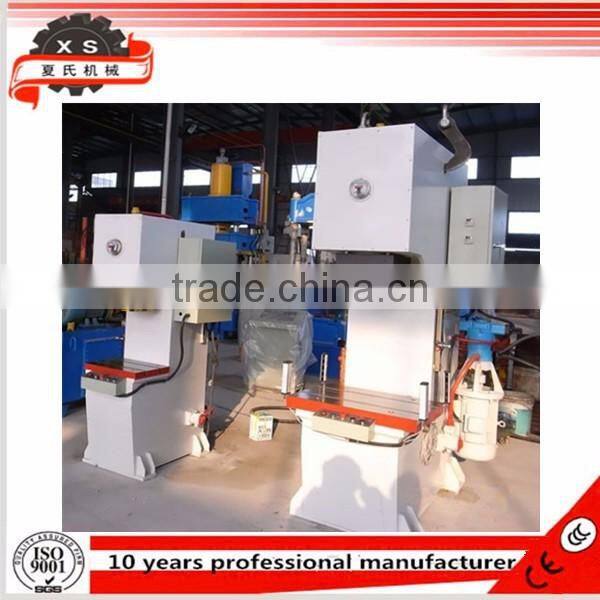

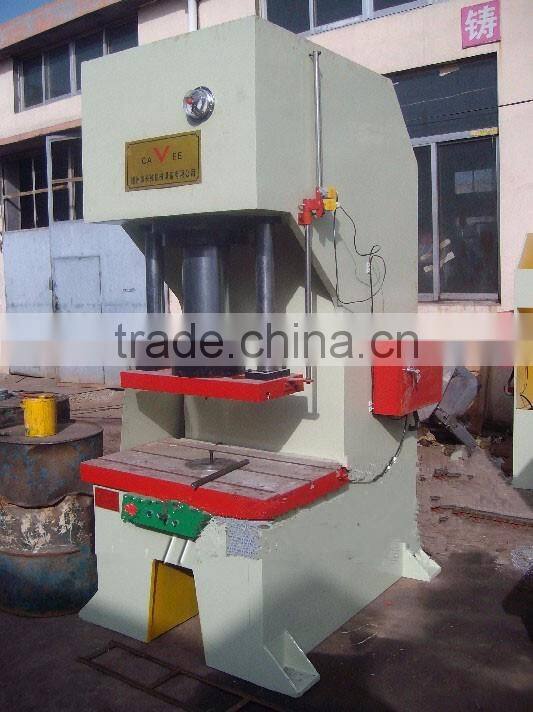

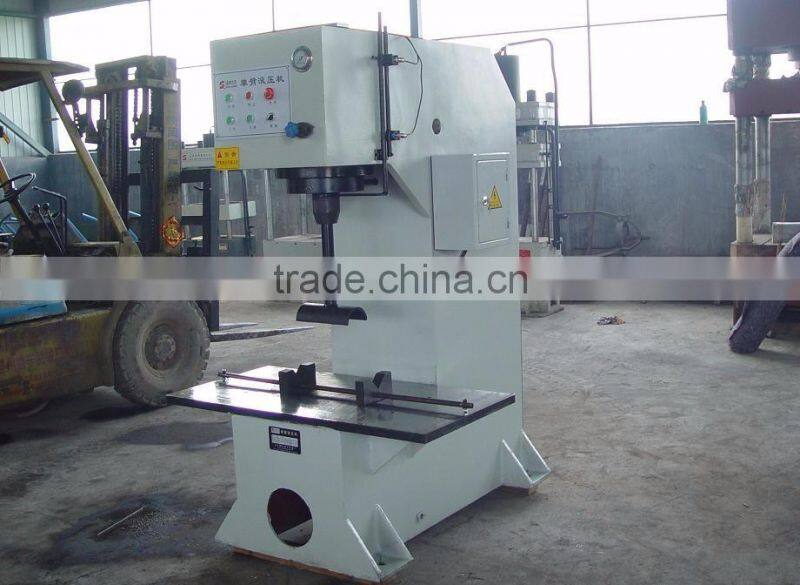

Other models of hydraulic press machine
