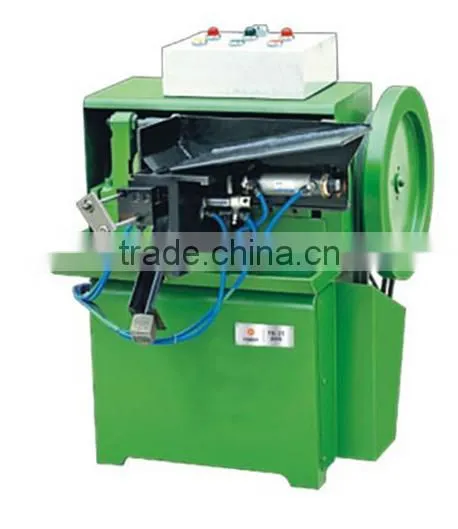

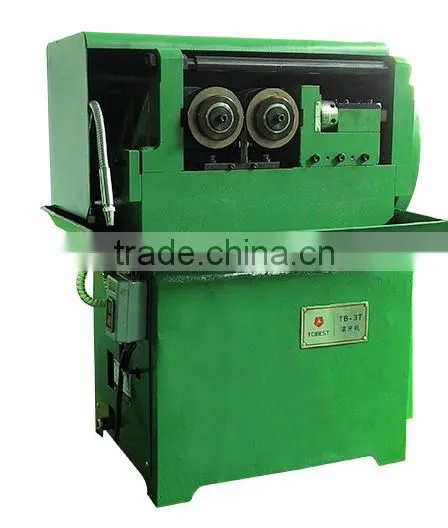

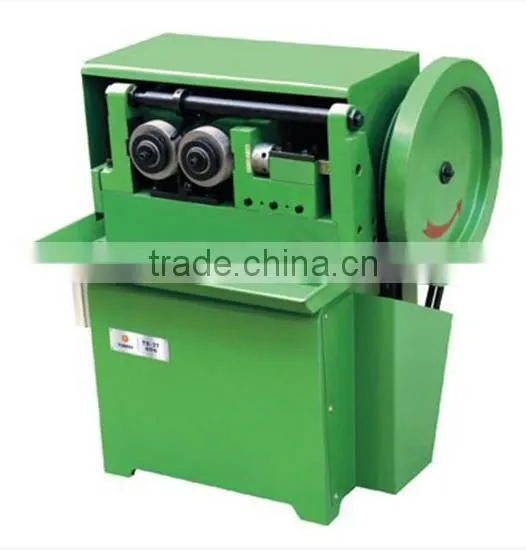

High Speed Automatic Screw Making Rolling Machine TB-3T
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
screw making
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Rebar Thread Rolling Machine for Steel Rod and Tube TB-3TUS$ 1,000 - 10,000MOQ: 1 Set -
High Speed Solid Bar Thread Rolling Machine XS-3TGTUS$ 1,000 - 10,000MOQ: 1 Set
-
Three Rollers Pipe Threading Machine Automatic Thread Rolling Machine XS-16GTUS$ 1,000 - 10,000MOQ: 1 Set
-
Three Rollers Screw Thread Machining Center XS-16GTUS$ 1,000 - 10,000MOQ: 1 Set
-
High Quality W11-16*2000 Three-roller Manual Plate Rolling/sheet Metal Rolling Machine With Low PriceUS$ 2,000 - 2,500MOQ: 1 Set
Condition
New
Application
screw making
Place of Origin
Guangdong, China
Model Number
TB3T
Voltage
380V/220V
Power(W)
1HP(735w)
Dimension(L*W*H)
780x680x870mm
Weight
280kg
Certification
ISO CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
High Speed Automatic Screw Making Rolling Machine TB-3T
Feature :

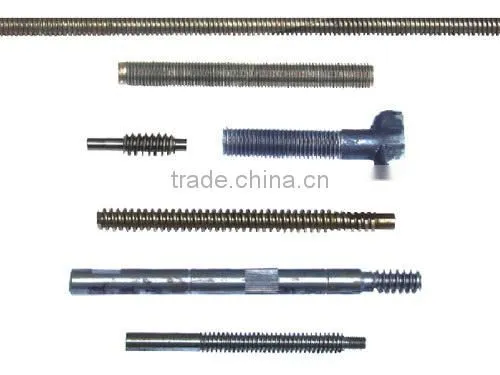

1.Suitable for various shaft-type hardware for different industries.
2.With simplified structure, adopt eccentric-type tool-forward mode for extrusion process.
3.Internal or external placement for oil tank available, so the space can be saved and easy to clean.
4.Each rolling die is matched with proper center plate so that the machine can be adjusted easily.
|
Model Number |
TB-3T | Supply voltage | 380V |
| Diameter of workpieces | φ2-φ10/mm | Weight(reference) | 280(KG) |
| Range of pitch rolled | 0.4-1.5P | Shipping measurement(L*W*H) | 780*680*870mm |
| length of thread rolled | 28mm | Dimension(L*W*H) | 650*600*750 mm |
| Spindle speed | 27rpm | Bearing brand | NSK,UBC |
| Outside diameter of rolling die | φ100mm | Certification | ISO 9001-2008, CE |
| Inside diameter of rolling die | φ50.5mm | Application | bars,solid pipe,solid tube |
| Thickness of rolling die | 30mm | Brand Name | Tobest |
| Distance between the roller shaft | 90-130mm | Color | green(or according to your need) |
| Main power motor | 1HP(735W) | Warranty | 12 months |
| Distance from lathe bed to rolling die | 85mm |
