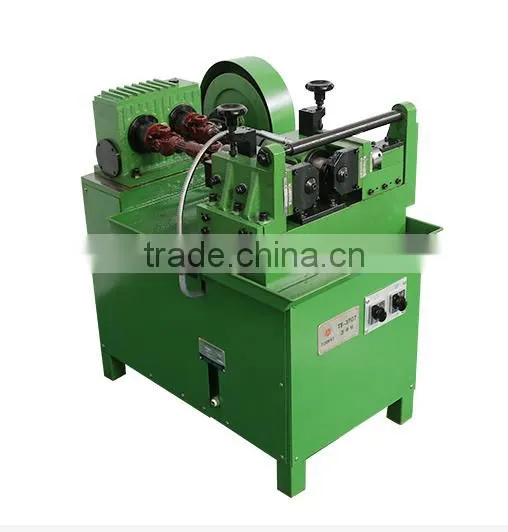

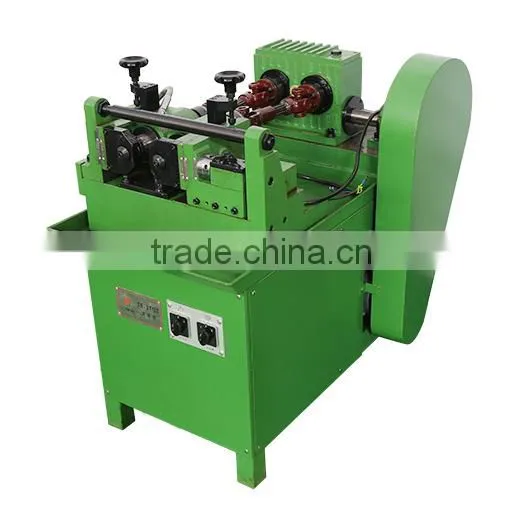

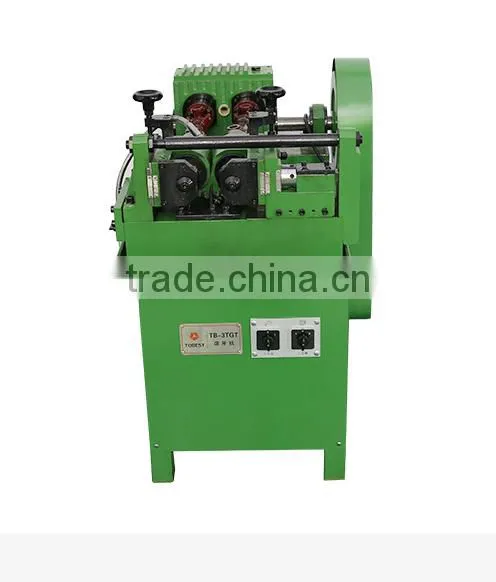

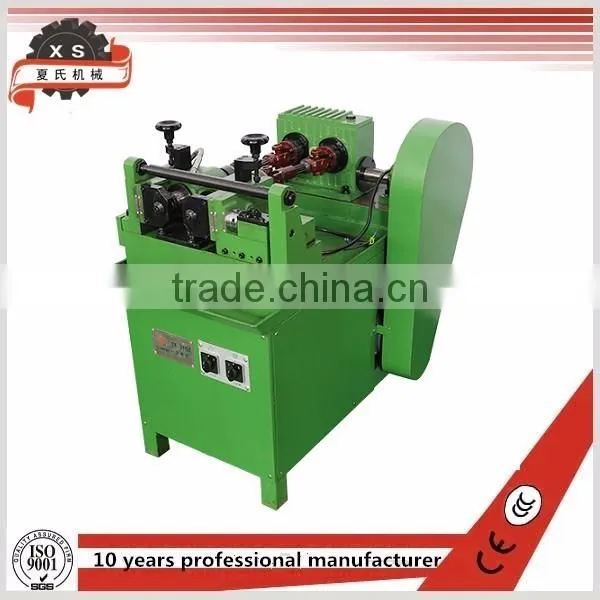

High Speed Solid Bar Thread Rolling Machine XS-3TGT

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

screw making

Place of Origin:

Guangdong, China

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application screw making

Place of Origin Guangdong, China

Model Number XS-3TGT

Voltage 380V

Power(W) 2HP(1470W)

Dimension(L*W*H) 650*600*750mm

Weight 440kg

Certification ISO CE

Warranty One Year

After-sales Service Provided Engineers available to service machinery overseas

Application:

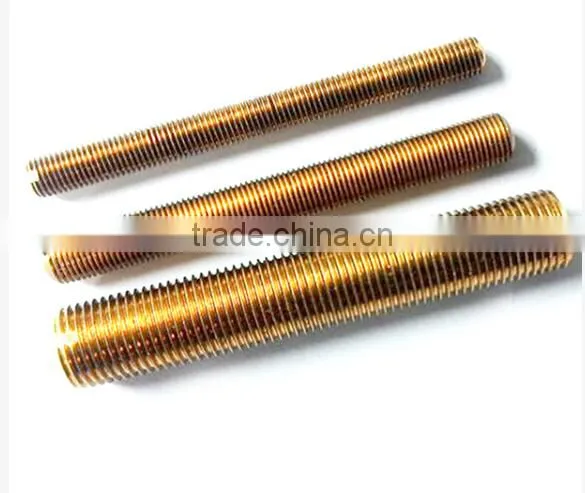

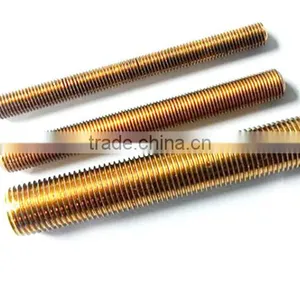

All kinds of threaded rods, bars; anchor bolts, ball screw, lead screw, railway rivet and bolts, fasteners, etc.

Feature :

1.Suitable for various shaft-type hardware for different industries.

2.With simplified structure, adopt eccentric-type tool-forward mode for extrusion process.

3.Internal or external placement for oil tank available, so the space can be saved and easy to clean.

4.Each rolling die is matched with proper center plate so that the machine can be adjusted easily.

Model Number	TB-3TGT	Supply voltage	380V
Work piece diameter	φ2-φ10/mm	Weight(reference)	440(KG)
Range of pitch rolled	0.4-1.5P	Package Dimension(LWH)	880760760mm
length of thread rolled	no limited	Dimension(LWH)	650600750mm
Spindle speed	50rpm	Bearing brand	NSK,UBC
Outside diameter of rolling die	φ100mm	Certification	ISO 9001-2008, CE
Inside diameter of rolling die	φ50.5mm	Application	bars,solid pipe,solid tube
Thickness of rolling die	30mm	Brand Name	Tobest
Distance between die spindles	90-130mm	Color	green(or according to your need)
Machine motor	2HP(1470W)	Package	wooden or depends on your need
Distance from lathe bed to rolling die	85mm	Warranty	12 months
