Home > Manufacturing & Processing Machinery > Casting & Forging > Cold Forging > Three Rollers Screw Thread Machining Center XS-16GT
Three Rollers Screw Thread Machining Center XS-16GT
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
screw making
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality W11-16*2000 Three-roller Manual Plate Rolling/sheet Metal Rolling Machine With Low PriceUS$ 2,000 - 2,500MOQ: 1 Set -
Hot W11-16*2000 Three-roller Manual Plate Rolling/sheet Metal Rolling Machine For SaleUS$ 2,000 - 2,500MOQ: 1 Set
-
W11 W11-6x1500 Mechanical 3 Roller Plate Rolling Machine PriceUS$ 10,000 - 15,000MOQ: 1 Set
-
W11 Series Mechanical Steel Metal Rolling Machine W11-6x1500US$ 10,000 - 15,000MOQ: 1 Set
-
W11 Series Mechanical 3 Roller Plate Rolling Machine Price W11-3x1300US$ 10,000 - 15,000MOQ: 1 Set
Condition
New
Application
screw making
Place of Origin
Guangdong, China
Model Number
XS-3TGT
Voltage
380V
Power(W)
3HP(2205W)
Dimension(L*W*H)
1050*940*1130mm
Weight
300kg
Certification
ISO CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas

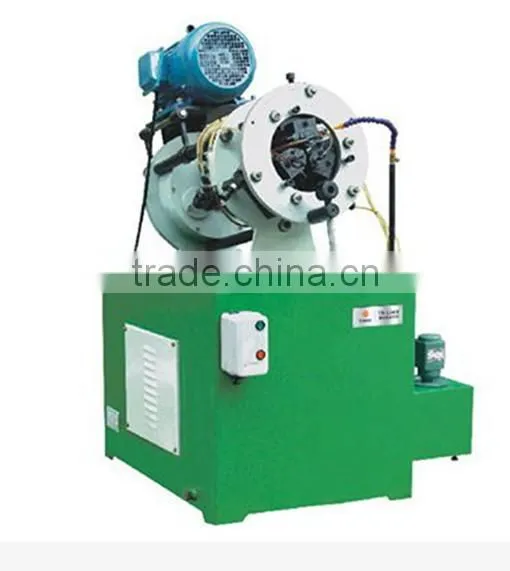

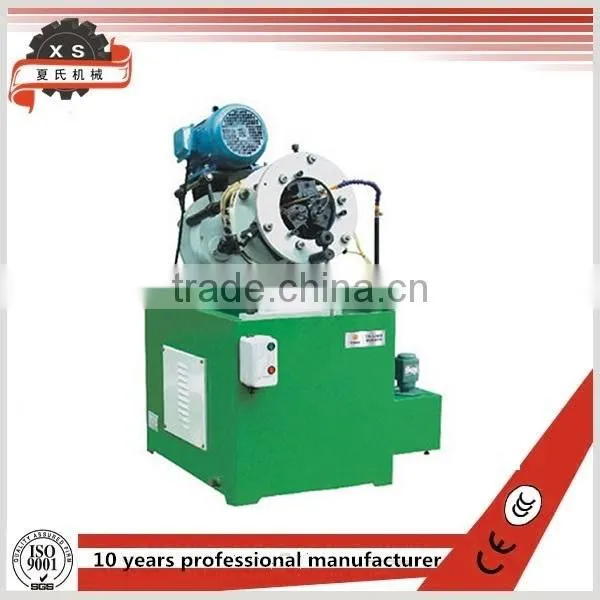

Three rollers screw thread machining center XS-16GT
Application ; All kinds of threaded rods, bars; anchor bolts, ball screw, lead screw, railway rivet and bolts, fasteners, etc.
Specification :
| Model Number | TB-16GT | Shipping measurement(L*W*H) | 1150*1040*1230mm |
| Work piece diameter | φ9-φ16/mm | Dimension(L*W*H) | 1050*940*1130mm |
| Range of pitch rolled | 1-1.5P | Bearing brand | NSK,UBC |
| length of thread rolled | 10-1000mm | Application | bars,solid pipe,solid tube |
| Outside diameter of rolling die | φ46-49mm | Certification | ISO 9001-2008, CE |
| Inside diameter of rolling die | φ25.4mm | Brand Name | Tobest |
| Thickness of rolling die | 100mm | Color | green(or according to your need) |
| Main power motor | 3HP(2205W) | Warranty | 12 months |
| Weight(reference) | 300KG |
Feature ;
1.Designed specially for small full-thread tube-type parts,easy to operate.
2.Based on equal triangles structure, three rolling dies distributed at the same round,easy to operate and regulate.
3.Equipped with special vibration disc to improve automatic effeciency and save the cost.
