Rolling Machine Function:
This machine is the general equipment used for bending plates. Pre-bending and bending can be completed on the machine without U-turn. Plates can be bended to be tubular, arc or even cone-shaped work pieces with supplemental device. Therefore, this kind machine can be widely used in such industries as war industry, source of energy, traffic, petrol, chemical industries, boiler, shipbuilding, hydraulic power, metallic structure, etc.
Feature and advantage:
The machine is optimal equipment with four rollers to bend metal plates. Its merits are as follows:
1. Pre-bending and bending can be completed without reversing end for end.
2. After plate fed, alignment can be finished by side rollers.
3. Plate can be leveled sketchily on the machine.
4. Surplus of pre-bending is short and all kinds of defective reel can be regulated.
5. It is convenient to bend cone-shaped work pieces.
Technical parameters
Model |
Maximum bending thickness (mm) |
Maximum bending width (mm) |
Top roll diameter |
Universal lower rolls diam |
Machine weight |
W11-3*1300 |
3 |
1300 |
118 |
110 |
420 |
W11-3*1500 |
3 |
1500 |
118 |
110 |
460 |
W11-3*2000 |
3 |
2000 |
140 |
110 |
527 |
W11-3*2500 |
3 |
2500 |
140 |
110 |
600 |
W11-3*3200 |
3 |
3200 |
159 |
125 |
1500 |
W11-4*1300 |
4 |
1300 |
118 |
110 |
448 |
W11-4*1500 |
4 |
1500 |
118 |
110 |
485 |
W11-4*4000 |
4 |
4000 |
190 |
160 |
2500 |
W11-6*2000 |
6 |
2000 |
180 |
160 |
1900 |
W11-8*2000 |
8 |
2000 |
190 |
160 |
2600 |
W11-12*2000 |
12 |
2000 |
185 |
165 |
4700 |
W11-16*2000 |
16 |
2000 |
245 |
215 |
5800 |
W11-20*2000 |
20 |
2000 |
280 |
240 |
7800 |

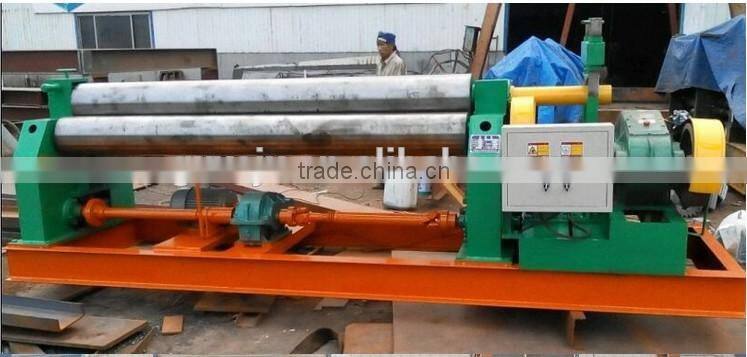

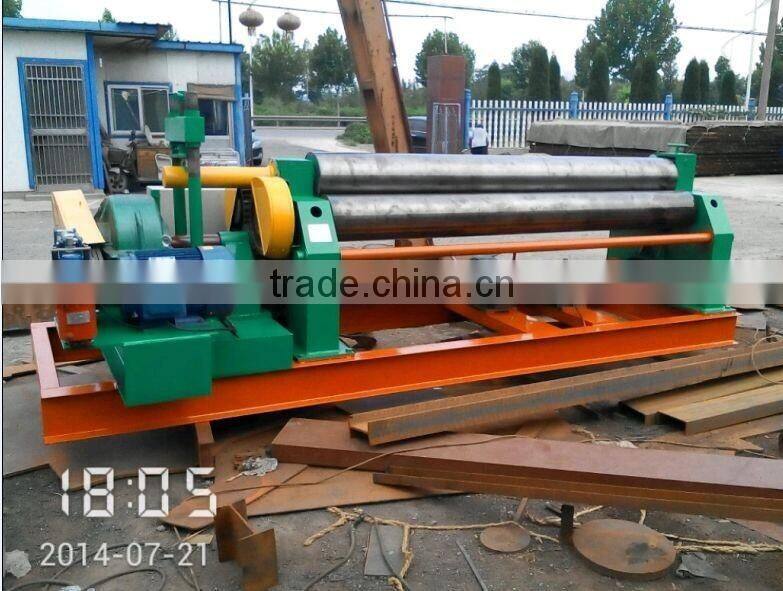

Detailed pictures for your reference
Services
- Professional advice and rich experience help to choose machine.
- Customized service: Technical team design and produce the customized machine.
- Maunal book, tool cabinet are provided with machine.
- If necessary, technicist will be in charge of machine installation in your country.
- After-sale service: 1 year warranty, technical support, lifelong maintenance.
Contact details
Address:No.68-8 Hangyin Road,Liuzhou city,Guangxi,China
Post code:541000
ANNT:Amanda Huang Position:sales manager
Tel:00 86 772 2729581 Fax:00 86 772 3207361
Skype:amandaluu98
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
