Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > CNC Pipe Threading Lathe QK1320A3SF

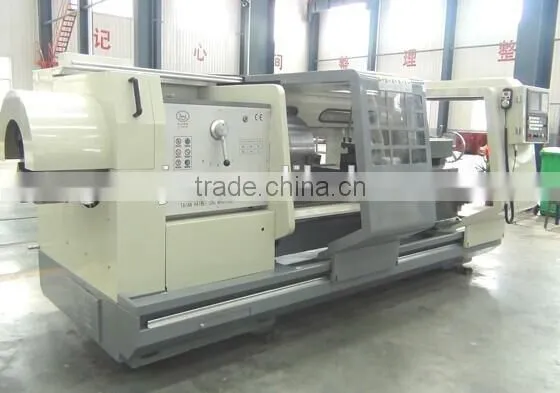

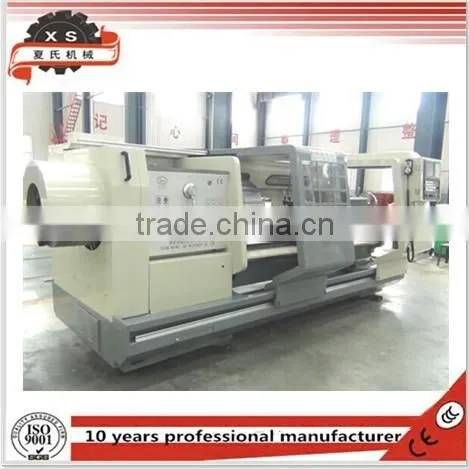

CNC Pipe Threading Lathe QK1320A3SF

Name: CNC Pipe Threading Lathe QK1320A3SF
Brand: xiashi
SKU: 140990652
Availability: InStock

CNC Pipe Threading Lathe QK1320A3SF thumbnail-1

CNC Pipe Threading Lathe QK1320A3SF photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Turning Center

CNC or Not:

CNC

Contact Supplier Request Quote Chat Now

Guangxi Xiashi Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Turning Center

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 640MM

Place of Origin Guangxi, China

Brand Name xiashi

Model Number QK1320A3SF

Dimension(L*W*H) 4200x2000x2000mm

Weight 5.8 ton

After-sales Service Provided Engineers available to service machinery overseas

Product Description

CNC Pipe Threading Lathe QK1320A3SF

CNC pipe threading lathe Three gears Servo frequency speed
technical parameters		QK1320A3SF
center distance (mm)		1500	3000
max. swing over bed (mm)		dia 640
width of the bed (mm)		550
spindle bore diameter (mm)		dia 200
tube outside diameter (mm)		dia 60~dia 190
max. swing over crossslide (mm)		dia 330
spindle taper		ME dia 202/1:50
Servo spindle speed (r/min)		6~30/20~120/80~450
Servo main motor power (KW)		15KW/50Hz
chuck OD/ ID (mm)		dia 500/dia 200
three-jaw chuck (mm)		K11-dia 500D
distance between two chucks (mm)		1600
inch thread range and number of species (thread per inch)		0.1~254
metric thread range and number of species (mm)		0.1~400
Z axis	max. travel (mm)	1400	2900
	travel speed (m/min)	4~6
	min. travel unit (mm)	0.001
	repeatability accuracy (mm)	0.025
X axis	max. travel (mm)	380
	travel speed (m/min)	3~5
	min. travel unit (mm)	0.001
	repeatability accuracy (mm)	0.016
tail stock	sleeve diameter (mm)	dia 115
	sleeve taper	MS 6#
	sleeve travel (mm)	270
arbor cross-section size		32×32
electric tool post		four-station LDB4-120(6163A) toolpost of square turret: 240×240mm
overall dimensions (L×W×H) (mm)		4200×2000×2000	5900×2000×2000
GrossNet weight (ton)		5.8/5.6	6.8/6.6

The usual brand-name accessories:
1) precision bearing NSK, imported from Japan;
   2) Famous brand auto centralized lubricating system;
   3) Famous brand Servo spindle motor;
   4) famous brand electric tool post;
   5) famous brand encoder;
   6) famous brand ball-screw;
   7) low-voltage apparatus of Siemens and France Schneider;
   8) domestic brand-name machine tool accessories;
  9)the famous brand lighting and cooling system;
10) Famous brand Hand - held electronic pulse wheel
