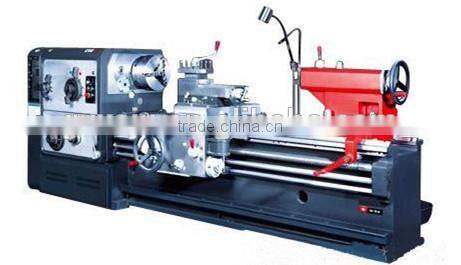

Universal lathe machine CW6163B/7000

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Horizontal
CNC or Not	Normal	Automatic Grade	Automatic
Max. Swing Diameter	630mm	Brand Name	XiaShi
Model Number	CW6163B/7000	Voltage	380v/50Hz
Power(W)	11kw	Dimension(LWH)	900014001290mm
Weight	11000KGS	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Application

This series of lathe is suitable for turning end, external and internal cylindrical surface, tapered

surfaces and other rotary surfaces, reaming holes and cutting oil grooves.

It also can produce a large number of threads of different kinds, including Whitworth,

metric, diametral and module threads.

Design feature

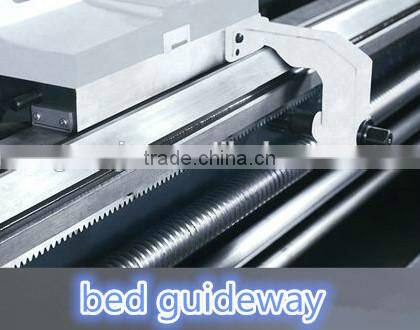

Bed ways are wider than normal for greater accuracy and strength, and induction

hardened for long service life.

Controls are conveniently located including joystick-operated feed rapid feature, to

make operation a pleasurable experience.

This machine is structurally designed to be more rigid, and this make it more suitable

for high-speed and heavy cutting.

Technical parameter

Model	CW6163B/7000
Max swing dia,over bed	630mm
Max swing dia.over carriage	350mm
Max workpiece length	7000mm
Spindle bore&nose	104,D11
Spindle taper	Morse taper 5
Steps&range of spindle speed	18/7.5-1000 steps/rpm
Steps&range of longitudinal speed	64kinds,0.05-24.3mm
Range 1:1	0.1-1.52mm/r
Range 16:1	1.63:24.3mm/r
Range of mirco feed with change gears	0.05-0.912mm/r
Longitudinal& cross feed rade	1/2
Rapid speed of carriage	4000mm/min
Pitch of lead screw	12(metrix unit)
Number range of metric thread	50kinds 1-240(and another 14kinds of non-standard thread)
Number range of whitworth thread	26kinds 14-1 t.p,i
Number range of modulus thread	53kinds 0.5-120mm
Number range of pitch thread	24kinds 28-1 DP
Max cross travel of lower slide	420mm
Max travel of top slide	200mm
Max travel of tailstock	250mm
Tarper of tailstock	MT5
Guideways width hardnees	550 RC52mm
Main motor power	11kw
Rapid motor power	1.1kw
Power of coolant pump motor	120w

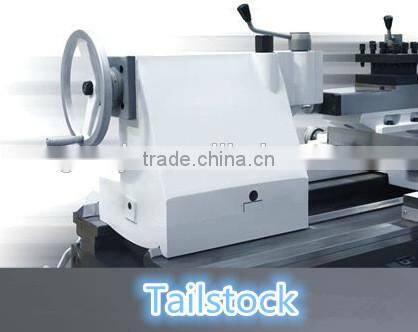

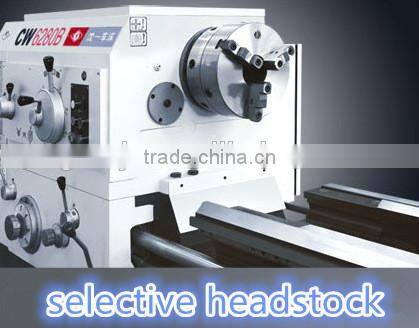

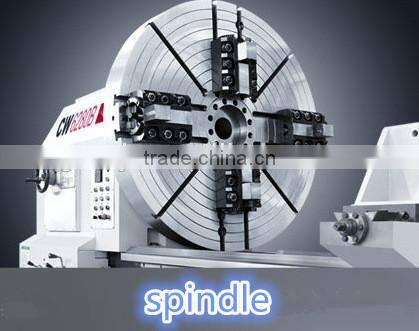

Picture details

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
