Single Column Conventional Vertical Lathe Machine C5120

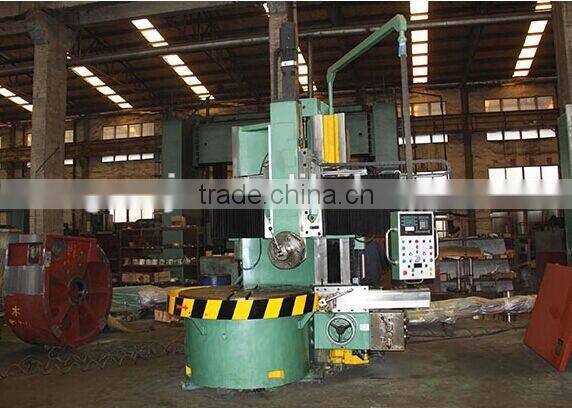

Single Column Conventional Vertical Lathe Machine C5120 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Max. Swing Diameter:
2000mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Vertical
Max. Swing Diameter 2000mm
Place of Origin Guangxi, China
Brand Name Xiashi
Model Number C5120
Power(W) 30kw
Dimension(L*W*H) 2277*2540*3403
Weight 17.5T
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Single column conventional vertical lathe machine C5120

1. Single column conventional vertical lathe machine C5120 is suitable for rough and fine turning of

outer cylindrical surface, tapered surface,and end surface.

2. Single column conventional vertical lathe machine C5120 is a super rigid machine with big machining capacities, stable and rigid structure and high machining efficiency.

3. The machine is equipped with high precision digital readout system (DRO).

4. The work table of this lathe inlaid with zinc-alloy wearable guide plate and put pressure oil into guide way. Spindle radial uses high-precision bearing NN30,rotation with high precision,and carrying capacity is big. The speed not noly can choose level 16 governing speed,but also can use  frequency stepless speed.

The tool test can use level 12 speed feed,and also can use stepless feed.





SpecificationUnitC5120
Max.turning diameter mm2000
Table diametermm1800
Max.weight of workpiecet8
Range of table speedsr/min3.2-100
Steps 16
Power of motorkW30
Max.height of workpiecemm1250
Stroke of vertical tool(level)mm1000
Stroke of vertical tool(Vertical)mm800
Stroke of vertical tool(Level)mm630
Stroke of vertical tool(Vertical)mm1180
Weight of machine(Approx.)t17.5
Overall dimensionsmm3200*2800*4000





single column conventional vertical lathe machine C5120
