Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 2000mm | Place of Origin: | Guangxi, China |
Brand Name: | Guangxi Xiashi | Model Number: | C61200 | Voltage: | 220V/380V |
Power(W): | 22kw | Dimension(L*W*H): | 3100*2410*2770mm | Weight: | 8000kg |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
C61200 heavy duty conventional lathe machine price with high quality
Horizontal Lathe (C61140,C61160,C611200,C61240) Main Feature:
- This series lathes are chiefly suitable for various cutting jobs,such as internal and external cylindrical surfaces turning,fachingand varopis lomds pf tjreads cittomg.The compound rest slide can be used individually by power for cutting a 300mm taper surface,or used with aid of longitudinal feed motion of the carriage by power for cutting long taper surface.They can also be used for drilling ,boring trepanning Horizontal Lathe Horizontal Lathe Horizontal Lathe.
- This machine is equipped with an oil pump,forced lubrication as well as rapid traverse ,terminal end insurance.
- Cutting of size control by travel stop power,latch hook of tailstock and safeguard against excess load etc.
- The power,speed and rigidity of the machines can fairly meet the needs of both heavy and finish machining.
- These machines have features of fine appearance,concentrated control arrangment for easy operating and convenient maintenance.
Horizontal Lathe (C61140,C61160,C611200,C61240) Usage range:
a. Turning the internal and external cylindrical surface and plane
b. Turning internal and external conical surface,
c. Grooving
d. Head face
e. Severance
Horizontal Lathe Export Market:
Malaysia, Brazil, Vietnam, Iran, India, Indonesia, Qatar, Poland, South Korea, Korea, Mexico, Saudi Arabia, etc.
Certificate:
a.European CE certificate
b. ISO9001:2008 quality management system
Horizontal Lathe Horizontal Lathe Horizontal Lathe
Item | Unit | C61140 | C61160 | C61200 | C61240 |
Max.swing diameter over bed | mm | 1400 | 1600 | 2000 | 2400 |
Max.length of workpiece | mm | 3000/5000/8000-15000 | 3000/5000/8000-15000 | 3000/5000/8000-15000 | 3000/5000/8000-15000 |
Max.swing diameter over carriage | mm | 1000 | 1200 | 1580 | 2000 |
Spindle bore | mm | 130,A215 | 130,A215 | 130,A215 | 130,A215 |
Taper in spindle nose |
| Metric140 | Metric140 | Metric140 | Metric140 |
Number of speeds Forward |
| 21kinds | 21kinds | 21kinds | 21kinds |
Number of speeds Reverse |
| 12kinds | 12kinds | 12kinds | 12kinds |
Spindle speed range for forward | r/min | 3.15-300 | 3.15-300 | 3.15-300 | 3.15-300 |
Spindle speed range for reverse | r/min | 3.5-278 | 3.5-278 | 3.5-278 | 3.5-278 |
Range of feeds per spindle revolution |
| 56kinds | 56kinds | 56kinds | 56kinds |
Longitudinal | mm | 0.1-12 | 0.1-12 | 0.1-12 | 0.1-12 |
Cross | mm | 0.05-6 | 0.05-6 | 0.05-6 | 0.05-6 |
Top side | mm | 0.025-3 | 0.025-3 | 0.025-3 | 0.025-3 |
Range of metric threads | mm | 44kinds 1-120 | 44kinds 1-120 | 44kinds 1-120 | 44kinds 1-120 |
Range of whitworth threads |
| 31kinds 24-1/4T.P.I | 31kinds 24-1/4T.P.I | 31kinds 24-1/4T.P.I | 31kinds 24-1/4T.P.I |
Range of module threads | mm | 45kinds 0.5-60 | 45kinds 0.5-60 | 45kinds 0.5-60 | 45kinds 0.5-60 |
Range of diametral pitch threads |
| 38kinds 1/2-56DP | 38kinds 1/2-56DP | 38kinds 1/2-56DP | 38kinds 1/2-56DP |
Max.travel of saddle | mm | L-200 | L-200 | L-200 | L-200 |
Max.cross travel of lower slide | mm | 730 | 960 | 1010 | 1100 |
Max.travel of mid slide | mm | 300 | 300 | 300 | 300 |
Max.travel of top slide | mm | 200 | 200 | 200 | 200 |
Rapid traverse speed of tool post longitudinal/Cross | mm/min | 3740/1870 | 3740/1870 | 3740/1870 | 3740/1870 |
Mid slide | mm/min | 935 | 935 | 935 | 935 |
Diameter of tailstock quill | mm | 180 | 180 | 180 | 180 |
Max.travel of tailstock quill | mm | 300 | 300 | 300 | 300 |
Taper in bore of tailstock quill |
| MT No.6 | MT No.6 | MT No.6 | MT No.6 |
Power of main motor | kw | 22 | 22 | 22 | 22 |
Overall dimensions length | mm | 3100 | 3100 | 3100 | 3100 |
Overall dimensions Width | mm | 2320 | 2320 | 2410 | 2500 |
Overall dimensions Height | mm | 2500 | 2600 | 2770 | 2940 |
Width of bed | mm | 1100 | 1100 | 1100 | 1100 |
Max.torque | knm | 12.85 | 12.85 | 12.85 | 12.85 |
Max.weight of workpiece | kg | 8000 | 8000 | 8000 | 8000 |

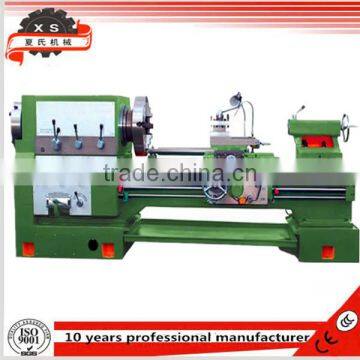

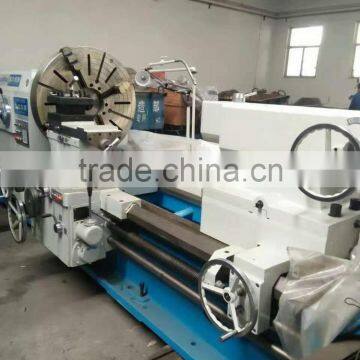

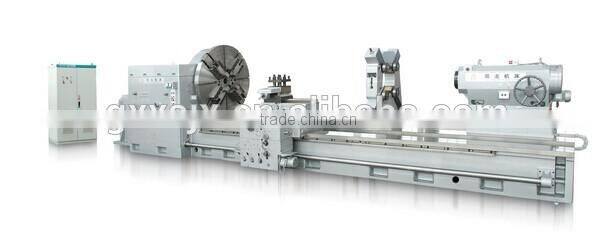

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
