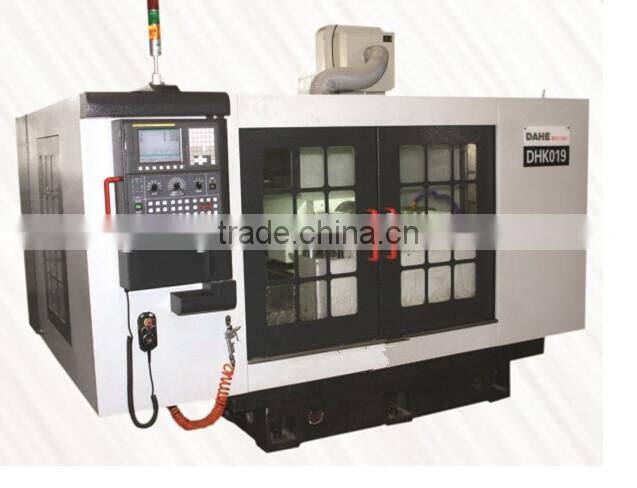

DHK019 CNC Stator Grinder Machine Grinding Machinery

FOB Price

US$ 100 - 10,000 / Set

1 Set(Min. Order)

Port ShenZhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Universal
CNC or Not	CNC	Place of Origin	Yunnan, China
Brand Name	XIASHI	Model Number	DHK021
Voltage	380V	Power(W)	5.8Kw
Dimension(LWH)	268290175cm	Weight	7000kg
Certification	CE, ISO9001	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

This machine is used to grind screw rods for air compressors. Equipped with Siemens

DHK019

Technical Parameters
DHK019
Grinding width
≥50mm
The maximum outer diameter of the jig
Φ230mm
Grinding bore
Φ20-Φ110mm
Around the table moving distance (X axis)
850mm
Moving back and forth from the headstock (Z-axis)
235mm
C-axis maximum speed (spindle)
100r / min
C-axis maximum torque (spindle)
72Nm
Rapid traverse rate
10m / min
Maximum speed grinding
48000r / min
Coordinate motor (X axis / Z axis)
3Kw; 12Nm / 21.8Km; 8Nm
Coordinate motor (C-axis)
3Kw; 12Nm
Electric spindle (grinding)
5.8Kw
Gas source
5-7bar (100L / min)
NC configuration
Configure the system according to user needs
Machine weight
7000kg
Machine Size
268 × 290 × 175c

2.If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
