Home > Products > Hydraulic press > 2017 New Type YQ41-500T Single-column Hydraulic Press Machine
2017 New Type YQ41-500T Single-column Hydraulic Press Machine
- shenzhen
- T/T Money Gram Credit Card
You May Like
-
Single-column Hydraulic Press Machine YQ41-20T
-
Filter Shell Hydraulic Drawing Press Y28A-65
-
FRAME UPLIFTING HYDRAULIC PRESS YDK-500
-
High Quality FOUR- COLUMN 500 Ton HYDRAULIC POWER PRESS MACHINE YQ32--500TA For Sale
-
1000 Ton Hydraulic Press Machine Price Y33-1000
-
Four Column Double Action Deep Drawing Hydraulic Press Machine Y28-800
Product Details
| Condition | New | CNC or Not | Normal | |
| Power Source | Hydraulic | Place of Origin | Guangxi, China | |
| Model Number | YQ41-500T | Voltage | 380V/220V Optional | |
| Power(W) | 30kw | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2017 New Type YQ41-500T Single-column hydraulic press machine
Product Description
Fuselage and the single column hydraulic press of company's production are C type single
arm type structures ,Itadopts the whole CO2 welding of steel plate, and passes through
tempering ageing treatment after welding, Ensure that fuselage never warps. Hydraulic
system is located in fuselage , outside type is beautiful, Easy to Operate may expand wide
working scope , it Uses 3 surfaces the space extended hydraulic.
Product Features
1.hydraulic press
petitive price
3.good performance
4.easy to operate
5.structural reliability
Product Appliance Field
This series hydraulic press mainly applies to the proofread,assemble of axle component and
section bar,the bending , impressing of the panel component ,The stretch plastic products of
simple component , and the use of other line , like machinery tool, combustion engine ,
spinning , axle , bearing, washing machine,automobile motor, air conditioner motor, electrical
equipment ,defense industry enterprise and foreign-funded enterprises assemble production
line .
Product Specification
Specification | YQ41-20T | YQ41-40T | YQ41-60T | YQ41-100T | YQ41-200T | YQ41-315T | YQ41-500T | |
nominal pressure(KN) | 200 | 400 | 600 | 1000 | 2000 | 3150 | 5000 | |
working pressure of liquid(mpa) | 20 | 20 | 30 | 28 | 28 | 28 | 25 | |
throat depth(mm) | 200 | 220 | 240 | 280 | 300 | 360 | 500 | |
stroke(mm) | 240 | 260 | 260 | 300 | 360 | 600 | 600 | |
working speed(mm/s) | 18 | 15 | 12 | 18 | 10 | 18 | 30 | |
return speed(mm/s) | 25 | 22 | 20 | 30 | 20 | 40 | 60 | |
pressure head to the table the maximum distance | 500 | 550 | 700 | 800 | 800 | 1000 | 1000 | |
dimension of table(mm) | front back | 400 | 400 | 450 | 500 | 600 | 800 | 1000 |
| left right | 500 | 500 | 600 | 700 | 600 | 1000 | 1200 |
motor power(kw) | 2.2 | 3 | 5.5 | 7.5 | 7.5 | 15 | 30 | |

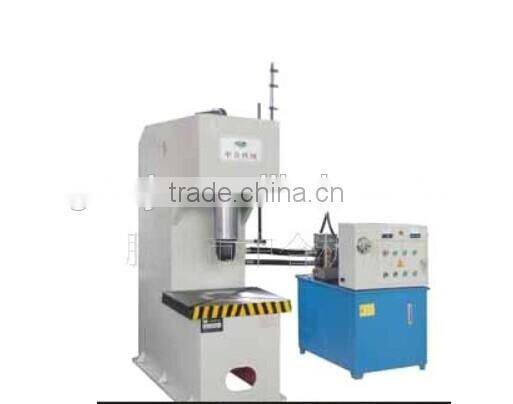

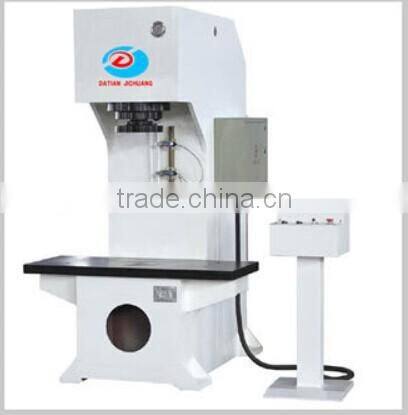

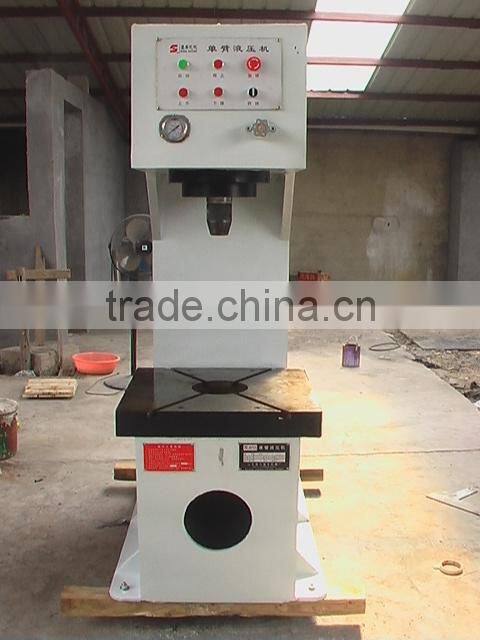

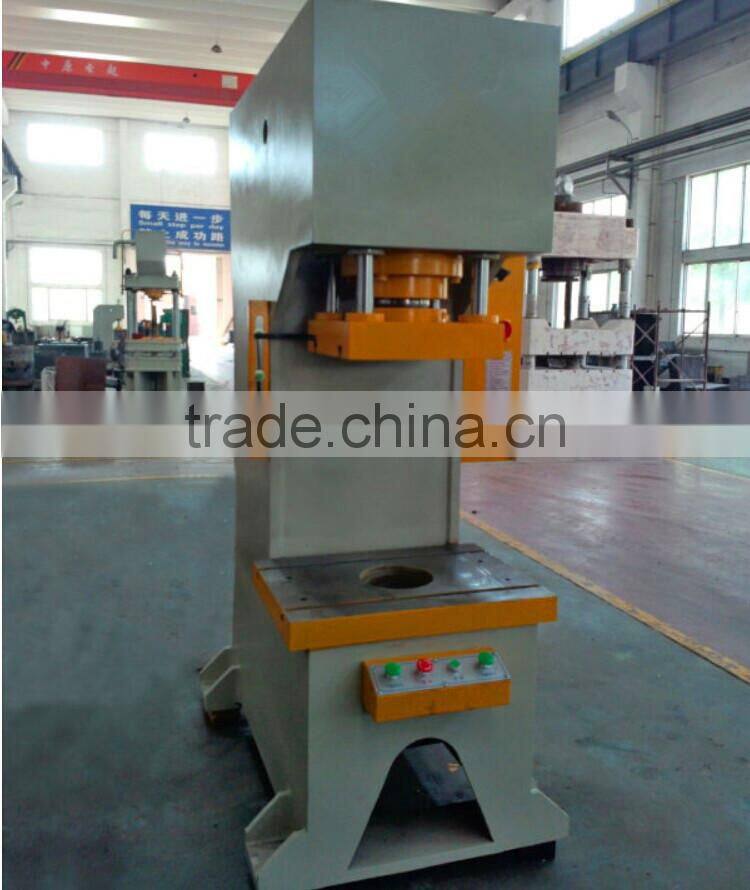

Detailed Pictures For Your Reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
Contact Us
- Guangxi Xiashi Machinery Equipment Co., Ltd.
- Contact nameChristina Chen Chat Now
- Phone86-772-2729581
- AddressNo.68-8 Hangyin Road, Liuzhou, Guangxi
