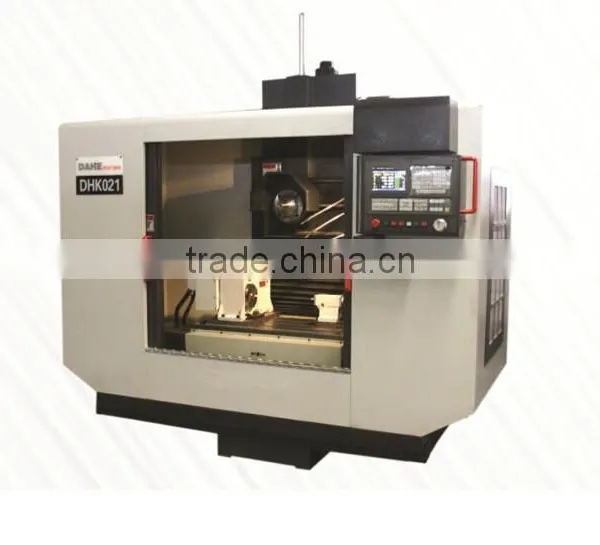

Excellent Quality CNC Rotor Groove Grinder Machine DHK021

Excellent Quality CNC Rotor Groove Grinder Machine DHK021 thumbnail-1
Excellent Quality CNC Rotor Groove Grinder Machine DHK021 photo-1
US$ 100 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Universal
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Guangxi Xiashi Machinery Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Universal
CNC or Not CNC
Max. Grinding Diameter 120mm
Place of Origin Yunnan, China
Brand Name XIASHI
Model Number DHK021
Voltage 380V
Power(W) 1.5KW
Dimension(L*W*H) 250*310*245cm
Weight 6000KG
Certification CE, ISO9001
After-sales Service Provided Engineers available to service machinery overseas

This machine is used to grind screw rods for air compressors.

Equipped with Siemens DHK021



Technical Parameters

Diameter rotor slots:Φ30-Φ120mm
Rotor slot width:1 ~ 7mm
Around the table moving distance (X axis):850mm
Headstock vertical movement distance (Z-axis):100mm
Around the table moving distance (Y axis):530mm
Maximum speed (spindle):4500r / min
Maximum torque (spindle):35Nm (5.5Kw); 5000r / min
Maximum speed turntable:22.2r / min
Rapid traverse rate:15m / min
Coordinate motor (X axis / Z axis):1.5Kw; 10Nm; 2500r / min
Coordinate motor (A-axis):1.5Kw; 6Nm; 2500r / min
Precision turntable (A axis)
Segmentation accuracy 25 "; Repeatability (unidirectional) 4"
Gas source:5-7bar (100L / min)
NC configuration
Configure the system according to user needs
Machine weight:6000kg
Machine Size:250 × 310 × 245cm

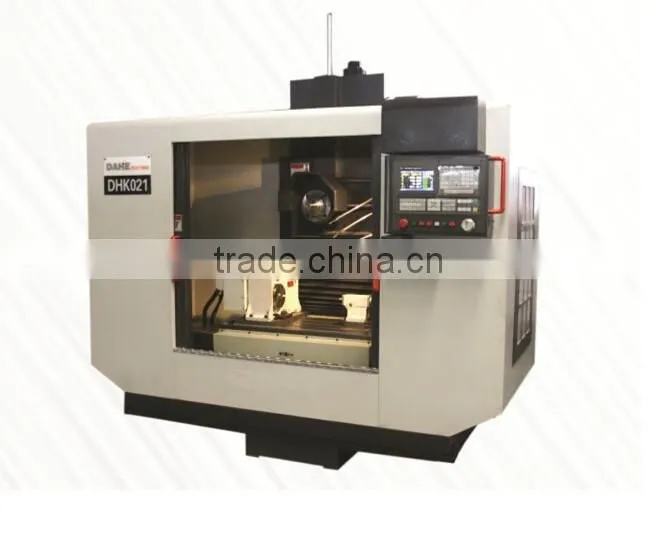

 Excellent quality CNC rotor groove grinder machine DHK021

Packaging & Shipping

We will pack the machine with standard export wooden case ,ensure the transport safety

 Excellent quality CNC rotor groove grinder machine DHK021Excellent quality CNC rotor groove grinder machine DHK021
