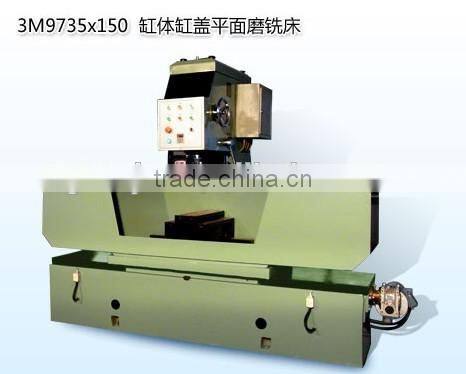

Cylinder Body and Cover Surface Grinding Machine MODEL 3M9735*150
- shenzhen
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 360mm | |
| Max. Grinding Length | 1500mm | Model Number | 3M9735*150 | |
| Voltage | 380v | Power(W) | 1.5/2.4kw | |
| Dimension(L*W*H) | 2300x1000x1960mm | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Application
It suits for gringing and milling all kinds of cylinder body and cover surface.
Structure characters
1,The spindle adopts high precision bearing,the motor is fixed on the back of the machine,which guarantee the spindle prcision with high speed.
2,It adopts the plastic guide-way,running stable and flexible.
3,The feeding of work table adopts stepless adjusting,suits for processing all kinds of materials of work piece.
Technical parameter
Dimensions of working table | 1000x500mm |
Max.length of processing | 1500mm |
Max width of processing | 350mm |
Max height of processing | 600mm |
The vertical moving distance of grinding wheel plate | 120mm |
Moving speed of working table | 0-300mm/min |
Diamter of grinding wheel plate | 360mm |
Main shaft motor power | 1.5/2.4 KW |
Dimension(LxWxH) | 2300x1000x1960mm |
| | |
| Cooling box | Balancing frame | Special cutter |
| | |
| Emery tile | Balancing axis | Trimmer of emery tile |

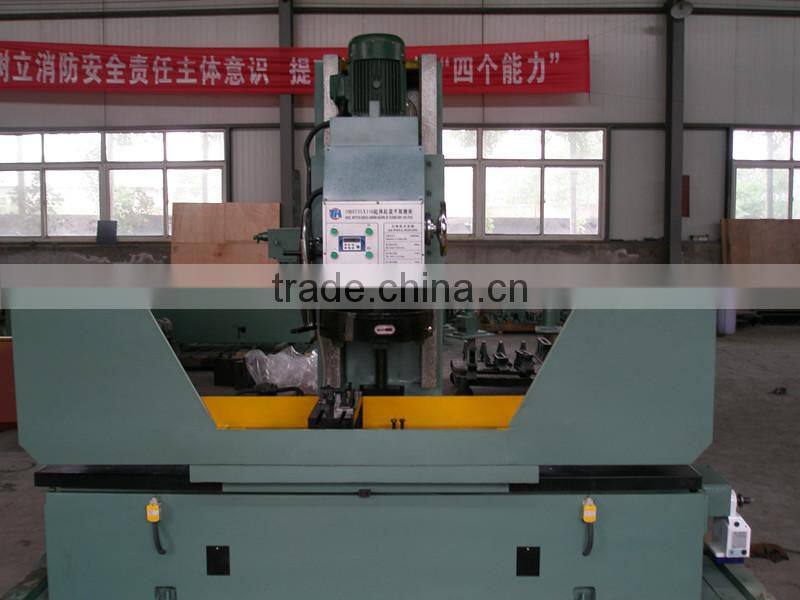

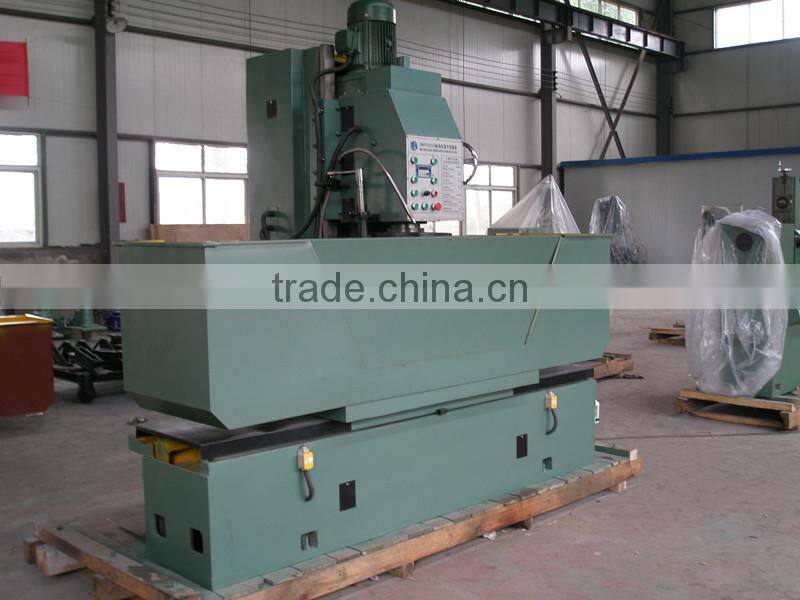

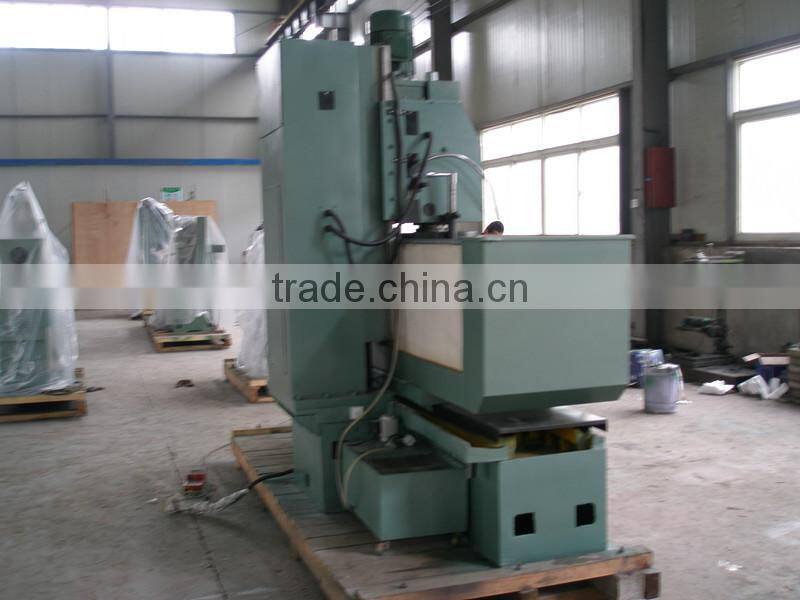

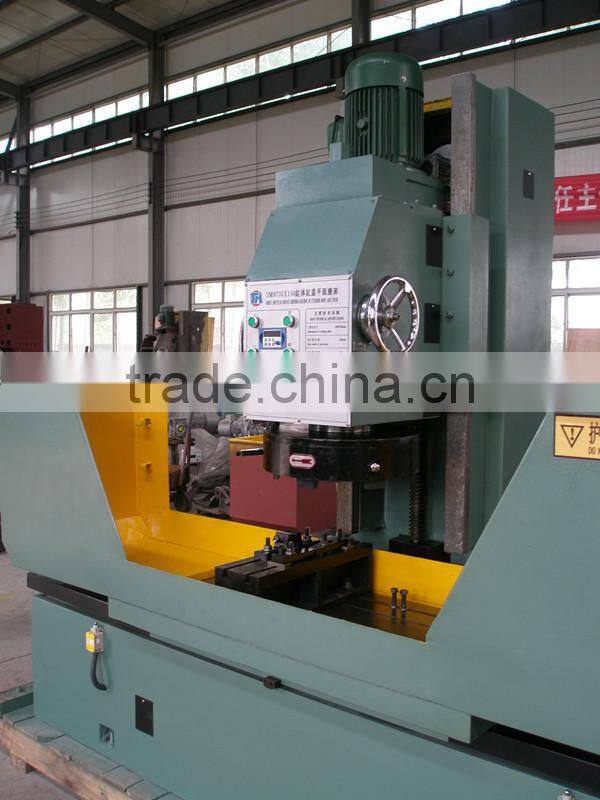

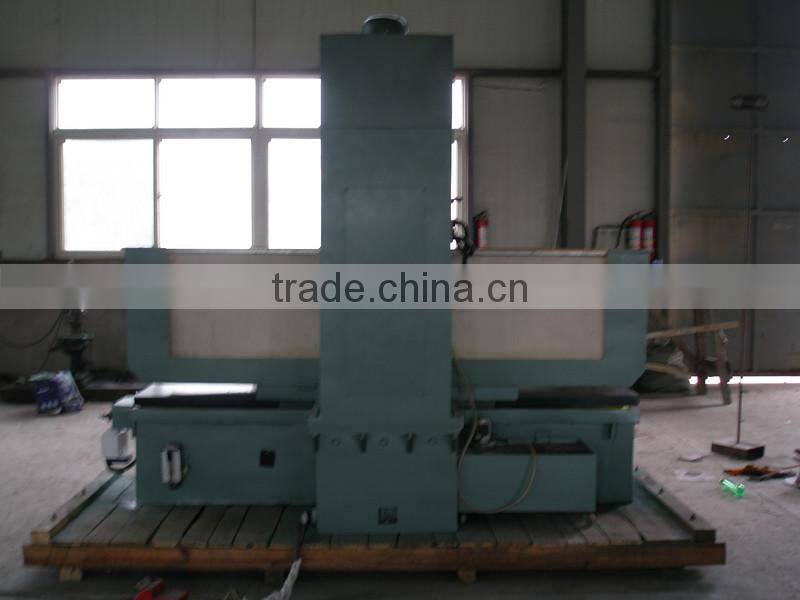

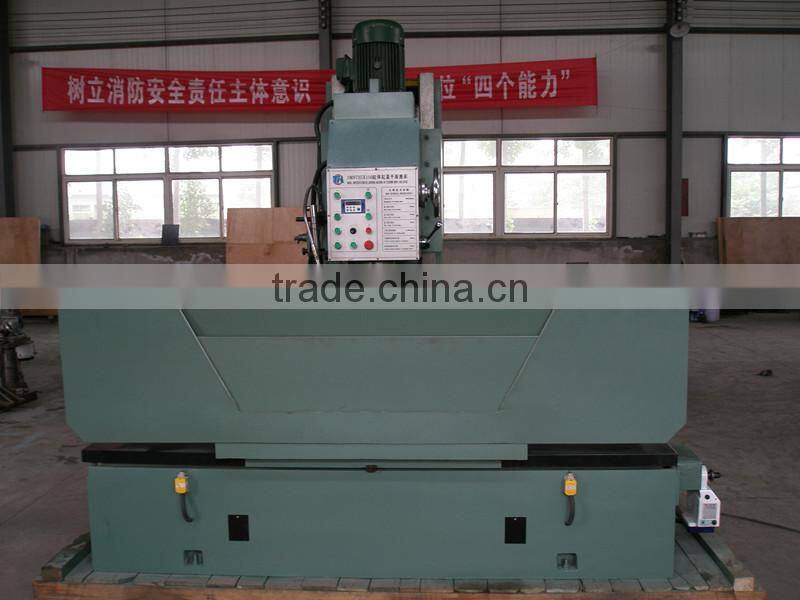

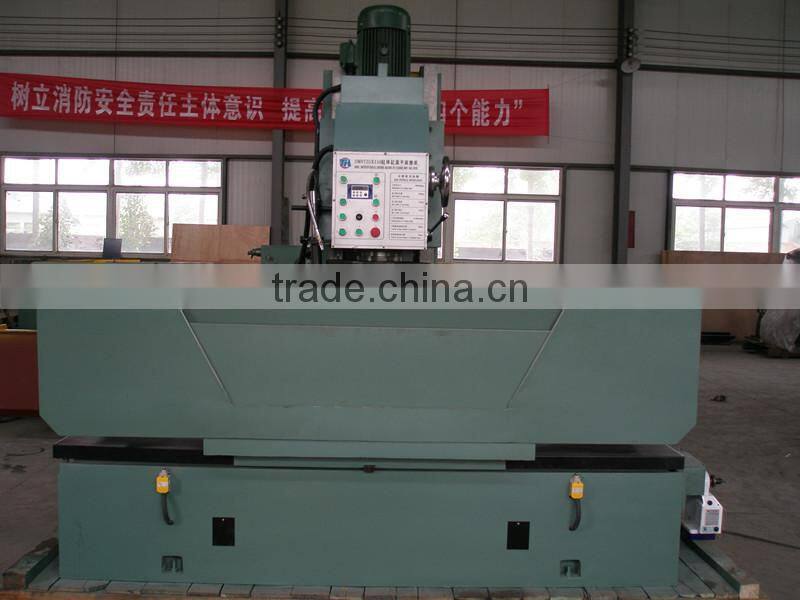

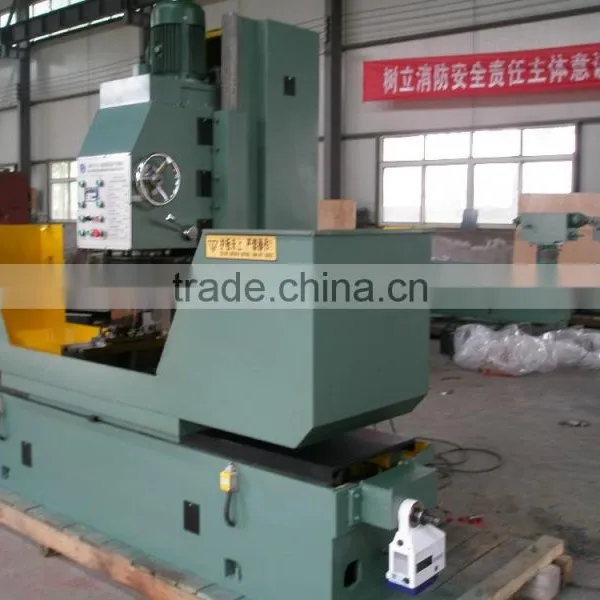

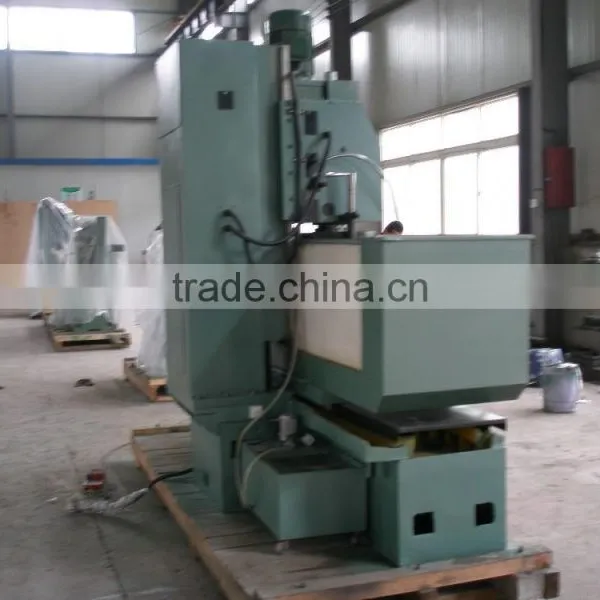

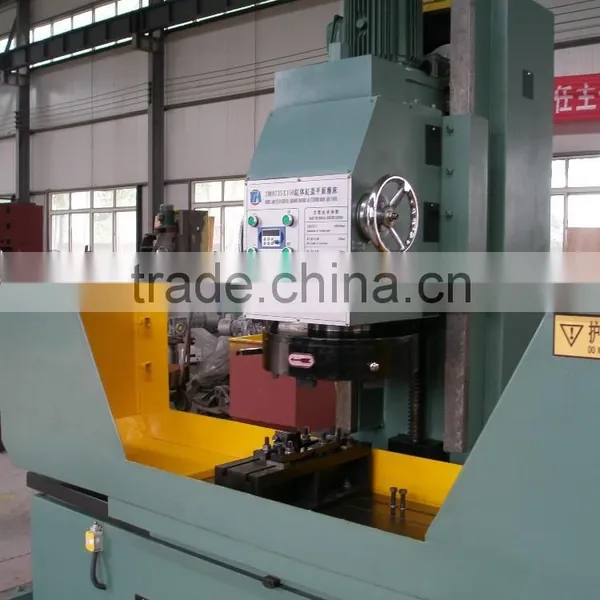

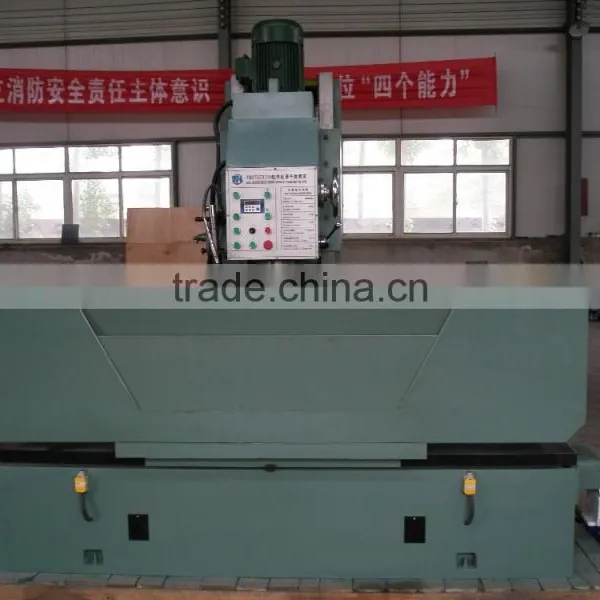

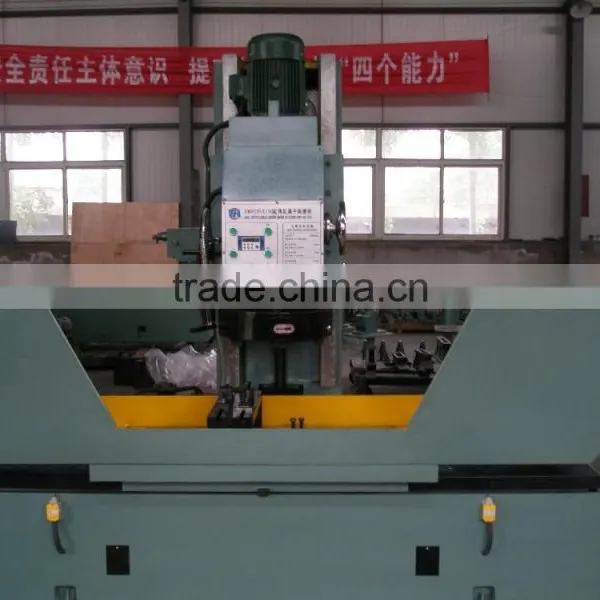

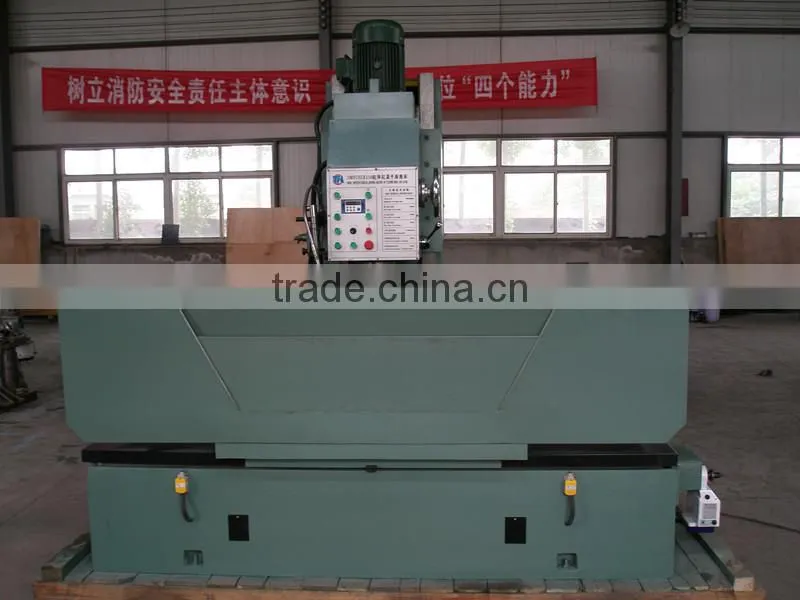

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
