Home > Products > Grinding Machine > M618A Electric Grinding Machine Surface Grinder
M618A Electric Grinding Machine Surface Grinder
- shenzhen
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 335mm | |
| Max. Grinding Length | 500mm | Model Number | M618A | |
| Voltage | 380v | Power(W) | 1.1kw | |
| Dimension(L*W*H) | 1550*1060*1590mm | Weight | 650kg | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Surface grinding machine main functions
1,Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2,Bring transmission by synchronous belt,operating simple and convenient.
Technical parameters
Technical Parameters | Units | M618A | MS618A | |
piece to be ground (L×W×H) | mm | 500×190×335 | 500×190×335 | |
Max. Grinding length | mm | 500 | 500 | |
Max. grinding width | mm | 190 | 190 | |
Distance from table surface to spindle center | Mm | 335 | 335 | |
Slide way |
| v-type rail with Steel-ball | v-type rail with Steel-ball | |
v-type rail with steel-ball | Kg | 200 | 200 | |
Table size(L×W) | Mm | 460×180 | 460×180 | |
Number of T-slot | mm×n | 14×1 | 14×1 | |
Speed of working table | m/min |
|
| |
Cross feed on hand wheel | Mm | 0.02/Graduation 2.5/revolution | 0.02/Graduation 2.5/revolution | |
Vertical feed on hand wheel | Mm | 0.01/Graduation 1.25/revolution | 0.01/Graduation 1.25/revolution | |
Wheel size(dia.×width×bore) | Mm | 180×13×31.75 | 180×13×31.75 | |
Spindle speeds | 50Hz | Rpm | 2850 | 2850 |
|
|
| 0-6000 | 30-6000 |
Spindle Motor | Kw | 1.1 | 1.1 | |
Coolant Pump | Kw | 0.4 | 0.4 | |
Paraller Level | Mm | 300:0.005 | 300:0.005 | |
Machine Size(L×W×H) | Mm | 1550×1150×1590 | 1550×1150×1590 | |
Packing Size (L×W×H) | Mm | 1000×1150×1760 | 1000×1150×1760 | |
Gross ,Net | T | 0.75,0.65 | 0.76,0.66 | |

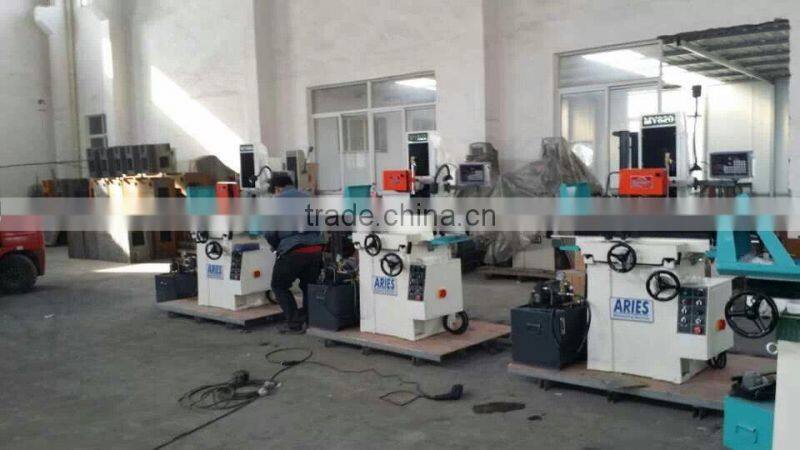

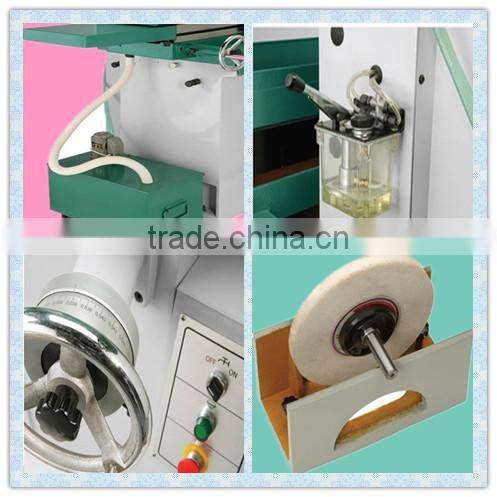

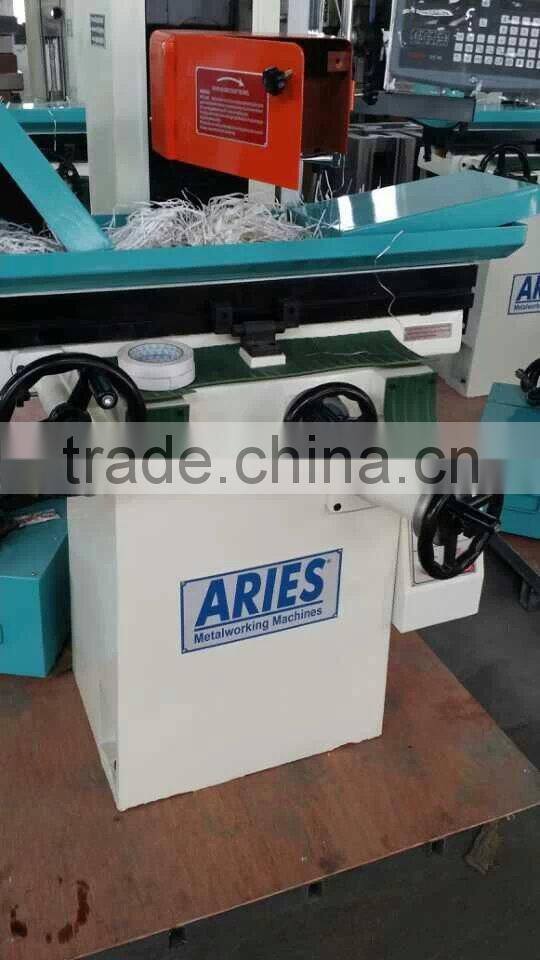

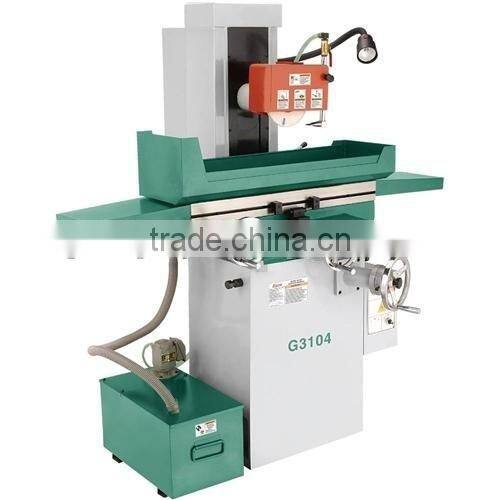

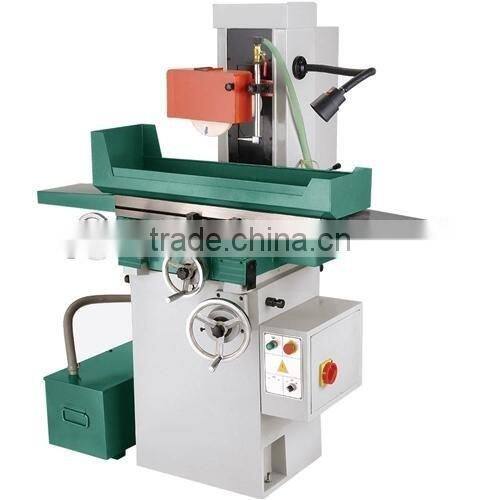

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
Contact Us
- Guangxi Xiashi Machinery Equipment Co., Ltd.
- Contact nameChristina Chen Chat Now
- Phone86-772-2729581
- AddressNo.68-8 Hangyin Road, Liuzhou, Guangxi
