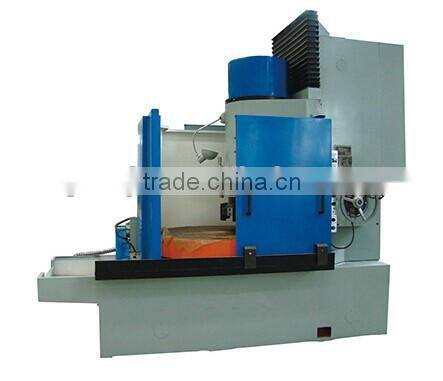

Vertical Spindle Surface Grinding Machine With Rotary Work Table M74140K
- Shenzhen
- T/T Credit Card
You May Like
-
Small-size Metal Centerless Grinder MT1040A
-
MK-1332B CNC Cylindrical Grinding Machine
-
YJ-1206S High Precision Metal Centerless Grinding Machine Price List
-
M215A Small-size Internal Grinding Machine Price With Low Price
-
Surface Grinding Machine With Rotary Work Table M74100K-2
-
Centerless Grinding Machine M1040B With Low Price
Product Details
| Condition | New | Type | Surface Grinding Machine | |
| CNC or Not | CNC | Place of Origin | Guangxi, China | |
| Brand Name | Xiashi | Model Number | M74140K | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
M74140K Vertical Spindle Surface Grinding Machine with Rotary Work Table is surface-grinding machine designed to process work pieces on the rotary work table by the circumference of the grinding wheel on the spindle.
The work table is in the use of an electromagnetic sucking device or Disc clicker; the vertical pillar and the machine tool bed are connected by the three-point position regulation system, which helps to process the work piece into inside cave shape or crown shape; the grinding wheel spindle is driven by a high-power loaded electric motor, which improves the grinding effect; the grinding wheel is in the use of either cylindrical shaped or even distributed trapezoid carborundum brick wheels around the circumference.
This machine is used in the surface grinding process of mass-production disc type work. In the metal industry, such as bearings, disc type cutters, circular saw blades, automotive engine connecting rod, clutch friction plates, hydraulic pressure casting, pump valves, and magnetism material; in the nonmetal industry, such as refractory material, ceramic, glass, silica, marble, and carbon fiber.
List | (Unit) | M74140K |
Diameter of Worktable | mm | Φ1400 |
Grinding Range of Work Pieces(D×H) | mm | Φ1400×350 |
Rotational Speed of Working Table(Stepless) | rpm | 2~20 |
Shifting Distance of Working Table | mm | 750 |
Max. Weight of loaded work piece | kg | 1500 |
Grinding Wheel Dimension(DO×IO×W) | mm | Φ750×Φ650×120 |
Dimensions of Trapezoid Carborundum Brick(A×B×C×L) | mm | 85×100×35×150 |
Trapezoidal wheel swing diameter | mm | Φ760 |
Rotational Speed of Grinding Head Main Spindle | rpm | 750 |
Vertical Shifting Distance of Grinding Head | mm | 380 |
Auto-Vertical Feed Range of Grinding Head (total 12 levels) | mm | 0.005~0.1 |
Auto-Vertical Feed interval time of Grinding Head (total 4 levels) | s | 0~9 |
displacement of grinding-head per step of electronic handwheel | mm | 0.005 |
Rapid Up-and-Down Speed of the Grinding Head | mm/min | 150 |
Power of the Grinding Head Motor | kw | 45(55) |
Machine Weight | t | 14 |
Overall Machine Dimensions(L×W×H) | mm | 4510×2100×2750 |
Parallelism of Machined Surface to Base Surface | mm | 0.015/1000 |
Roughness of Work Piece Surface | μm | Ra≤1.25 |
