MK-1332B CNC Cylindrical Grinding Machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shenzhen
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Surface Grinding Machine
CNC or Not	Normal	Max. Grinding Diameter	200mm
Model Number	MK-1332	Voltage	380v
Power(W)	4kw	Dimension(LWH)	220016001800mm
Weight	2300kg	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Feature

The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with

high performance-to-price ratio.

The electrical system is controlled by KND 100Ti ,and the executive system is driven by the

CNC servo driver and servo motors.Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by the servo motors via the ball screw.

transmission.With the touch screen and human-machine interface.

The machine is easy to operate.With other system and configured online automatic measuring instrucment can also be based on user needs.

Technical parameter

Model	MK1320-520	MK1320-750	MK1332-750	MK1332-1000	MK1332-1500
Max. swing over bed	220mm		360mm
Distance between centers	550mm	780mm	780mm	1050mm	1550mm
center height	125mm		180mm
Max.grinding diameter	Φ200mm		Φ320mm
Max. workpiece weight	60kg		150kg
CNC system	FANUC/SIEMENS/MITSUBISHI
Size of grinding wheel	Φ400×40×203mm		Φ500×50×203mm
Wheel peripheral speed	38m/min-45m/min
Grinding wheel frame Full stroke	150mm		250mm
X-axis minimum feed amount	0.002mm
Z-axis rapidly feed speed	8m/min		6m/min
Max.swivel angle of the table	-5°~+7°	-3°~+7°	3°~7°
Maximum travel of working table	550mm	780mm	780mm	1050mm	1550mm
Headstock Spindle taper Morse	4#or3#		4#or5#
Headstock speed (stepless speed regulation )	28~300r/min
Headstock rotation angle	-30°~90°
Taper of tailstock quill (Morse)	4#or3#		4#or5#
Tailstock center stroke	25mm		40mm
Grinding wheel motor power	4kw		5.5kw
Headstock motor power	0.75kw		1.5kw
Oil Pump motor power	0.75kw		0.75kw
Cooling pump motor power	0.125kw		0.2kw
Servo motor power	Z-axis 1.5kw X-axis 1.5kw		Z-axis 2kw X-axis 2kw
Total power of machine	About 10kw		About 13kw
circular degree	0.002mm
roughness	0.32Ra
Machine weight	2300kg	2500kg	3500kg	4300kg		4800kg
Overall dimensions(m)	2.2×1.6×1.8	2.6×1.6×1.8	2.8×1.77×2	3.3×1.77×2		4.2×1.77×2

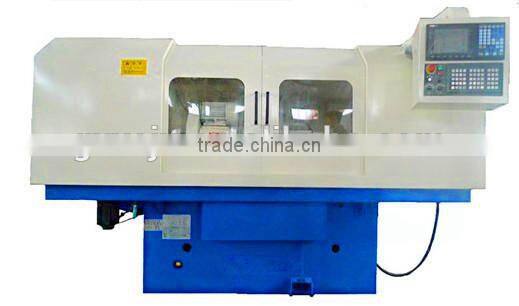

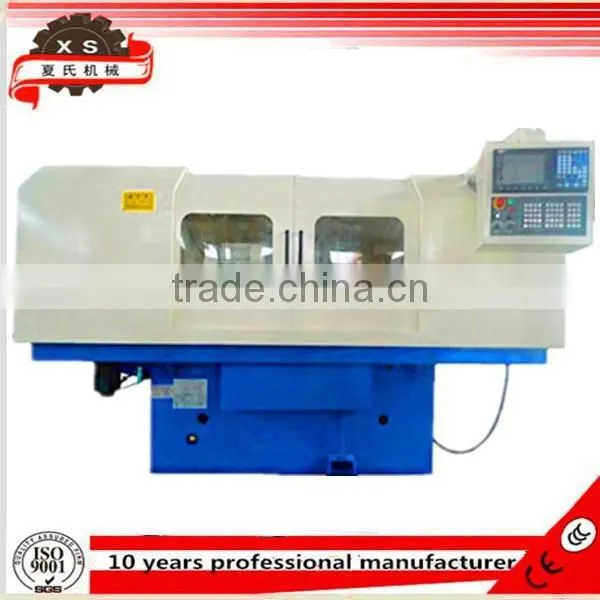

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
