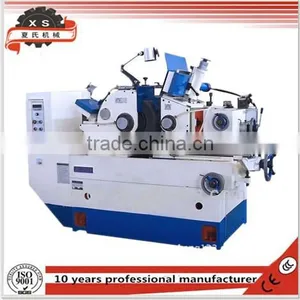

YJ-1206S high precision metal centerless grinding machine price list
- 300 Set / Sets per Month
- Shenzhen Shanghai Guangzhou Qingdao
- T/T L/C D/P D/A Credit Card
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | New | Type: | Other, centerless grinding machine | CNC or Not: | Normal |
Max. Grinding Diameter: | 35mm | Max. Grinding Length: | 120mm | Place of Origin: | Guangxi, China |
Brand Name: | Xiashi | Model Number: | YJ-1206S | Voltage: | Customer's Requirement |
Power(W): | 5.5KW | Dimension(L*W*H): | 1800*1400*1450mm | Weight: | 1700kg, 1700kg |
Certification: | CE ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
YJ-1206S high precision metal centerless grinding machine price list
Features
1 high precision
2 grinding dia. 1-35mm
3 roundness 0.001mm
4 cylindricity 0.0015mm
5 roughness 0.2Ra
Specification
Type | YJ-1206S |
Grinding dia. | 1-35mm |
Grinding wheel size | 305*150*120mm |
Adjusting wheel size | 205*150*90mm |
Grinding wheel rotate speed | 1950r/min |
Adjusting wheel rotate speed | 0-250r/min |
Grinding wheel motor | 5.5kw |
Adjusting wheel motor | 1.1kw |
Oil pump motor | 0.75kw |
Cooling pump motor | 0.12kw |
Adjust wheel feed the handwheel | 3.5mm/0.02mm |
Worktable feed the handwheel | 6mm/0.05mm |
Worktable fine turn handwheel | 0.15mm/0.001mm |
Adjust the feed handwheel | 1.5mm/0.01mm |
Adjusting wheel angle of inclination | -3°—5° |
Swing angle of the adjust wheel | -5°—+5° |
Roundness | 0.001mm |
Cylindricity | 0.0015mm |
Roughness | 0.2Ra |
Size | 1800*1400*1450mm |
Weight | 1700kg |

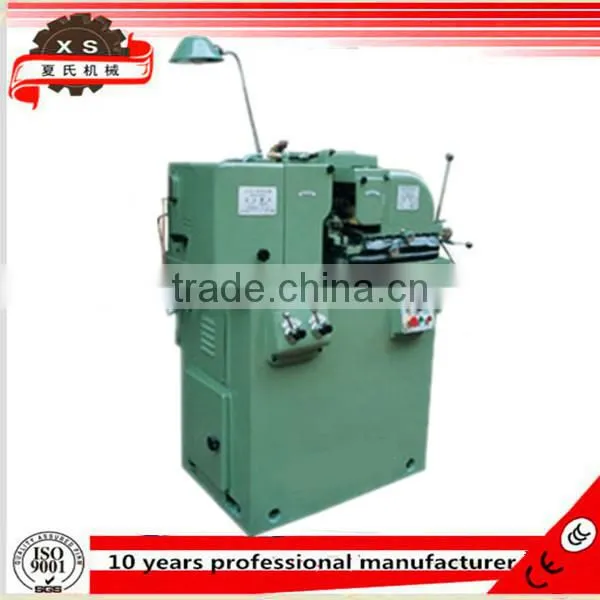

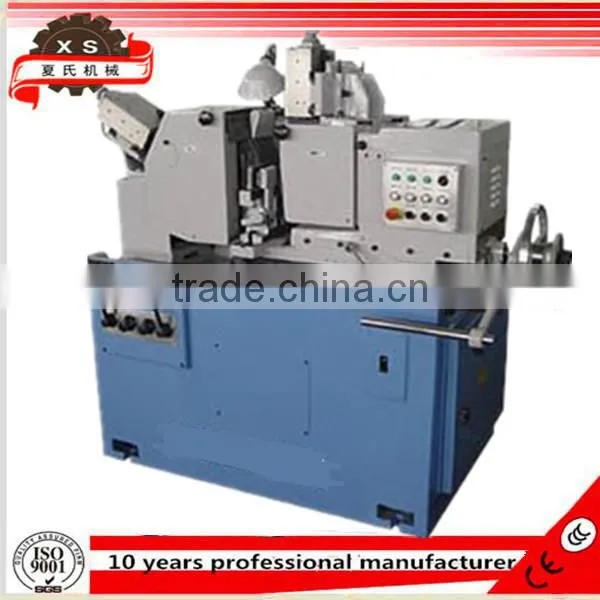

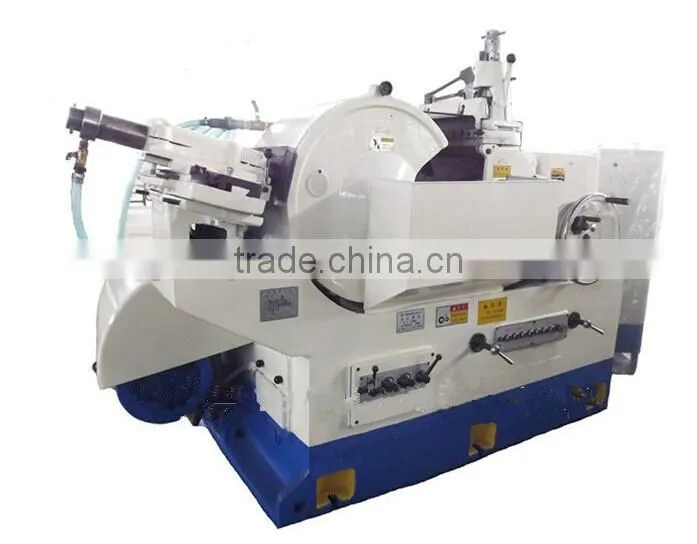

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
