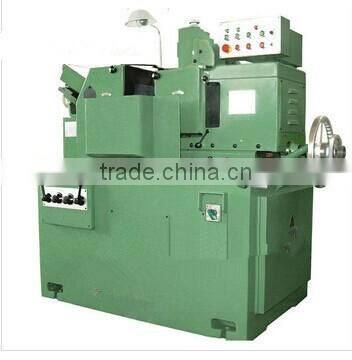

Small-size Metal Centerless Grinder MT1040A
- shenzhen
- T/T D/P D/A Credit Card
You May Like
-
MK-1332B CNC Cylindrical Grinding Machine
-
YJ-1206S High Precision Metal Centerless Grinding Machine Price List
-
M215A Small-size Internal Grinding Machine Price With Low Price
-
Surface Grinding Machine With Rotary Work Table M74100K-2
-
Centerless Grinding Machine M1040B With Low Price
-
Surface Grinder, Surface Grinding Machine M7140
Product Details
| Condition | New | Type | Cylindrical Grinding Machine | |
| CNC or Not | Normal | Max. Grinding Diameter | 2-40mm | |
| Max. Grinding Length | 120mm | Model Number | MT1040A | |
| Voltage | 380v | Power(W) | 9.14kw | |
| Dimension(L*W*H) | 1550*1300*1485mm | Weight | 2000kg | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
High quality and favourable price.
Nice after-sales service.
Offer OEM service.
Features
1 manually control
2 small size
3 roundness: 0.002mm
4 cylindricity: 0.003mm
5 roughness: 0.32Ra
Technical parameter
Grinding Dia. | Through-feed grinding(mm) | 2-40 |
Plunge-feed grinding(mm) | 7-40 | |
Max. length to be ground | Through-feed grinding(mm) | 120 |
Plunge-feed grinding(mm) | 120 | |
Grinding wheel specification(mm) | PSA350*125*127 | |
Guide wheel specification(mm) | PSA250*125*75 | |
Wheel speed(r/min) | 1870 | |
Guide wheel speed(r/min) | 20-180 | |
Guide wheel rotational angle | In vertical plane | -2°-+4° |
In horizontal plane | 0°- +3° | |
Feed amount of hand wheel/division (mm) | 0.002 | |
Feed amount of dresser/division (mm) | 0.01 | |
Distance from the connecting line of grinding/guide wheel to bracket surface(mm) | 190 | |
Distance from center of wheel- guide wheel to ground | 985mm | |
Total power(kw) | 9.14 | |
Machine weight (kg) | 2000 | |
Machine size( L*W*H )(mm) | 1550*1300*1485 | |
Machine working accuracy | Roundness (mm) | 0.002 |
Cylindricity (mm) | 0.003 | |
Roughness (Ra) | 0.32 | |
Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
