small size metal centerless grinding machine price MT1040A
Features
1 manually control
2 small size
3 roundness: 0.002mm
4 cylindricity: 0.003mm
5 roughness: 0.32Ra
Specification
Grinding Dia. |
Through-feed grinding(mm) |
2-40 |
Plunge-feed grinding(mm) |
7-40 |
|
Max. length to be ground |
Through-feed grinding(mm) |
120 |
Plunge-feed grinding(mm) |
120 |
|
Grinding wheel specification(mm) |
PSA350*125*127 |
|
Guide wheel specification(mm) |
PSA250*125*75 |
|
Wheel speed(r/min) |
1870 |
|
Guide wheel speed(r/min) |
20-180 |
|
Guide wheel rotational angle |
In vertical plane |
-2°-+4° |
In horizontal plane |
0°- +3° |
|
Feed amount of hand wheel/division (mm) |
0.002 |
|
Feed amount of dresser/division (mm) |
0.01 |
|
Distance from the connecting line of grinding/guide wheel to bracket surface(mm) |
190 |
|
Distance from center of wheel- guide wheel to ground |
985mm |
|
Total power(kw) |
9.14 |
|
Machine weight (kg) |
2000 |
|
Machine size( L*W*H )(mm) |
1550*1300*1485 |
|
Machine working accuracy |
Roundness (mm) |
0.002 |
Cylindricity (mm) |
0.003 |
|
Roughness (Ra) |
0.32 |
|

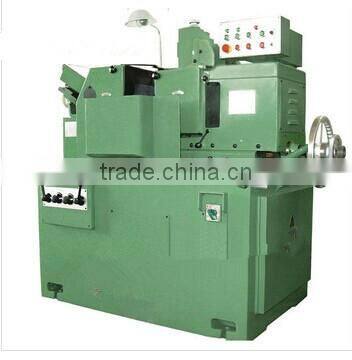

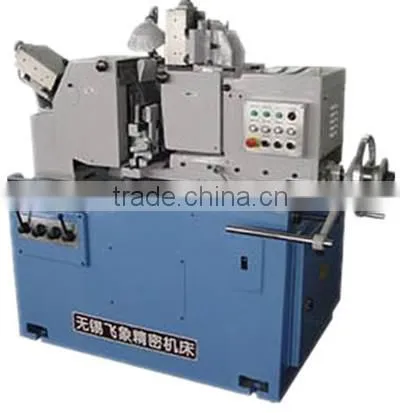

Picture for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
