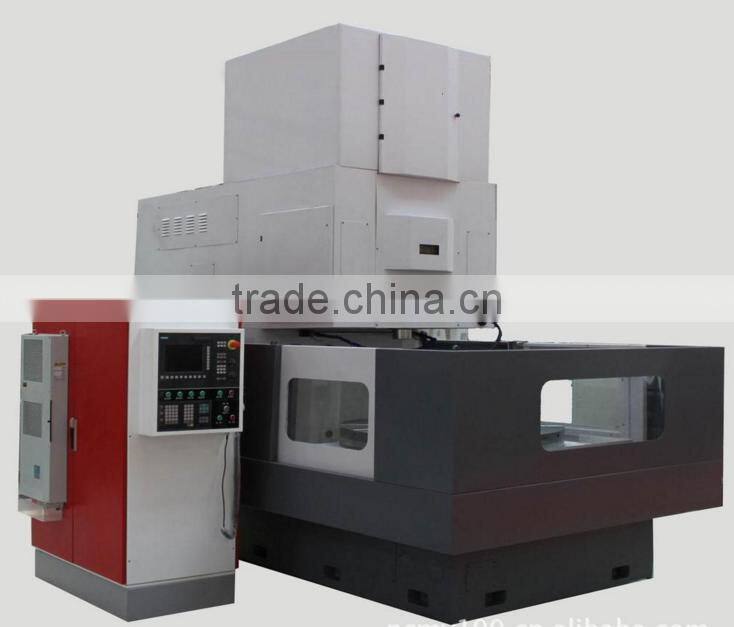

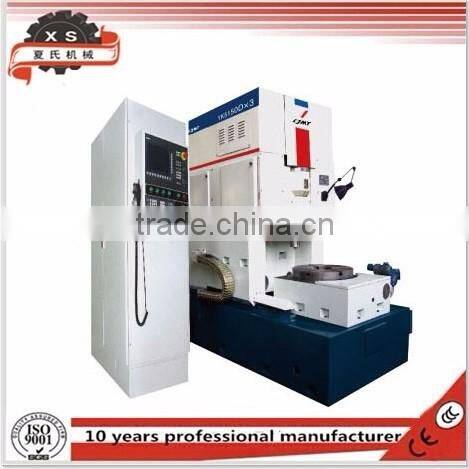

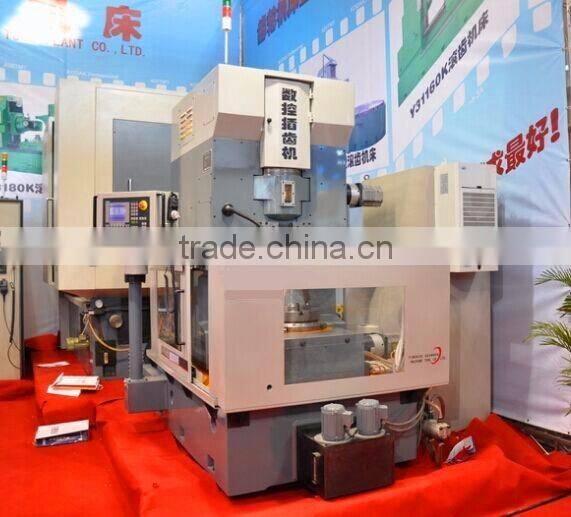

Y5150K High Performance CNC Gear Making Machine From China

FOB Price

US$ 5,000 - 50,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gear Hobbing Machine
CNC or Not	CNC	Place of Origin	Guangxi, China
Model Number	Y5150K	Voltage	220V/380V
Power(W)	15kw	Dimension(LWH)	2120X1475X2275mm
Weight	6000kg	Certification	ISO9001 CE
After-sales Service Provided	Engineers available to service machinery overseas

Features

1.The gear shaping machine is used to make gear that diameter is below 500mm

Notification will not be made if the products' colour and parameter change,and product is based solel on latest sales sample.

2.Y5150K Gear Shaping Machine is designed for cutting cylindrical disc-type spur gear, cluster gear,internal gear, external gear, and gear segment.

3.Upon special request, the machine can be provided with optional attachments for cutting gear rack,shaft gear, helical gear and little tapered gear.

4.The machine is featured in smooth running .low noise, versatile function, nice adaptability, easy set-uand simple operation.

5.Thus being well-suited for mass batch production of rears adopted on automobile

tractors.

6.The machine can also be used for small batch and job-lot gear production.

Specification

Model	Y5150K
Max work piece dia. external gear	500mm
Max work piece dia. internal gear	600mm
Max module	8mm
Max stroke length of cutterspindle	120mm
Max width of teeth	100mm
Distance from cutter center to worktable center	0-320mm
Dia. of work table face	380mm
Dia. of work table bore	80mm
Rough	80, 108, 144,192, 240, 320, 386,515 rpm
Precise	108, 165,192, 292, 320 480,515,780 rpm
Circular feed (cutter dia. is100mm)	10.-0.56mm
Cutter spindle back-off at its up-most position	0.4-0.5
Drive motor power	15Kw
Overall dimensions (L x W xH)	2120X1475X2275
Net Weight	5000
Gross Weight	6000kg
