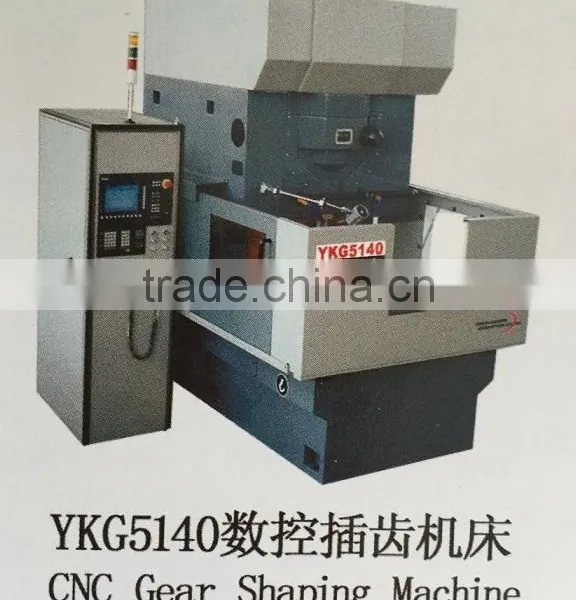

YKG5140 gear shapping machine CNC gear shaper
- 30 Set / Sets per Month
- Shenzhen
- T/T
- Band Saw Blades
- Band Saw Machine
- G800 6-axis CNC Gear Hobbing Machine CNC Machine Gear Cutting Gear Cutting CNC Machine
- New G800 CNC Gear Hub Machine with Automation Loading/unloading Solution 8-10M Hobbing Machine
- China YQ31250E gear hobbing machine OME
- Y31160 gear hobbing machine for sale from dalian zhuanghe
Product Details
Condition: | New | Type: | Gear Shaping Machine | CNC or Not: | CNC |
Place of Origin: | Guangxi, China | Brand Name: | XIASHI | Model Number: | YKG5140 |
Voltage: | 220V/380V | Power(W): | 11kw | Dimension(L*W*H): | 2838x1780x2926mm |
Weight: | 10.8t | Certification: | ISO9001CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Features
1.Mainly used for large and medium-sized inside and outisde the cylinder gear, helical gear(special annex) machining.
2.Upon special request, the machine can be provided with optional attachments for cutting gear rack, shaft gear, helical gear and little tapered gear.
3. The machine is featured in smooth running, low noise, versatile functions, nice adaptability, easy set up and simple operation.
N.O | Item | Data | |
1 | Max Process Dia | external gear | Dia 400mm |
internal gear | Dia400mm | ||
2 | Max module | 10mm | |
3 | Max Process Width | 82mm | |
4 | Max Stroke Length | 100mm | |
5 | Stroke n.o of gear shaper cutter spindle | 100-1000str min | |
6 | Distance from end surface of gear shaper spindle to work table | 170-295mm | |
7 | Distance from gear shaper cutter center to worktable center | 130-295mm | |
8 | Specs of gear shaper cutter | Inner hole | 31.75mm |
9 | root circle | >105mm | |
10 | Work Table Dia | 520mm | |
11 | Aperture of work table spindle | 50mm | |
12 | bidirectional cutter back-off offset amount | ±20mm | |
13 |
radial back-off amount of cutter spindle at highest position | 0.5mm | |
14 | radial feeding of post (Stepless Adjstable) | 20-580mm | |
15 | Fast radial feeding of post | 2500mm | |
16 | Main Motor | Power | 11KW |
Speed | 1500rpm | ||
17 | C Servo Motor( circular motion) | Power | 27 |
Speed | 3000rpm | ||
18 | B Servo Motor(divided teeth) | Power | 27 |
Speed | 3000rpm | ||
19 | X Axis Servo Motor( Raidal) | Power | 36 |
Speed | 3000rpm | ||
20 | Hydraulic Motor | Power | 3KW |
Speed | 1500rpm | ||
21 | Lubrication Motor | Power | 1.5KW |
Speed | 1500rpm | ||
22 | Cooling Pump Motor | Power | 0.6x2KW |
Speed | 2900RPM | ||
23 | chip cleaner Motor
| Power | 0.1KW |
Speed | 1400RPM | ||
24 | Machine Size |
| 2838x1780x2926mm |
25 | Machine Weight |
| 10.8T |
We will pack the machine with standard export wooden case ,ensure the transport safety
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
A: warranty is one year, but we will offer lifetime service for machine.
