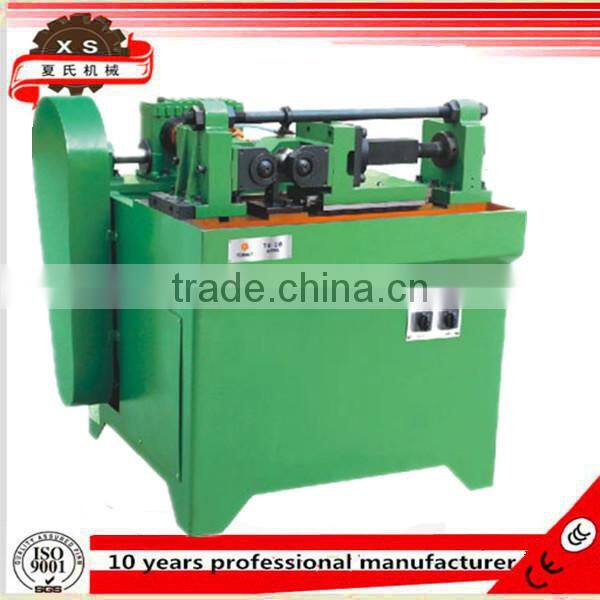

TB-20 Thread Roller Thread Rolling Machine for Metal Steel Iron
US$ 1,000 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
bars,solid pipe,solid tube
Production Capacity:
100%
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Roll Forming Machine Thread Forming Screws Threading MachineUS$ 100 - 10,000MOQ: 1 Set -
Anchor Bolt Making Machine Concrete Iron Rod Machine TB-3TGTUS$ 500 - 50,000MOQ: 1 Set
-
TB-40S Manufacture Rebar Thread Rolling Machine Threaded Rods Making MachineUS$ 800 - 1,000MOQ: 1 Set
-
Rollers Thread Rolling Machine for Screw Making Bolts Thread TB-50SUS$ 100 - 1,000MOQ: 1 Set
-
Hydraulic Thread Rolling Machine Screw Manufacture Machine TB-3SUS$ 500 - 8,000MOQ: 1 Set
Condition
New
Application
bars,solid pipe,solid tube
Production Capacity
100%
Place of Origin
Yunnan, China
Brand Name
XIASHI
Model Number
TB-20
Voltage
380V
Power(W)
7.5kw
Dimension(L*W*H)
1100*1100*1300
Weight
600kg
Certification
ISO 9001-2008, CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Features:
1.Eccentric-type driving, high rolling precision, stability and high durability.
2.Drove by worm gear and rod, connected by imported cardan joint, the work performance is high.
3.Adopt high-strength square-rail type design, and the rail is imposed with heatment and grin ding to improve the stability.
4.Suitable for the screw with small pitch.
Technical Parameter of Tobest TB-20
| Work piece diameter | φ2-φ16/mm | |||||||
| Range of pitch rolled | 0.4-2.0P | |||||||
| length of thread rolled | Fixed and rolling through for option | |||||||
| Spindle speed | 16/25/40/63rpm (variable speed) | |||||||
| Outside diameter of rolling die | φ100-φ118mm | |||||||
| Inside diameter of rolling die | φ50.5mm | |||||||
| Thickness of rolling die | 50mm | |||||||
| Distance between the roller shaft | 100-135mm | |||||||
| Output(pcs/min) | 4-25(pcs/min) | |||||||
| Main power motor | 3HP(2205W) | |||||||
| Hydraulic motor | 2HP | |||||||
| Max rolling pressure | 6T | |||||||
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
