Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > Floor Type Boring and Milling Lathe Machine TX6920

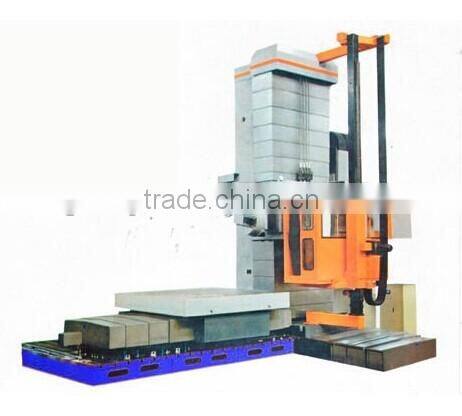

Floor Type Boring and Milling Lathe Machine TX6920

Name: Floor Type Boring and Milling Lathe Machine TX6920
Brand: xiashi
SKU: 140989448
Availability: InStock

Guangxi Xiashi Machinery Equipment Co., Ltd.

Floor Type Boring and Milling Lathe Machine TX6920 thumbnail-1

Floor Type Boring and Milling Lathe Machine TX6920 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

CNC

Place of Origin:

Guangxi, China

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not CNC

Place of Origin Guangxi, China

Brand Name xiashi

Model Number TX6920

Weight 90 T

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Specifications

c lathe machine

2.Boring bar diameter:200mm

3.Section of ram:480*520mm

4.Reasonabe price

Main Technical specifications of Floor-type Boring-milling lathes

boring spindle diameter	200mm
Milling spindle diameter	280mm
spindle taper	metric 100
Boring spindle speed	3-700rpm
Section of ram	480*520mm
(W)boring spindle travel	1200mm
(Z)ram stroke	1000mm
(Y)Up and down travel of spindle box	3200mm
upright column back and forth stroke(X)	5500mm
ram feed speed	1~1000mm/min
specification
Boring axis feed speed	1~1000mm/min
Upright front back feed speed	2~1000mm/min
Boring and milling head feed speed	2~1000mm/min
Main motor power	55KW
Power of feed motor (X/Y/Z/W)	15/11/11KM
max. output torque of boring and milling axis	10800N.m
Spindle axial force	55000N
weight	90T

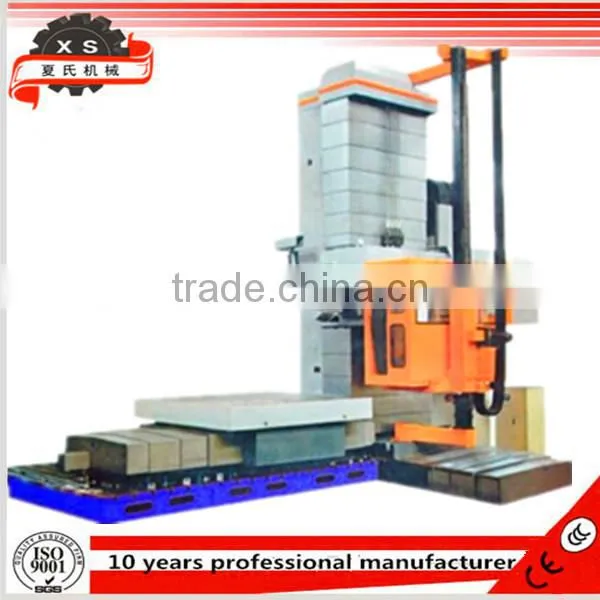

Detailed pictures for your reference

If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
