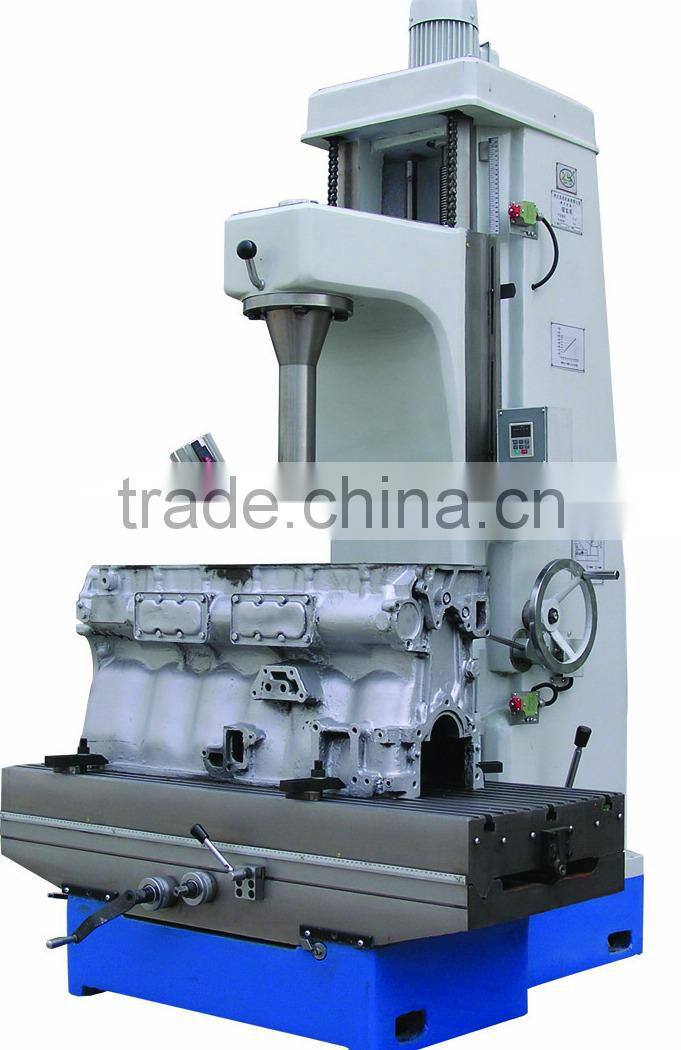

Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > Motorcycle Vertical Cylinder Boring Machine TG18A/B
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Model Number:
TG18A/B
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cylinder Body Bushing Boring Machine T8120D*20US$ 2,000 - 2,500MOQ: 1 Set -
China Manufacture Profect and High Precision Motorcycle Cylinder Boring Machine T8016NegotiableMOQ: 1 Set
-
T8016 Cylinder Boring MachineNegotiableMOQ: 1 Set
-
Cylinder Boring Machine for Reboring Engine Cylinders of Automobiles Motor Cycles T807US$ 1,500 - 2,000MOQ: 1 Set
-
Cylinder Boring Machine for Sale T807NegotiableMOQ: 1 Set
Condition
New
CNC or Not
Normal
Model Number
TG18A/B
Voltage
As request
Power(W)
3kw
Dimension(L*W*H)
2000*1225*2120mm
Weight
2100kg
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
Introduction
The machine is mainly used for boring the cylinder hole of internal combustion engine and the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
Technical parameter
| Boring Diameter | Φ58-Φ180mm |
| Max Boring Depth | 450mm |
| Max Travel Of Spindle | 700mm |
| Overall Dimensions | 2000×1225×2120mm |
| Packing Dimensions | 1460×1400×2380mm |
| Net/Gross Weight | 2100/2300kg |

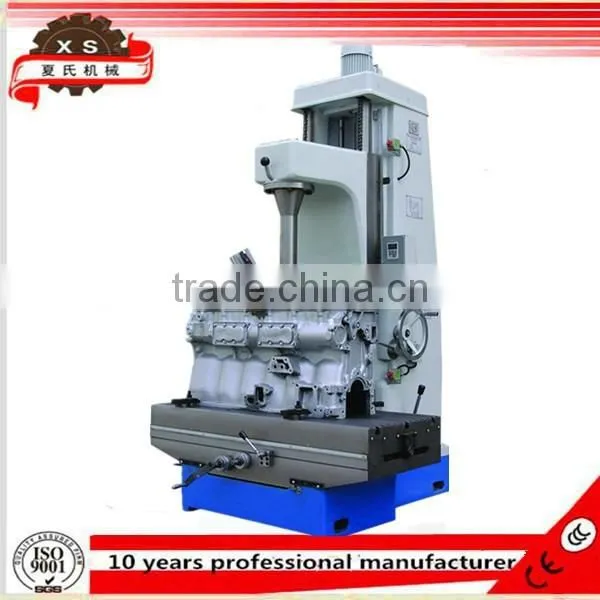

Detailed pictures for your reference
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
