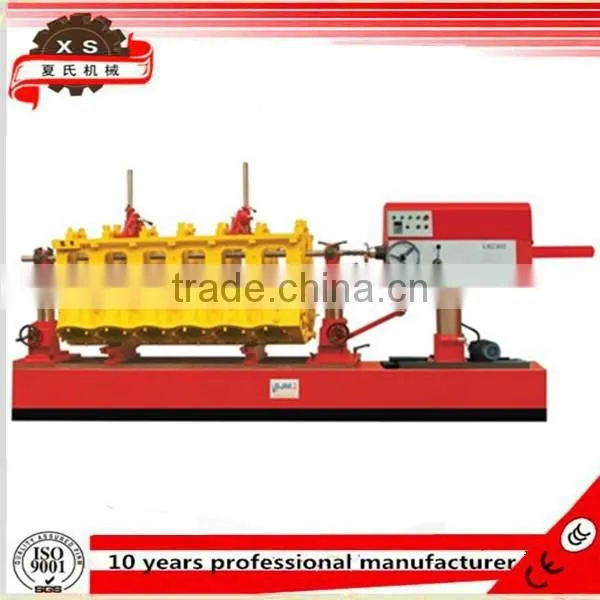

Application
It used for boring main shaft and camshaft bushing hole of the cylinder body.
Structure characters
1,With long travel of tool feeding,which can improve the work efficiency and coxial of bored bushing.
2,The boring bar is special heat treatment,which can improve the rigidity and hardness of the boring bar and working precsion availably.
3,The auto-feeding system adopts stepless adjusting,suits for processing all kinds of materials and hole diameter of the bushing.
4,With special measuring device,it is easily to measure the workpiece.
Technical parameter
Range of bored hole diameter | φ36-φ200mm | |
Max.length of cylinder body | 2000mm | |
Main shaft max elongation | 300mm/min | 400mm/min(T8120Ex20) |
Main shaft rotaing speed | 200.275.360 480.720.960 | (T8120E*20) |
Feeding speed | 0-180mm/min(sin clase) | |
Motor power | 0.75/1.1kw | |
Dimension(L x W x H) | 3900x700x1500mm | |
| | |
| Certening meter | Cutter correcting meter | Calibre meter |
| | |
| Enlarge tool plate (φ200) | Enlarge tool plate (φ150) | Special cutter |
| | |
| Boring sleeve | Certening taper sleeve |
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
