GD5360 / 200 Vertical metal cutting Band sawing machine
Main feature
The company's own design and manufacture of tackle vertical band sawing machine through
constant technological innovation and development, has made a whole new breakthrough.
Workpiece fixed, saw frame movement, small footprint. . Saw frame for mobile use hydraulic
feed,stepless speed regulation.
Stroke guide rail adopts imported linear guide rail, positioning accuracy, stable performance.
Tungsten alloy adjustable clamp pieces to ensure cutting accuracy. Easy to operate, energy
efficient, suitable for cutting steel cutting die blanks, plates, forgings.
Techinical parameter
Model | GD5360 / 200 | |
Cutting range | throat depth | 600 mm |
| Stroke | 2000 mm |
| Height | 500 mm |
cutting speed | stepless speed regulation | |
Specification of band saw | 5400×41×1.3 | |
Comprehensive cutting accuracy | ±0.20mm | |
Main motor power | 4.75kw | |
cooling pump | 0.075 | |
Clamping System | plate pinch | |
Feeding modes | Auxiliary roller track | |
Machine overall dimensions (L×W×H) | 3600×1800×2300 | |
Machine weight | 2200kg | |

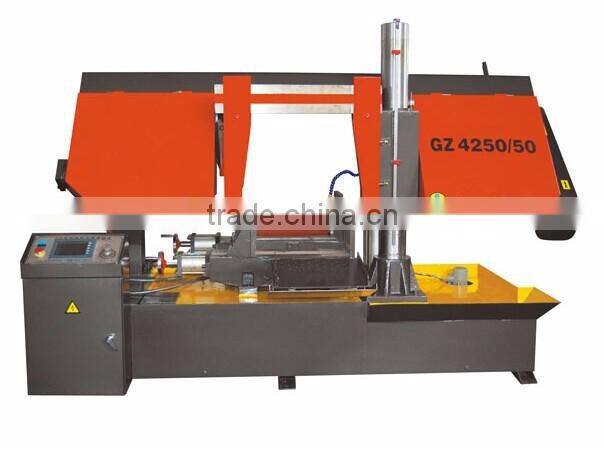

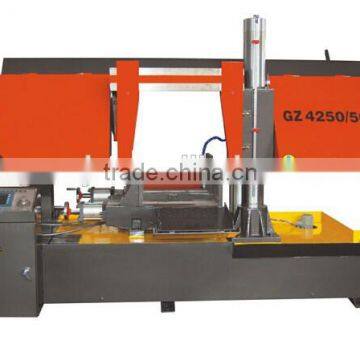

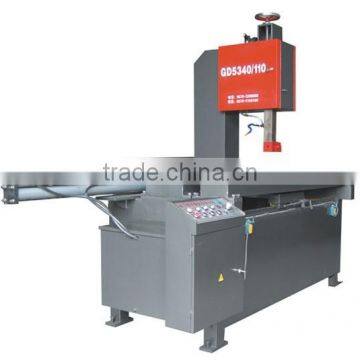

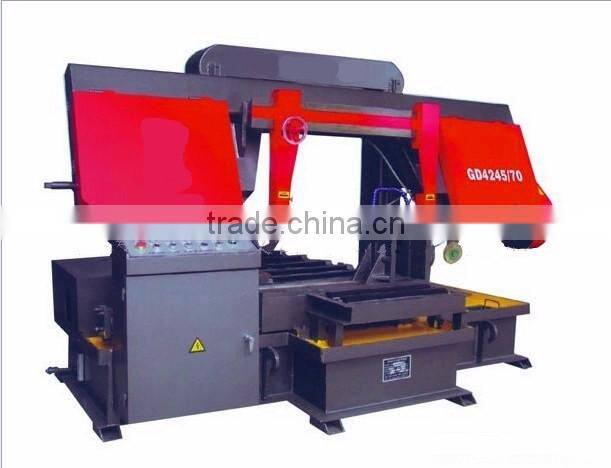

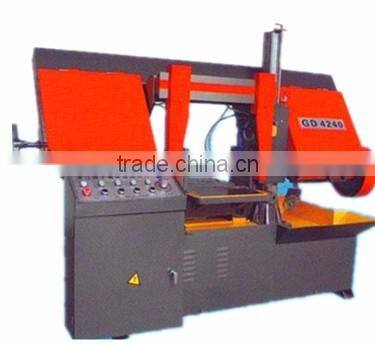

Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
