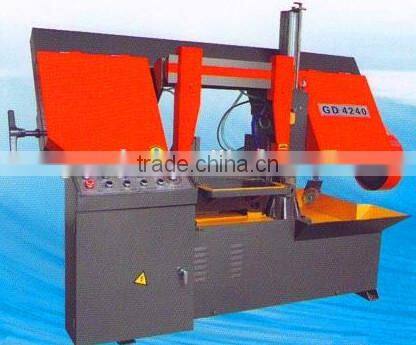

NEW Table Panel band Saw machine Metal Cutting GD4240 engineers available to service machinery overseas
Description
1.This machine adopts advanced single column structure. saw frame glides on one column as
forficiform.
2.It is a high efficiency and energysaving machine. Comparing with traditional hack sawing
machine, the width of saw kerf is less than 50%, and the energy consuming is only 40% now,
but the cutting efficiency is increased 4-5 times higher.
3.It uses 50 degree inclined angle between saw frame and worktable, the turning angle of saw
blade is very small and extend the lift.
4.The main transmission of machine adopts worm wheel and worm speed-down system. it is
suitable to cut any material of workpiece. Ensure dynamic torque is big and machine noise abatement.
5.The saw blade use ball bearing and horniness alloy ensure the right running position and get
the high cutting accuracy.
6.It can clamp the workpiece by mandrel or hydraulic pressure. If it uses vertical clamp device
that can cut a bundle of workpiece.
Technical parameter
Model | GD4240/50 |
Max .cutting capacity: | 4000mm |
Cutting speed | 25/45/75 m/min |
square stock | 500W×400H |
Specification of blade saw | 4600×41×1.3 mm |
Clamping System | hydraulic vice |
Comprehensive cutting precision | ±0.20mm |
Power of main motor | 5.13kw |
Hydraulic motor power | 1.1kw |
cooling pump | 0.075kw |
The main transmission structure | worm gear drive |
Saw blade tensioning method | manual |
Feeding modes | Auxiliary roller track |
Machine overall dimensions(L*W*H) | 2250×1200×1550mm |
Machine weight | 2900kg |
Detailed pictures for your reference
Packing&Delivery&Terms of Payment
We use wooden package to protect the equipment in container.
Why Choose Us?
- We have our own factory and strong production capacity.
- we insist on good quality and have strict quality standards
- The hiring of experienced staff to guarantee high quality.
- Our product can be made as per your requirement .
- 24 hour online communication for you.
- We have more than 6 years of export experience.
FAQ
Q: What information should I let you know, if I want to get a product offer?
A: 1. the size of your work piece
2. the CNC system you preferred if you need CNC type
3. the work piece drawing if you have
Q: How to control the quality of production processes?
A: We have a professional quality inspectors to check on the quality of the finished product.
Q: Is it possible to visit your factory?
A: It is very convenient to visit us and all clients from around the world are highly welcomed.
Q: What’s the MOQ?
A: The MOQ is 1 set.
Q: What’s the quality assurance and service ?
A: We offer one year warranty and 100% quality inspection before shipment. We shall reply your message within 24 hours to solve your problem.
If you have any other requirements for the size,please do not hesitate to contact us,or you can advise us your ideas or thoughts for the machine,we can kindly design for you and communicate with you for the details.
