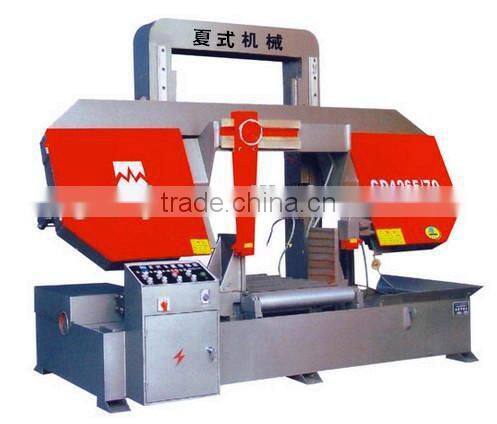

Help CenterGantry Type Metal Band Sawing Machine,band Saw Cutting Machine GD42130/130
Related Products
-
GD4228 Double Cylinder Type Automatic Metal Band Sawing MachineNegotiableMOQ: 1 Set -
Single Column Sawing Machine GD4250NegotiableMOQ: 1 Set
-
Air Hammer Forging Hammer C41-150KGNegotiableMOQ: 1 Set
-
C41-55KG Air HammerNegotiableMOQ: 1 Set
-
250KG Forging Hammer for Sale C41-250NegotiableMOQ: 1 Set
Introduction
Double column, double cylindergantry type band sawing machine series by the company's own design, manufacture. Reasonable structure, stable performance, beautiful appearance, high
production efficiency, is an ideal material for large cutting equipment.
The guide rail adopts imported linear guide rail. Spiral bevel gear reducer main transmission
adopts German technology. The saw beam by a balance type double cylinder working
simultaneously. The feed speed hydraulic control, stepless speed regulation.
The workpiece using vise hydraulic clamping , saw blade using automatic tensioner.saw kerf is narrow, energy efficient, mechanical automatic feeding.
Technical parameter
Model | GD42130/130 |
Max .cutting capacity: | 1300mm |
Cutting speed | 25/45/65 m/min |
square stock | 1300×1300 |
Specification of blade saw(Length x width x thickness) | 67×1.6×11800mm |
Clamping System | hydraulic vice |
Comprehensive cutting precision | ±0.20mm |
Power of main motor | 13.04kw |
Hydraulic motor power | 3.75kw |
cooling pump | 0.075kw |
The main transmission structure | worm gear drive |
Saw blade tensioning method | manual |
Feeding modes | Auxiliary roller track |
Machine overall dimensions(L*W*H) | 4800×2100×3400mm |
Machine weight | 8800kg |
Detailed pictures for your reference
